Toyota COROLLA 前桥壳和差速器 — Figure 4301

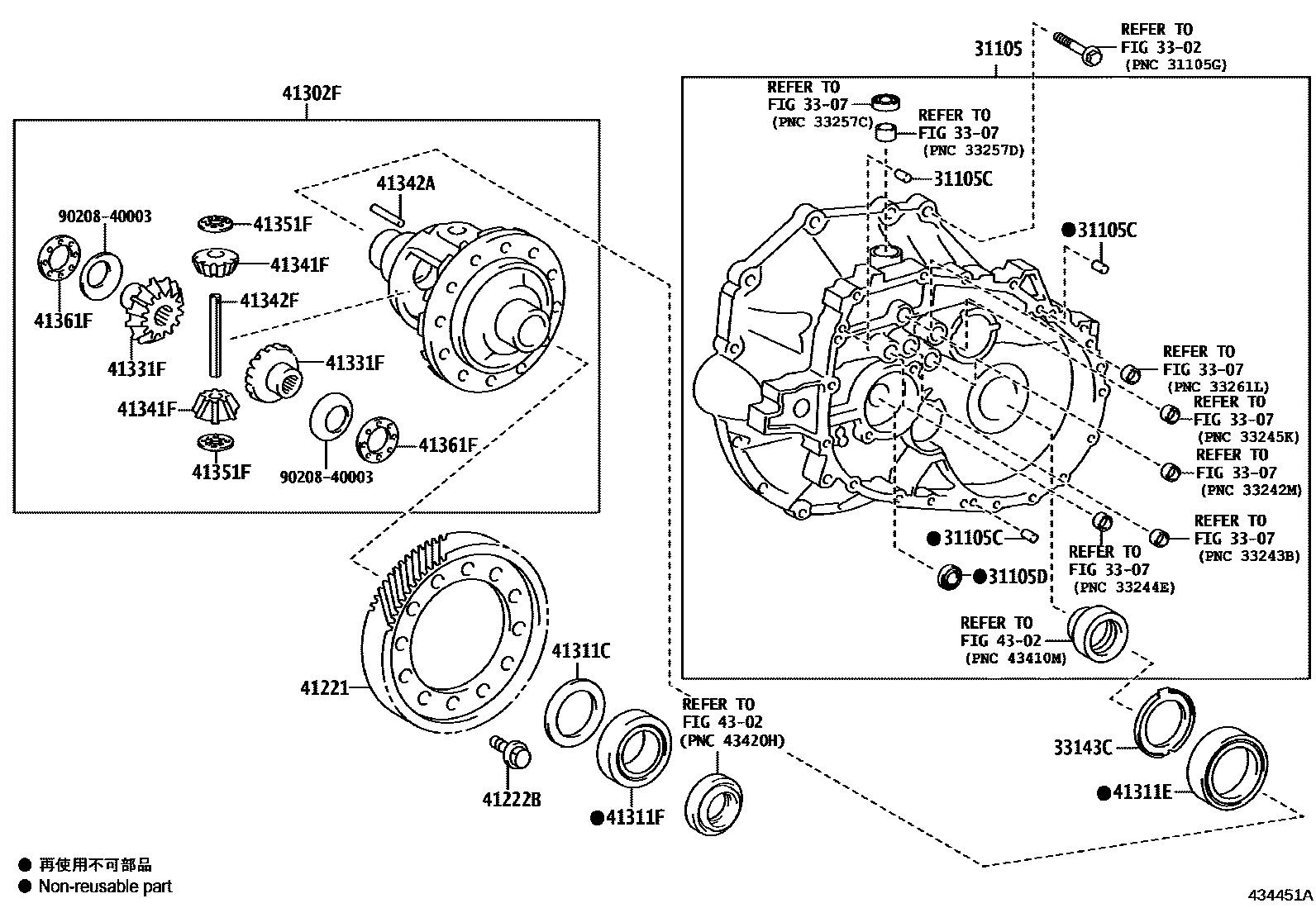

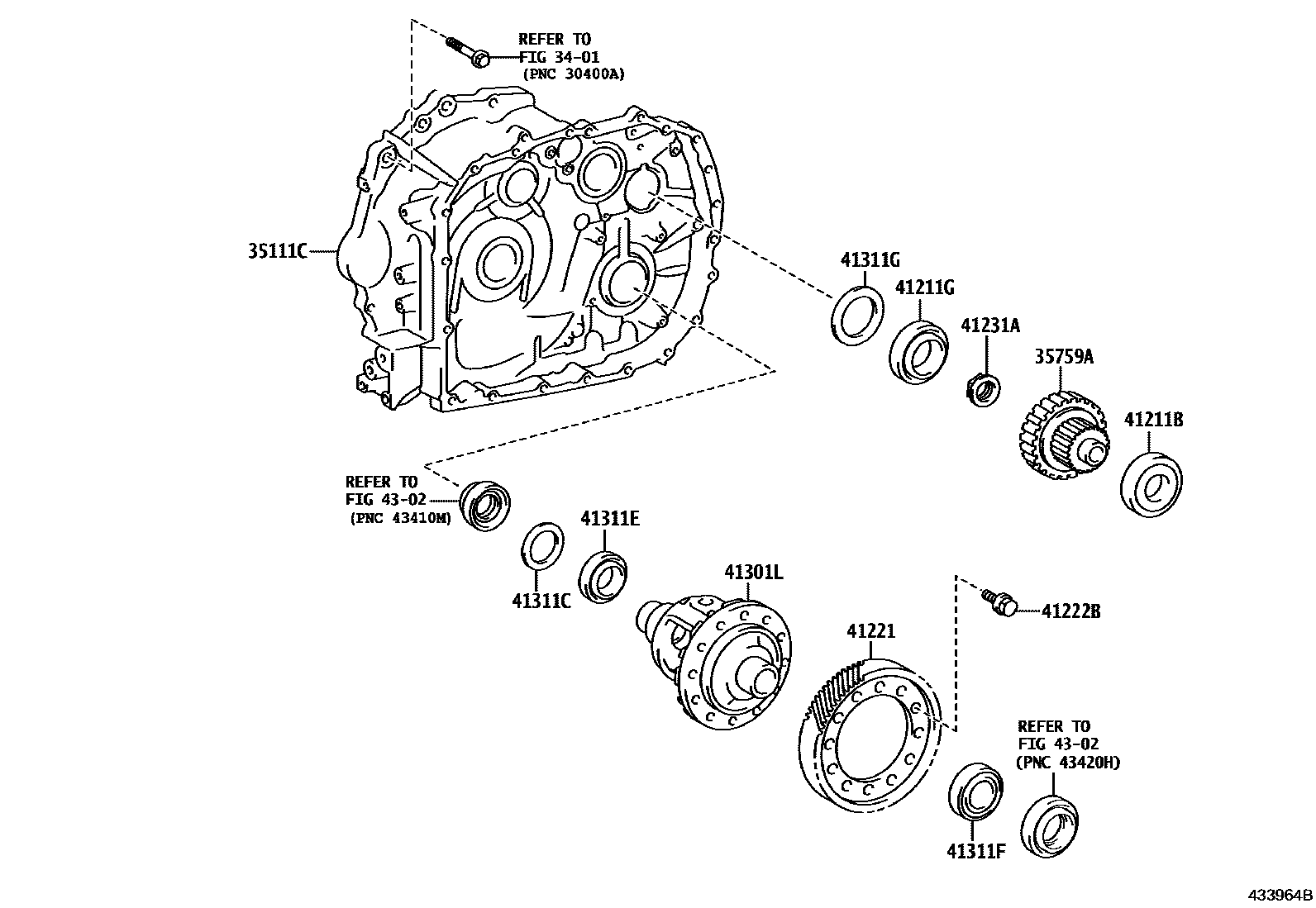

Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105 | Transmission axle housing sub-assembly (MTM) | 31105-12260 |
| 31105C | Direct sales (for transmission axle housing) | 90250-08054 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25030 |
| 33143C | Front differential oil baffle | 33143-20060 |
| 35111C | Transmission axle housing | 35111-12230 · 35111-12231 · 35111-12241 · 35111-12300 · 35111-12310 |
| 35759A | PIGNON, MENANT DEMULTIPLICATEUR | 35705-12050 · 35705-12090 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-29013 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90366-25026 |
| 41221 | Front differential ring gear | 41221-12660 · 41221-12720 · 41221-12730 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12303 · 90105-12379 |
| 41231A | Drive pinion lock nut | 90179-32006 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-12420 · 41301-12450 |
| 41302F | Front differential housing sub-assembly | 41301-12410 |
| 41311C | Rear gasket (for front differential case) | 90564-61095 · 90564-61096 · 90564-61097 · 90564-61098 · 90564-61099 · 90564-61100 · 90564-61101 · 90564-61102 · 90564-61103 · 90564-61104 · 90564-61105 · 90564-61106 · 90564-61107 · 90564-61108 · 90564-61109 · 90564-61110 · 90564-61111 · 90564-61112 · 90564-61163 · 90564-61164 · 90564-61165 · 90564-61166 · 90564-61167 · 90564-61168 · 90564-61169 · 90564-61170 · 90564-61171 · 90564-61172 · 90564-61173 · 90564-61174 · 90564-61175 · 90564-61176 · 90564-61177 · 90564-61178 · 90564-61179 · 90564-66038 · 90564-66039 · 90564-66067 · 90564-66068 · 90564-66069 · 90564-66070 · 90564-66071 · 90564-66072 · 90564-66073 · 90564-66074 · 90564-66075 · 90564-66076 · 90564-66077 · 90564-66078 · 90564-66079 · 90564-66080 · 90564-66081 · 90564-66082 · 90564-66083 · 90564-66084 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-50172 · 90366-57028 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-51007 · 90366-57028 |
| 41311G | Front flat washer (for front differential case) | 90564-44070 · 90564-44071 · 90564-44072 · 90564-44073 · 90564-44074 · 90564-44075 · 90564-44076 · 90564-44077 · 90564-44078 · 90564-44079 · 90564-44080 · 90564-44081 · 90564-44082 · 90564-44083 · 90564-44084 · 90564-44085 · 90564-44086 · 90564-44087 · 90564-44088 · 90564-44089 · 90564-44090 · 90564-44091 · 90564-44092 |
| 41331F | Front differential side gear | 41331-12240 · 41331-21020 |
| 41341F | Front differential planetary gear | 41341-12160 · 41341-21010 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-28010 |
| 41351F | Front differential planetary gear thrust washer | 41351-30060 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-28230 · 41361-28240 · 41361-28250 · 41361-28260 |
