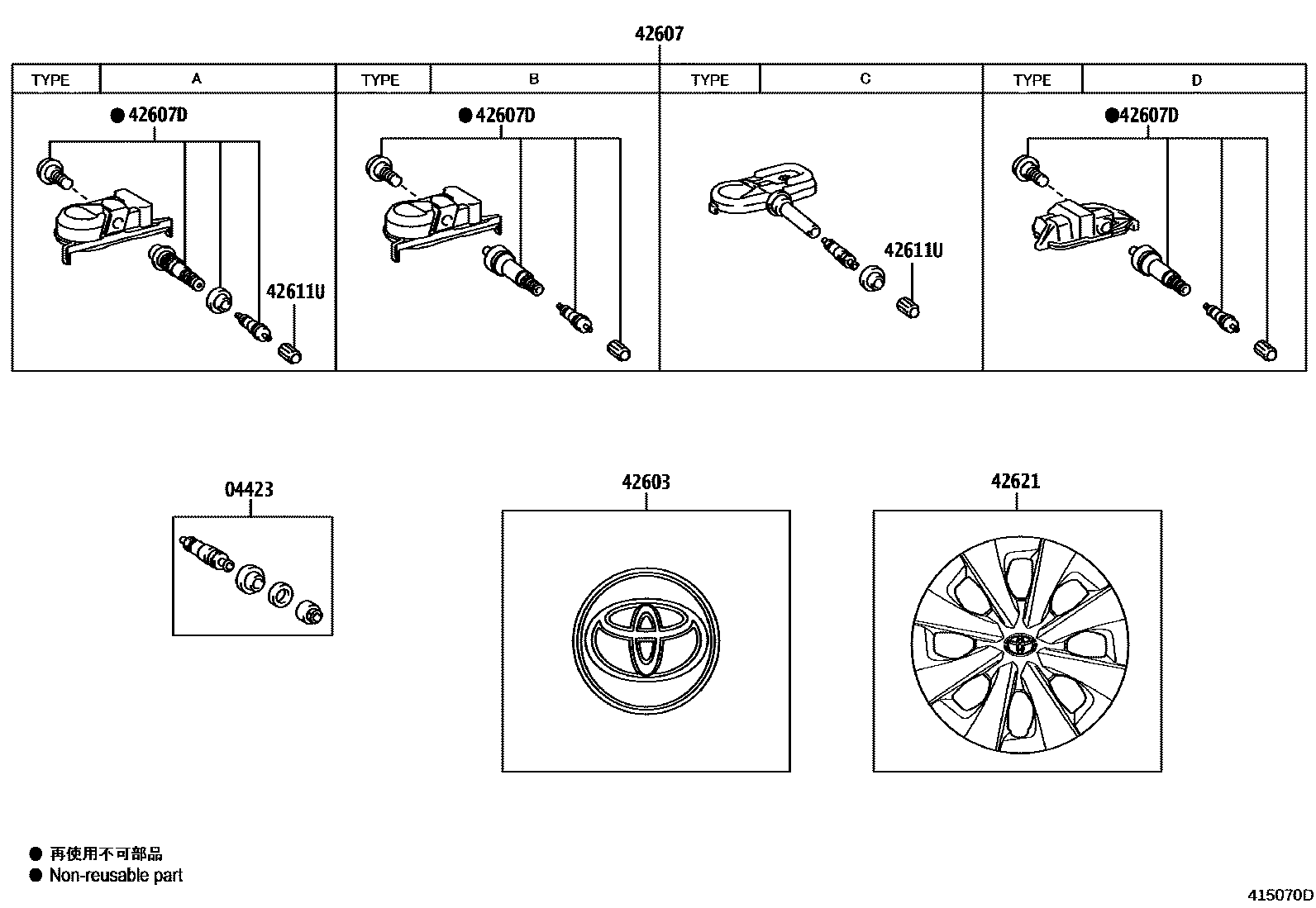

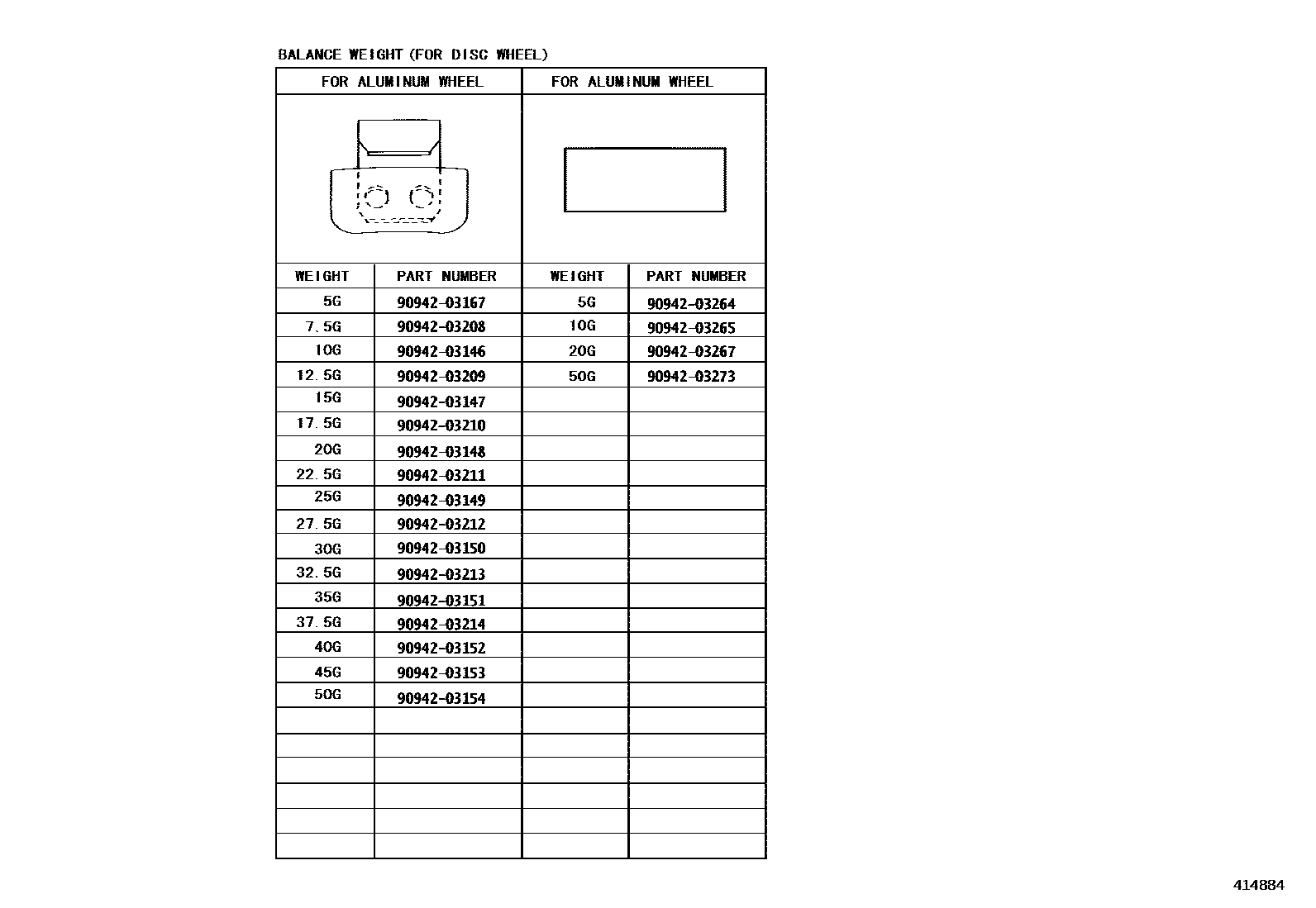

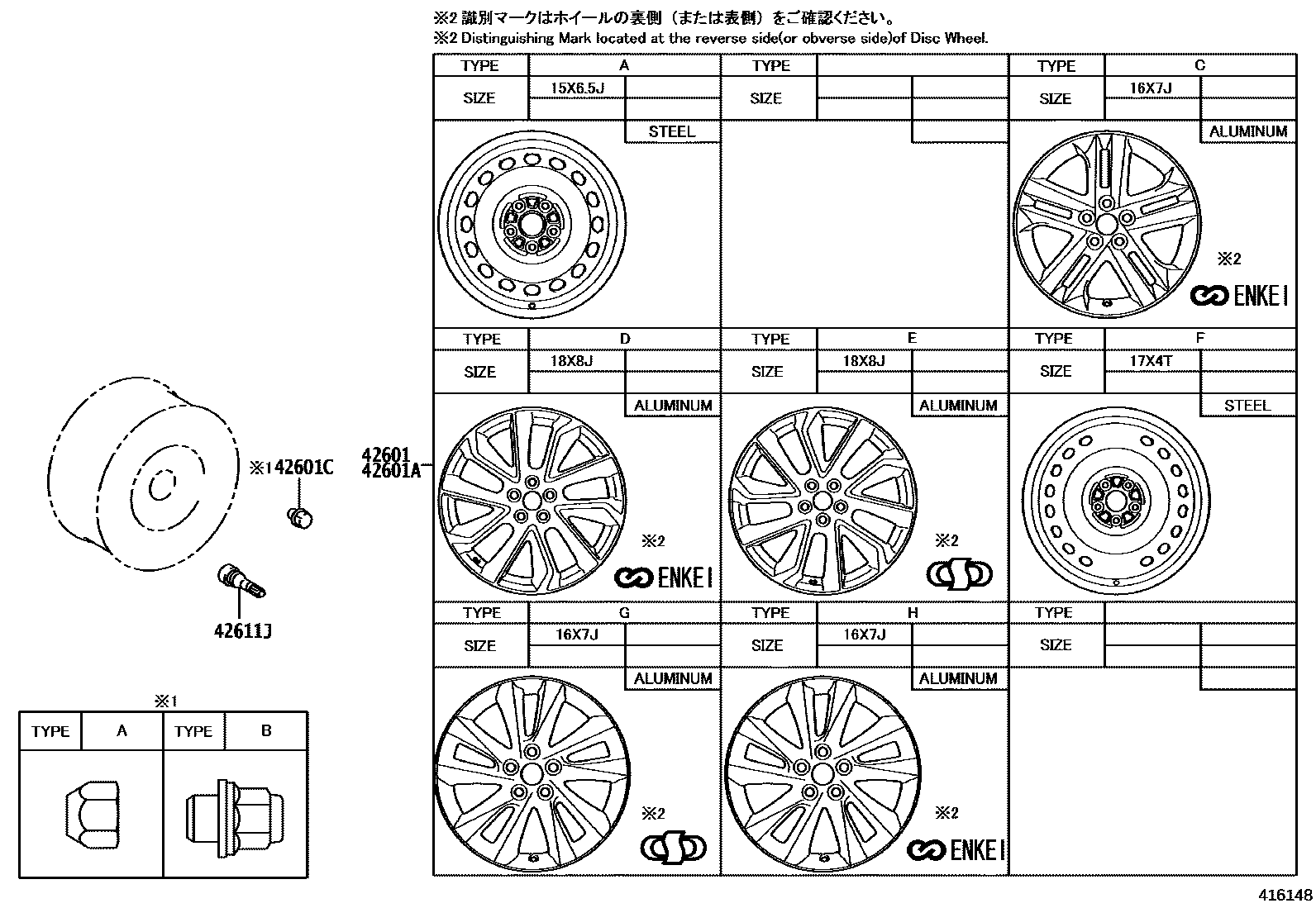

Toyota COROLLA 车轮和车轮盖 — Figure 4103
Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 3 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04423 | Tire pressure monitoring valve or balancer valve mounting assembly | 04423-33060 |
| 42601 | spoke wheel | 42611-12D30 · 42611-12D31 · 42611-12E00 · 42611-12E10 · 42611-12F00 · 42611-12F90 · 42611-12G00 · 42611-12G10 · 42611-12G20 |
| 42601A | Spoke wheel (for spare tire) | 42611-47631 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01033 · 90942-01115 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-52170 |
| 42607 | Tire pressure monitoring valve sub-assembly | 42607-12010 · 42607-12040 · 42607-33050 · 42607-47010 |
| 42607D | SOUPAPE, CONTROLE PRESSION PNEU | 90942-05043 · 90942-05044 · 90942-05047 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05039 |
| 42621 | wheel cover | 42602-12840 |
