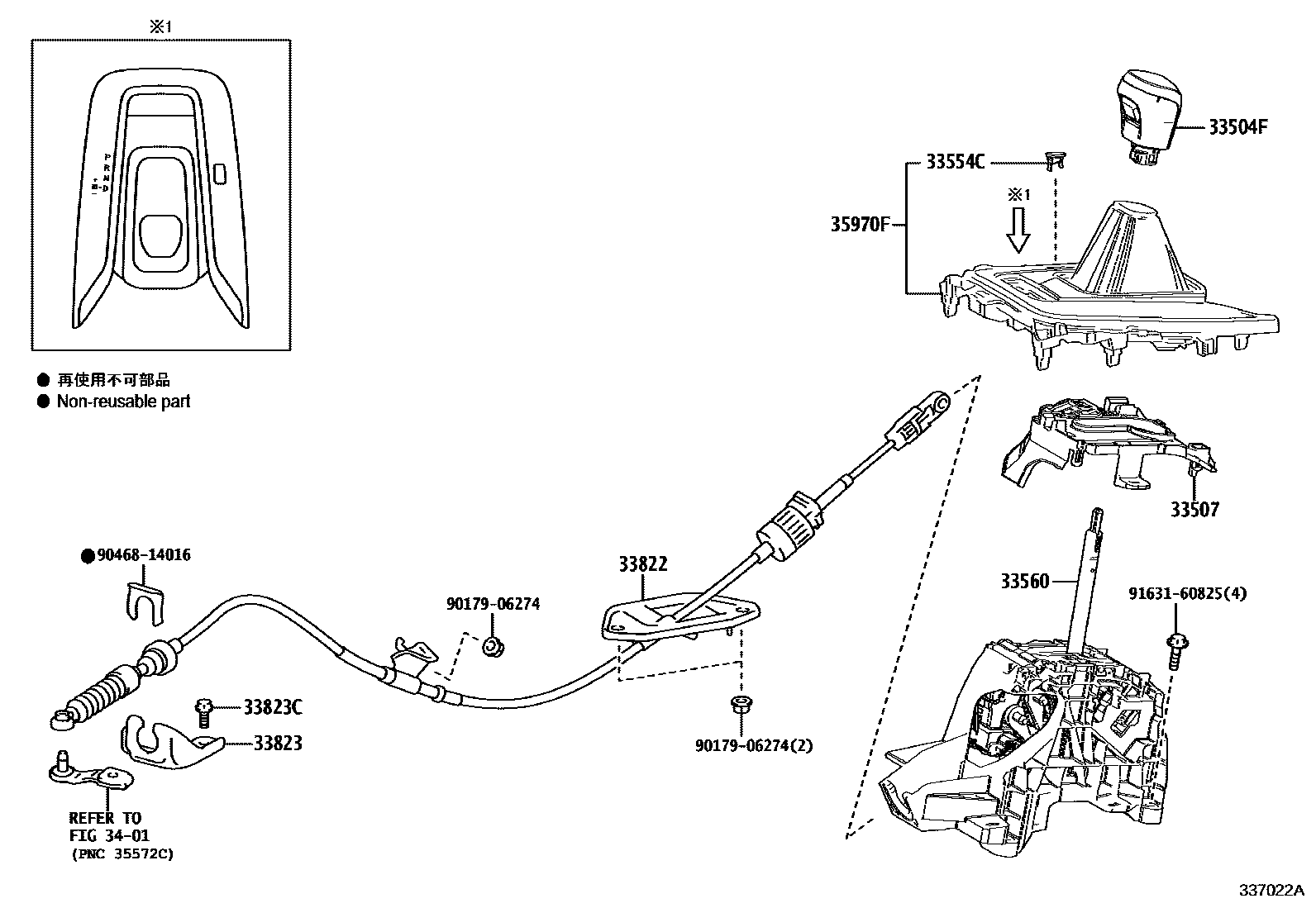

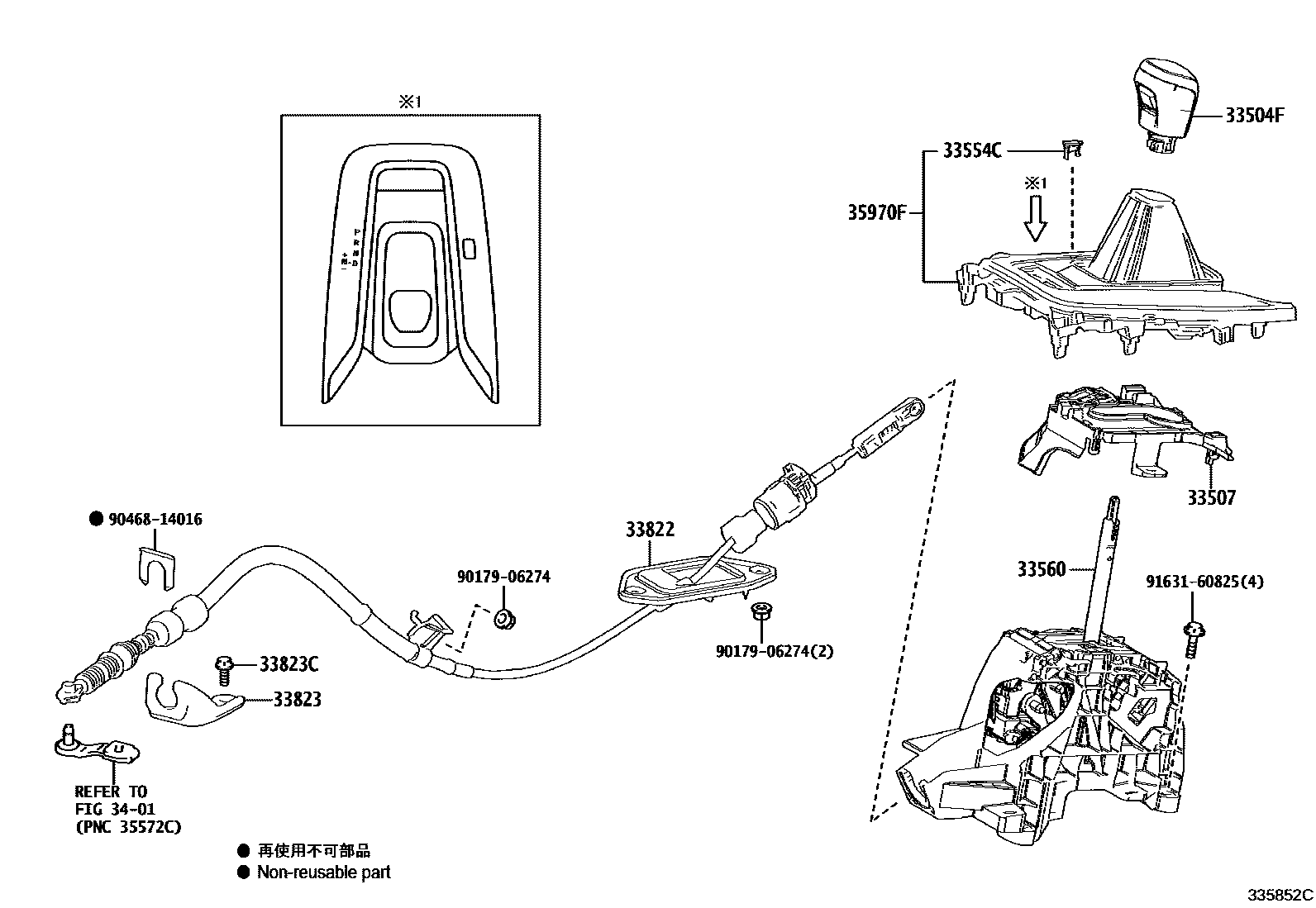

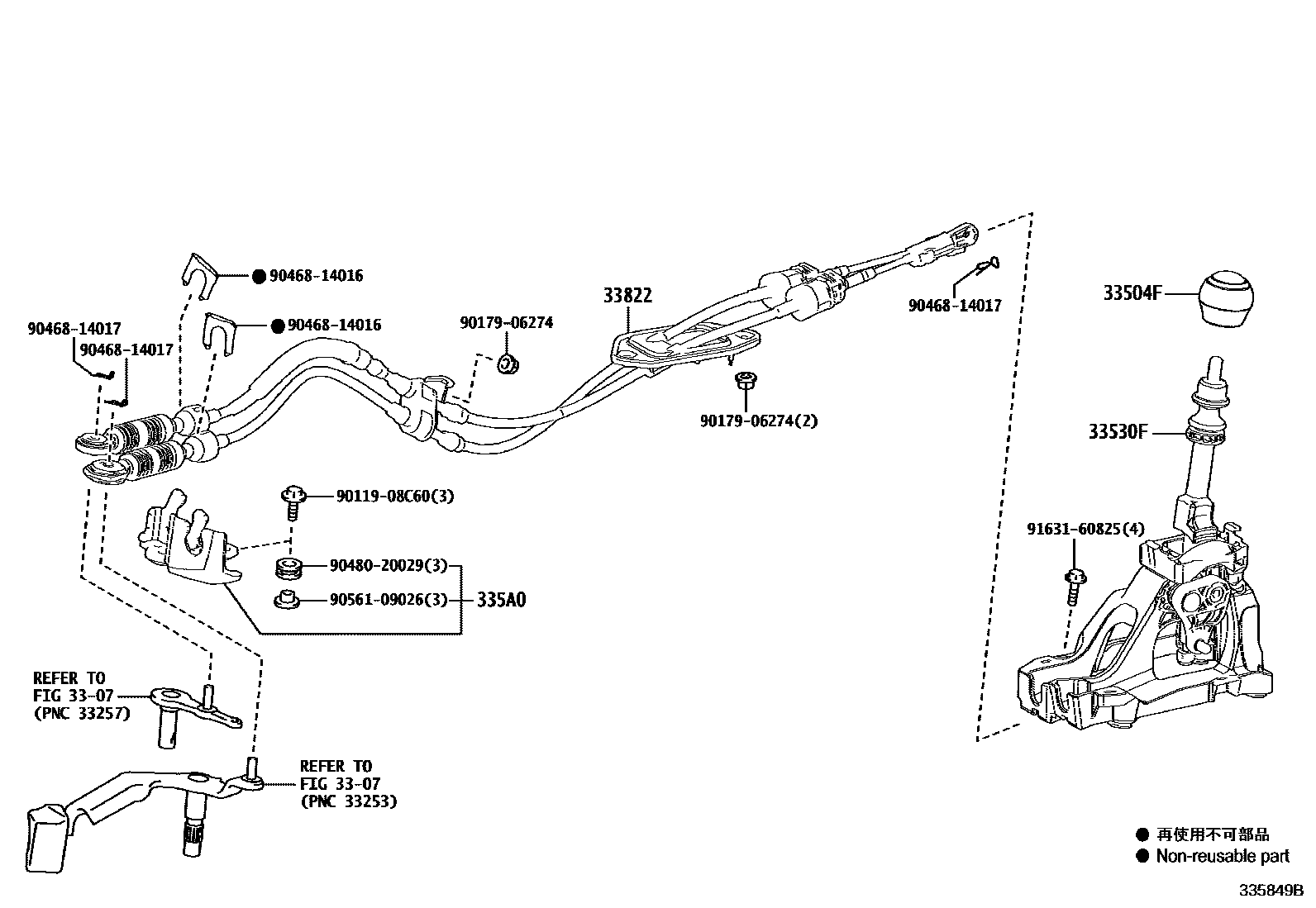

Toyota COROLLA Shift Lever & Retainer — Figure 3312
Toyota COROLLA EPC diagram 3312, Shift Lever & Retainer, with 3 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33507 | Shift lever housing bracket sub-assembly | 33507-12030 |
| 33530F | Shift lever assembly (for floor shift) | 33530-12C50 |
| 33554C | Shift lock release button cover | 33554-12210 |
| 33560 | Shift lock control unit assembly | 33560-12650 |
| 335A0 | Control cable bracket assembly | 335A0-12040 |
| 33822 | Transmission selector control cable (for floor-mounted shifting) | 33820-12J20 · 33820-12J30 |
| 33823 | No. 1 transmission control cable bracket | 33823-12310 |
| 33823C | Bolt (for transmission control cable bracket) | 91671-80820 |
