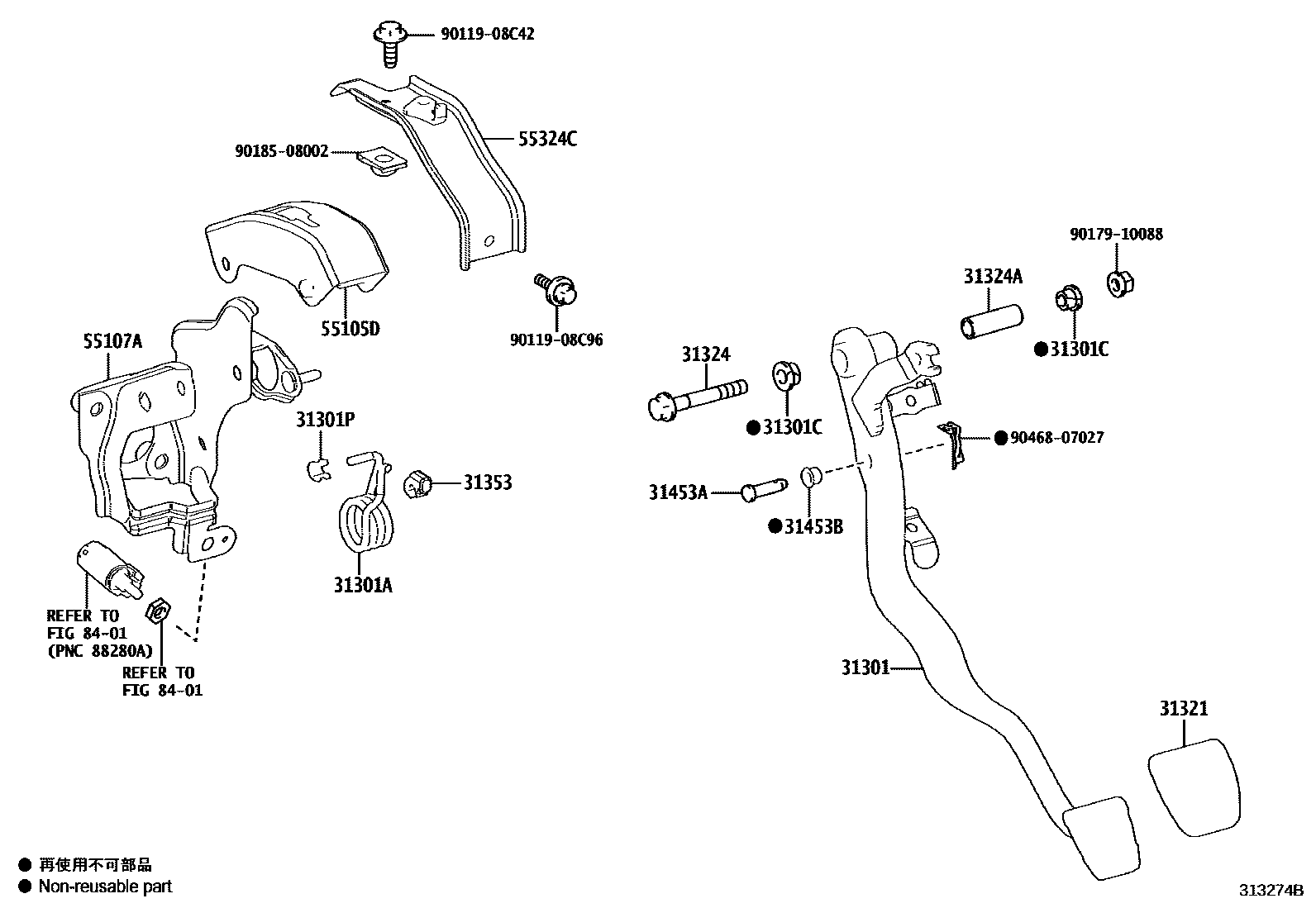

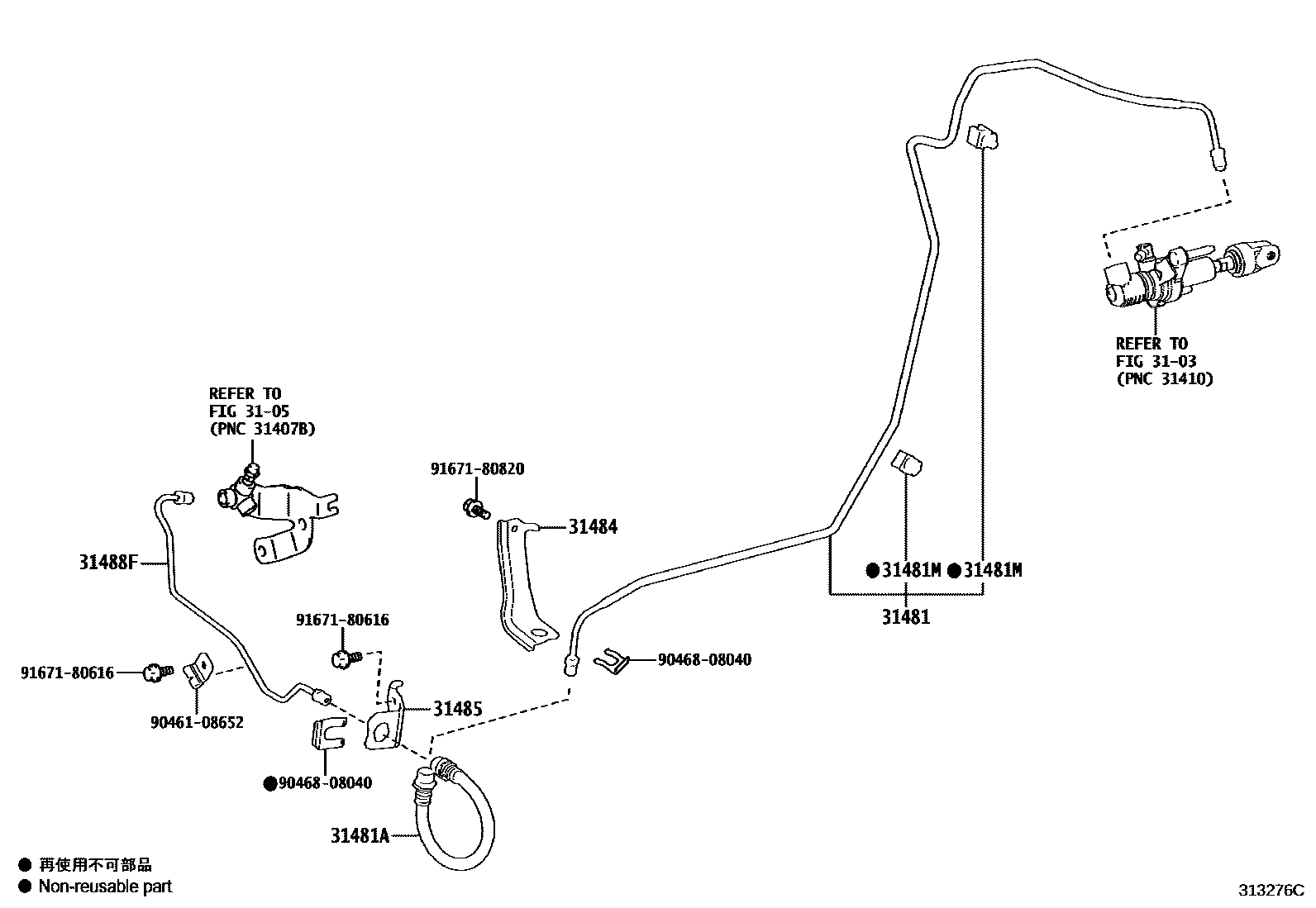

Toyota COROLLA 离合器踏板和挠性软管 — Figure 3102
Toyota COROLLA EPC diagram 3102, 离合器踏板和挠性软管, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31301 | Clutch pedal sub-assembly | 31301-02590 |
| 31301A | Spring (for clutch pedal) | 31394-02010 · 90949-03068 |
| 31301C | Bushing (for clutch pedal) | 90386-13015 |
| 31301P | Bushing (for clutch pedal flip-up device) | 90389-06055 |
| 31321 | clutch pedal pad | 31321-42010 |
| 31324 | clutch pedal shaft | 90105-10524 |
| 31324A | clutch pedal collar | 90387-10003 |
| 31353 | Clutch pedal spring retainer | 31353-26010 |
| 31453A | Pin with hole (for clutch master cylinder push rod U-shaped clamp) | 90240-08078 |
| 31453B | Bushing (for clutch master cylinder push rod U-shaped clamp) | 90386-08033 |
| 31481 | Clutch master cylinder to flexible hose pipe | 31481-12440 |
| 31481A | No. 1 clutch hose | 90947-02H31 |
| 31481M | Clamp (for clutch master cylinder tube) | 90949-01E01 |
| 31484 | Flexible hose bracket (for clutch) | 31484-10060 |
| 31485 | No. 2 flexible hose bracket (for clutch) | 31484-12560 |
| 31488F | TUYAU, PURGEUR AU TUYAU FLEXIBLE | 31488-12030 |
| 55105D | Clutch pedal bracket sub-assembly | 55105-02090 |
| 55107A | Clutch pedal bracket sub-assembly | 55107-02480 |
| 55324C | SUPPORT, TABLEAU BORD, NO.4 | 55324-12260 |
