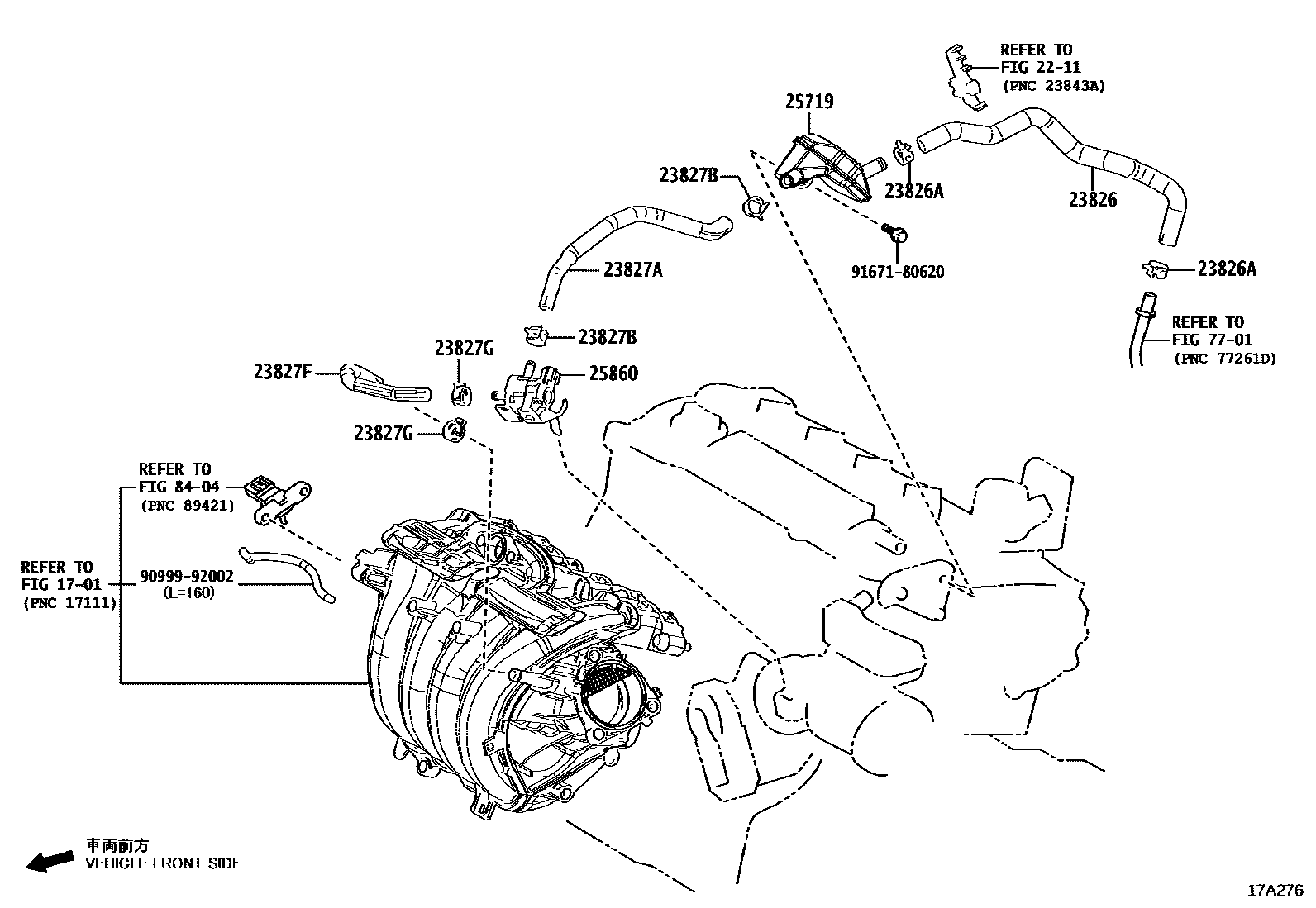

Toyota COROLLA vacuum tube — Figure 1708
Toyota COROLLA EPC diagram 1708, vacuum tube, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23826 | No. 1 fuel vapor supply hose | 23826-24030 |
| 23826A | Clamp (for No. 1 fuel vapor supply hose) | 96136-41901 |
| 23827A | No. 2 fuel vapor supply hose | 23826-24070 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 96136-41901 |
| 23827F | TUYAU, ALIMENTATION VAPEUR CARBURANT, NO.3 | 23826-24080 |
| 23827G | AGR. FIX. (DE COND. FLEX. VAP.ESSENCE NO.3) | 96136-41901 |
| 25719 | Vacuum pressure tank | 25719-24020 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-24040 |
