Toyota COROLLA Exhaust Pipe — Figure 1702

Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 7 PNC and OE references.

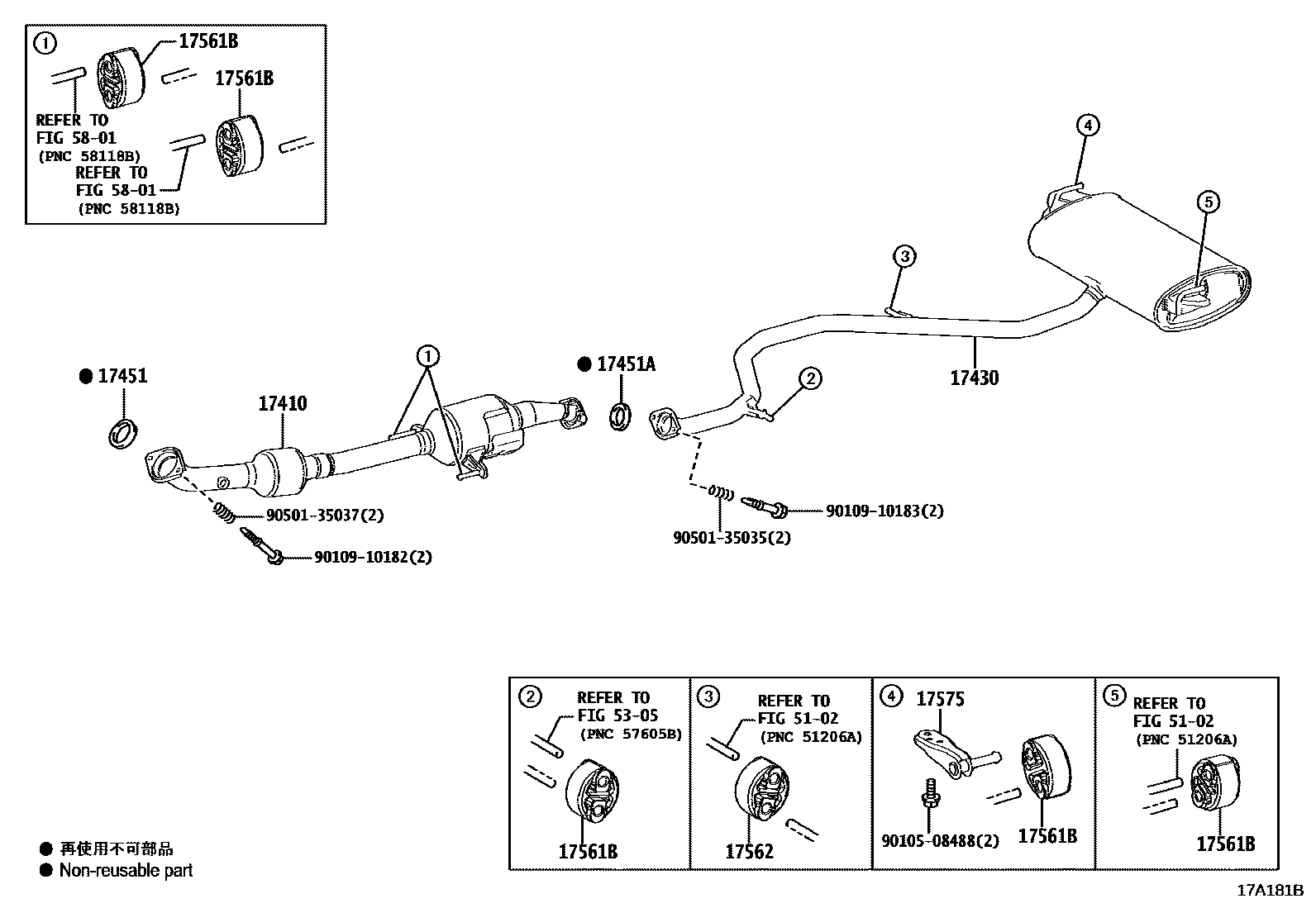

Toyota COROLLA Exhaust Pipe EPC diagram — 17A181B — Exhaust Pipe — 17A181B (201806 – 999999)

PNC and OE references

PNC	Part name	OE numbers
17410	Front exhaust pipe assembly	17410-24250 · 17410-24470 · 17410-24750
17430	Exhaust tailpipe assembly	17430-24360
17451	Exhaust pipe gasket	17451-28040 · 17451-28041
17451A	No. 2 exhaust pipe gasket	17451-23042 · 17451-23043
17561B	No. 1 exhaust pipe lifting lug	17565-22040
17562	No. 2 exhaust pipe lifting lug	17565-28010
17575	No. 5 exhaust pipe bracket	17575-37030
