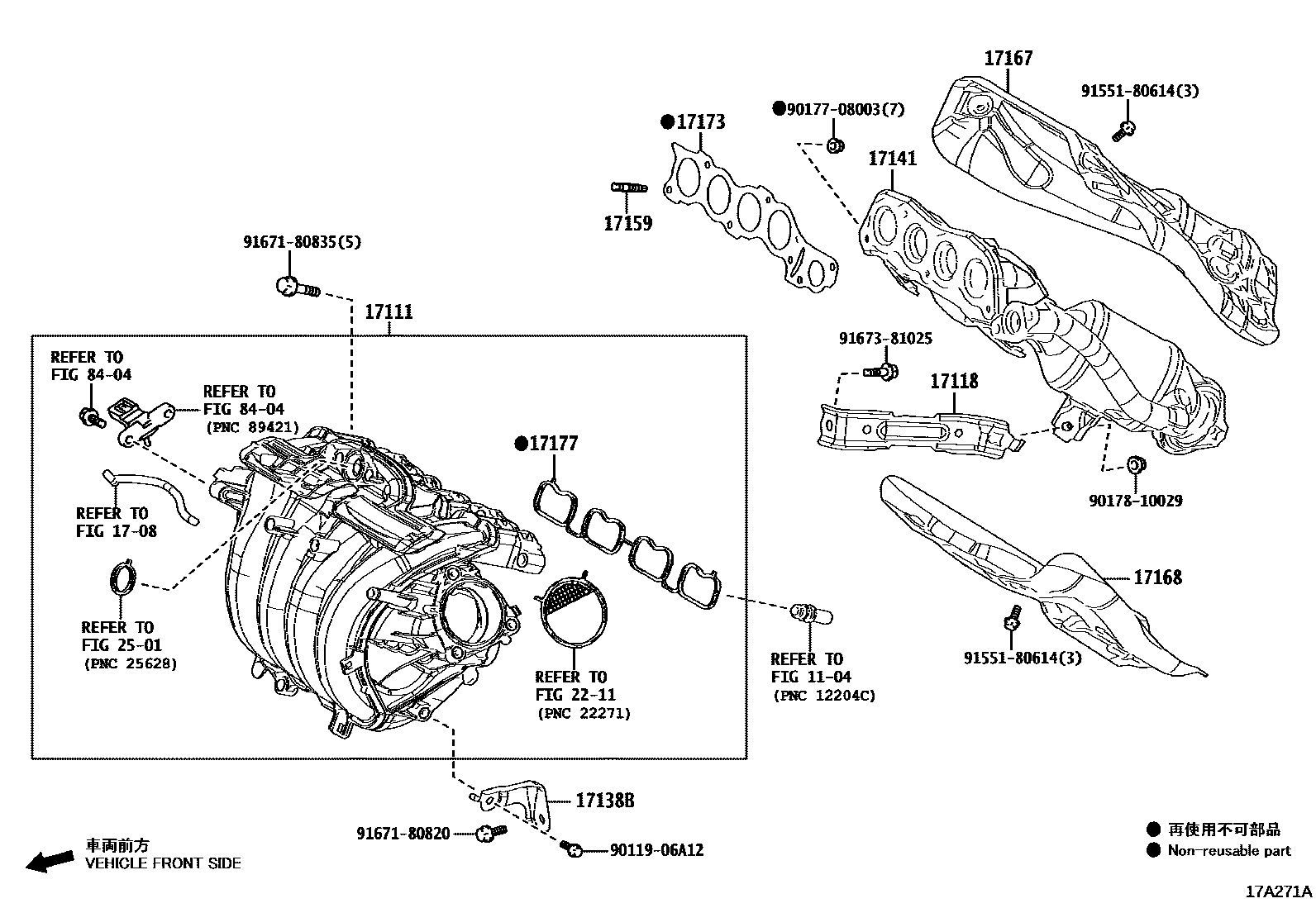

Toyota COROLLA Manifold — Figure 1701
Toyota COROLLA EPC diagram 1701, Manifold, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17111 | Intake Manifold | 17120-24010 |
| 17118 | Manifold stays | 17118-24010 |
| 17138B | Intake manifold stay | 17138-24010 |
| 17141 | exhaust manifold | 17141-24060 · 17141-24230 · 17141-24380 |
| 17159 | Studs (for manifold to cylinder head) | 90126-08052 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-24030 |
| 17168 | Exhaust manifold No.2 insulation pad | 17168-24030 · 17168-F2050 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-24010 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17171-24020 |
