Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 1 images and 4 PNC and OE references.

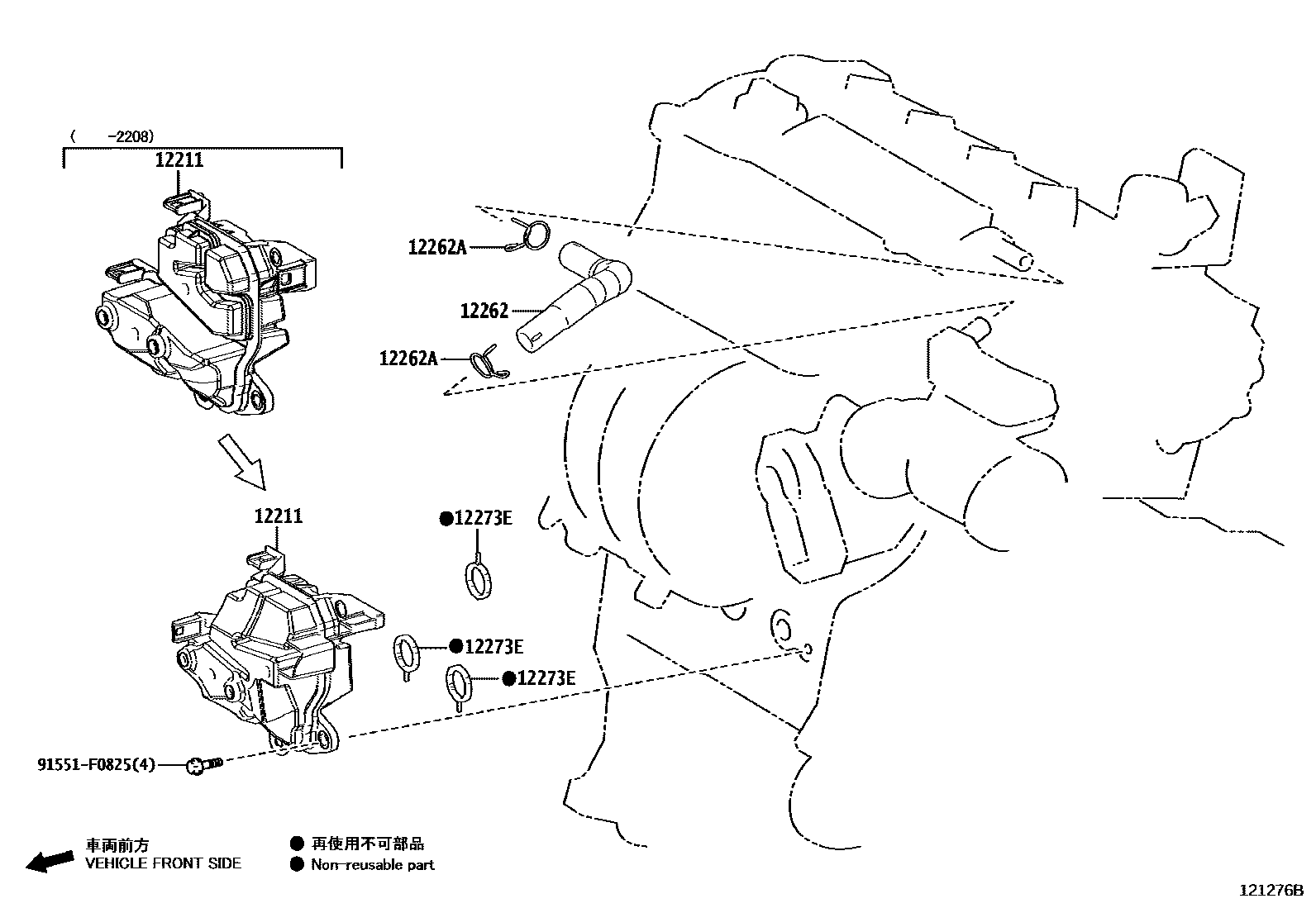

Toyota COROLLA Ventilation Hose EPC diagram — 121276B
Ventilation Hose — 121276B (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
12211Ventilation box No. 112211-24010 · 12211-24020
12262Ventilation hose No. 212262-24020
12262AClamp (for vent hose No. 2)90467-21004
12273EJOINT(POUR CARTER VENTILATION)12273-24010
