Toyota COROLLA Standard Tools — Figure 0901

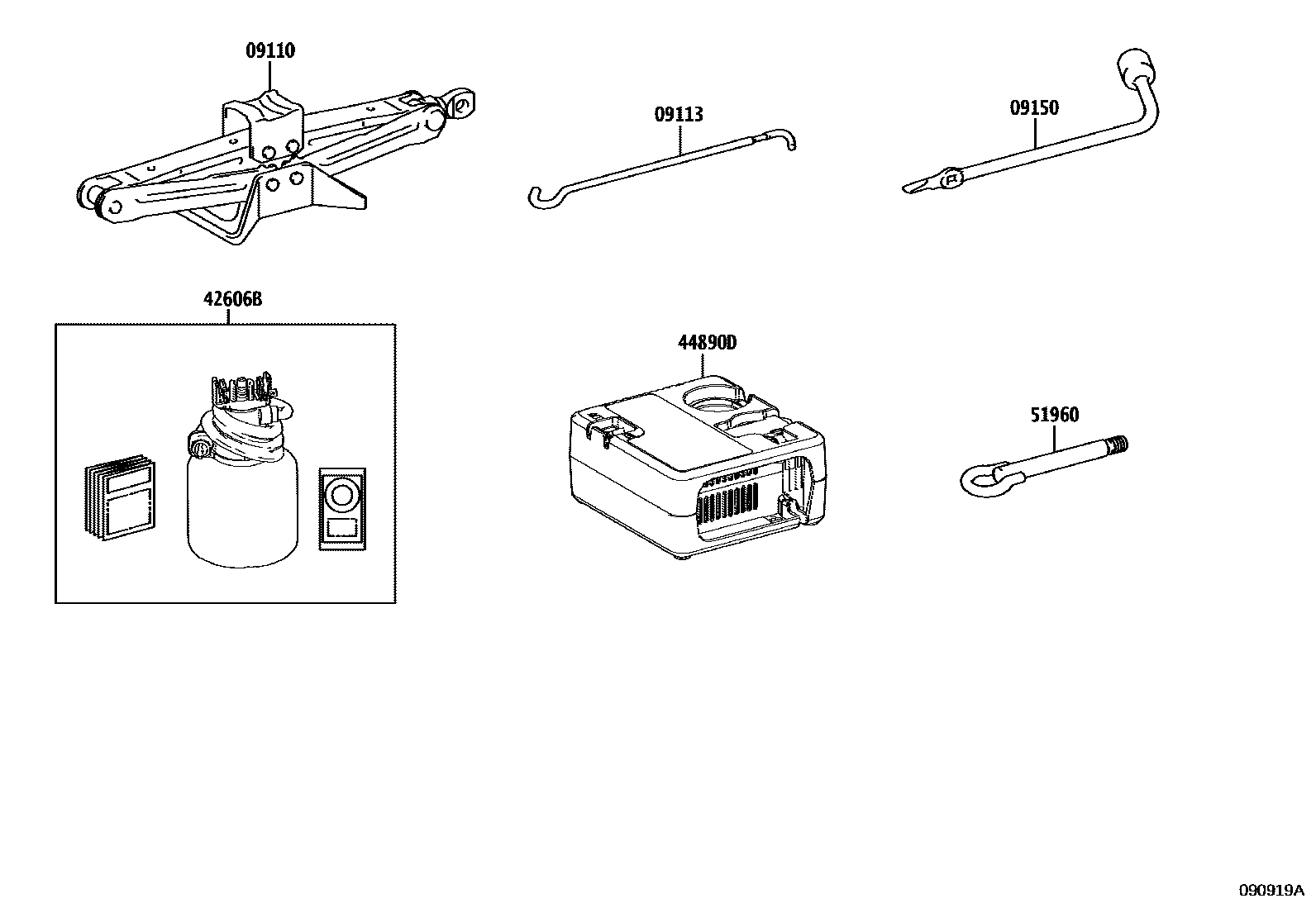

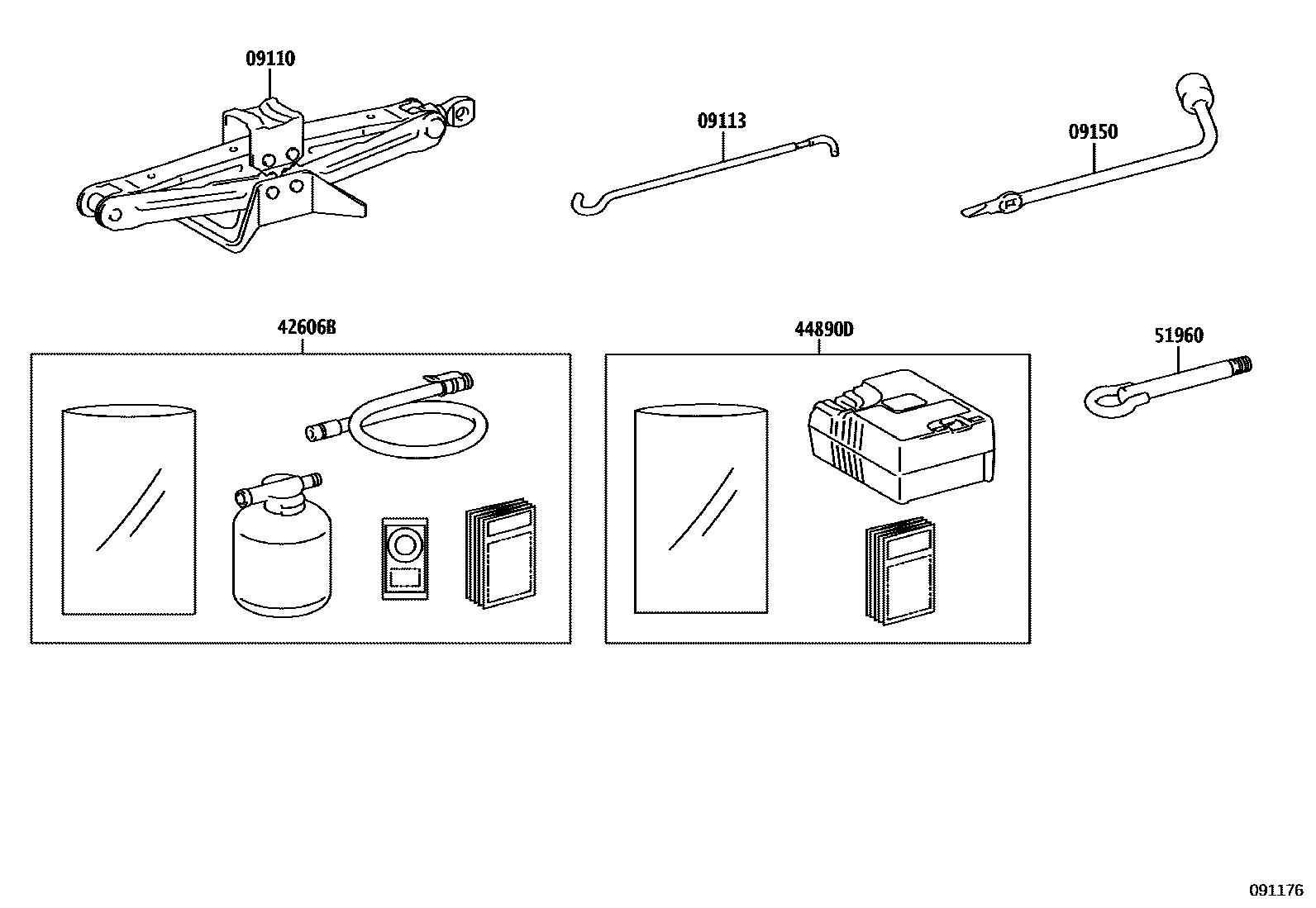

Toyota COROLLA EPC diagram 0901, Standard Tools, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-47050 · 09111-47051 |
| 09113 | Jack Handle | 09113-42030 |
| 09150 | Wheel Nut Wrench | 09150-42010 |
| 42606B | Tubeless tire repair components | 42606-12020 · 42606-12050 · 42606-42100 |
| 44890D | Air Compressor Assembly | 44890-12020 · 44890-12040 · 44890-42060 |
| 51960 | Front Towing Hook Assembly | 51960-12110 |
