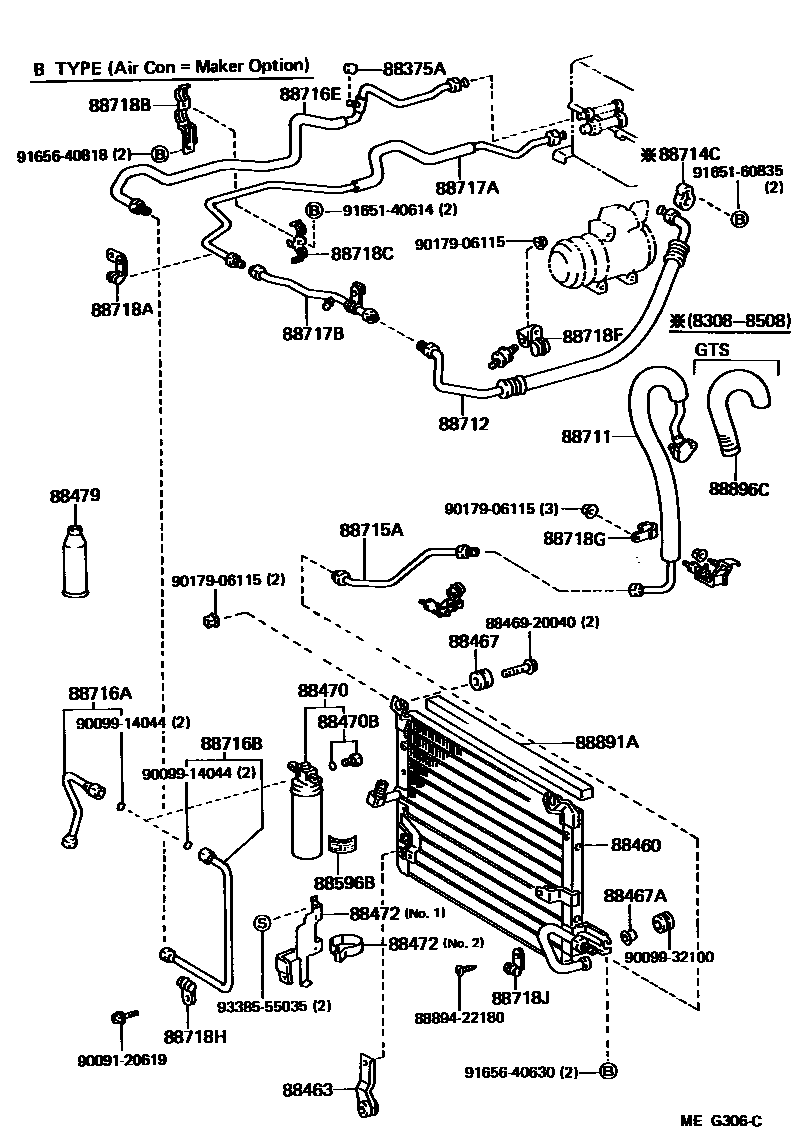

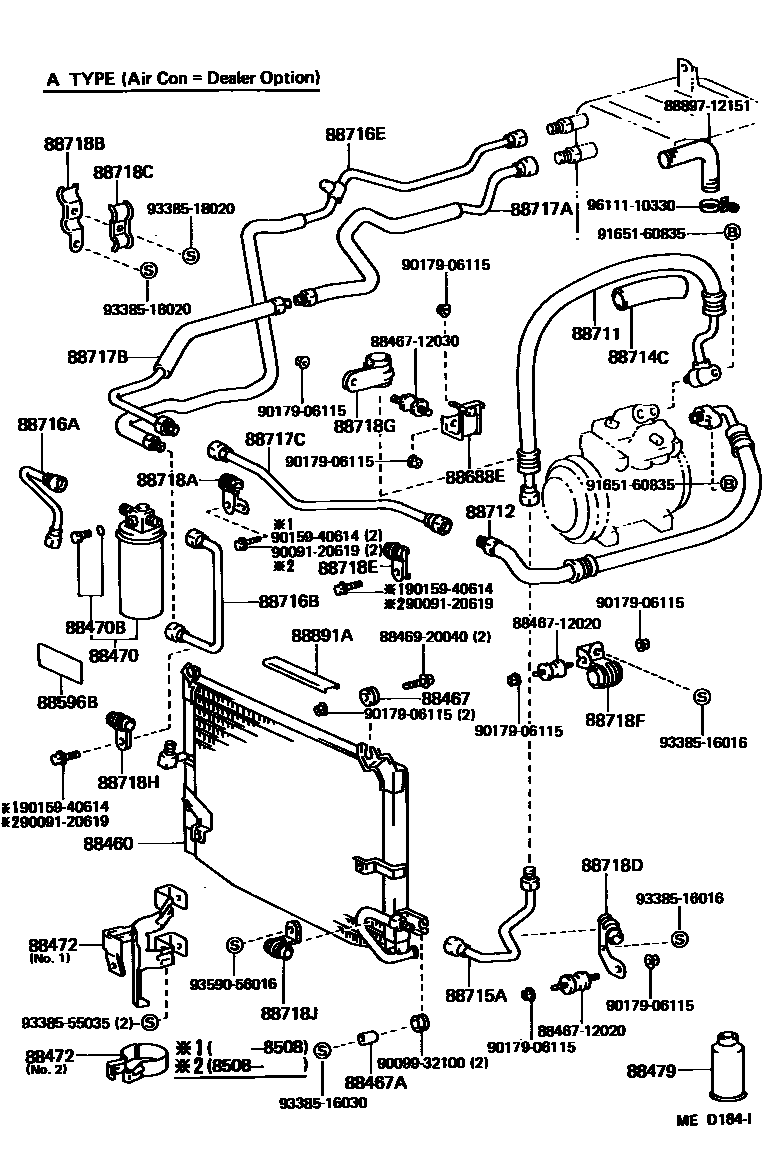

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88375A | Repair valve cover (for cooler tube) | 88375-20010 |
| 88460 | Air conditioning condenser assembly | 88460-12210 · 88460-12211 · 88460-12220 · 88460-12221 |
| 88463 | No. 1 air conditioner condenser bracket | 88688-12300 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-20040 |
| 88467A | No. 2 air conditioning condenser buffer pad | 88467-14050 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12050 · 88470-12070 |
| 88470B | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-12010 · 88473-12020 · 88473-12021 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88596B | No. 1 warning nameplate | 88596-12010 · 88723-12010 |
| 88688E | Cooler No. 1 refrigerant hose bracket | 88688-12190 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12300 · 88711-12310 · 88711-12311 · 88711-12340 · 88711-12341 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12430 · 88712-12431 |
| 88714C | Cooler No. 1 refrigerant hose insulation pad | 88714-12090 · 88714-14020 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-12250 · 88715-12270 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-12690 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-12710 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-12700 · 88716-12701 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12200 · 88717-12201 · 88717-12280 |
| 88717B | Cooler refrigerant suction pipe B | 88717-12210 · 88717-12211 · 88717-12290 · 88717-12291 |
| 88717C | Cooler refrigerant suction pipe C | 88717-12210 · 88717-12211 |
| 88718A | Clamp No. 1 (for cooler refrigerant pipe) | 88718-12680 |
| 88718B | Clamp No. 2 (for cooler refrigerant pipe) | 88718-12670 |
| 88718C | Clamp No. 3 (for cooler refrigerant pipe) | 88718-12710 |
| 88718D | No. 4 clamp (for cooler refrigerant pipe) | 88718-12760 |
| 88718E | No. 5 clamp (for cooler refrigerant pipe) | 88718-14480 |
| 88718F | Clamp No. 1 (for cooler refrigerant hose) | 88718-12690 |
| 88718G | Clamp No. 2 (for cooler refrigerant hose) | 88718-12700 |
| 88718H | Clamp No. 3 (for cooler refrigerant hose) | 88718-12280 |
| 88718J | No. 4 clamp (for cooler refrigerant hose) | 88718-12720 |
| 88891A | Seal A (for cooler) | 88578-12120 |
| 88896C | Cooler No. 1 refrigerant pipe cover | 88897-12151 |
