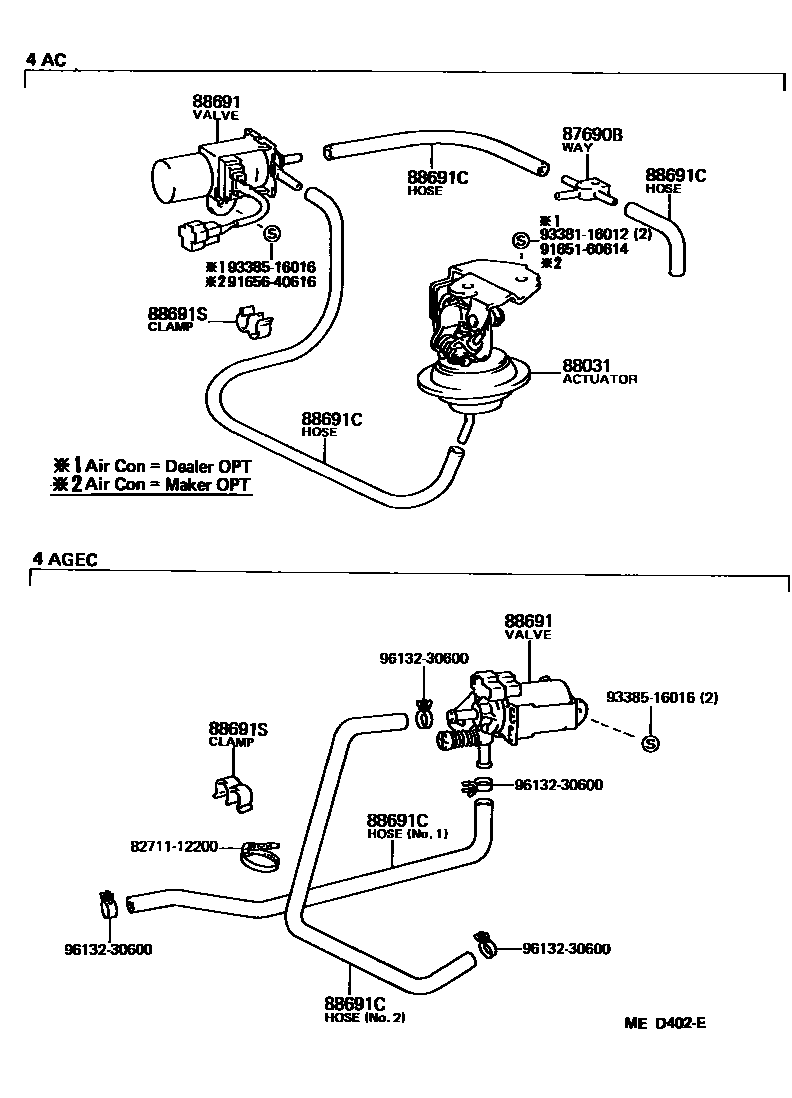

Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717
Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87690B | tee pipe | 90413-04005 |
| 88031 | Idle speed lift actuator assembly | 88031-16020 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12380 · 88690-14280 · 88691-12070 · 88691-30430 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 88689-12030 · 88689-12040 · 88689-12050 · 88689-12100 |
| 88691S | Clamp No. 1 (for idle speed lifting device) | 88569-17030 · 90464-00082 |
