Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714

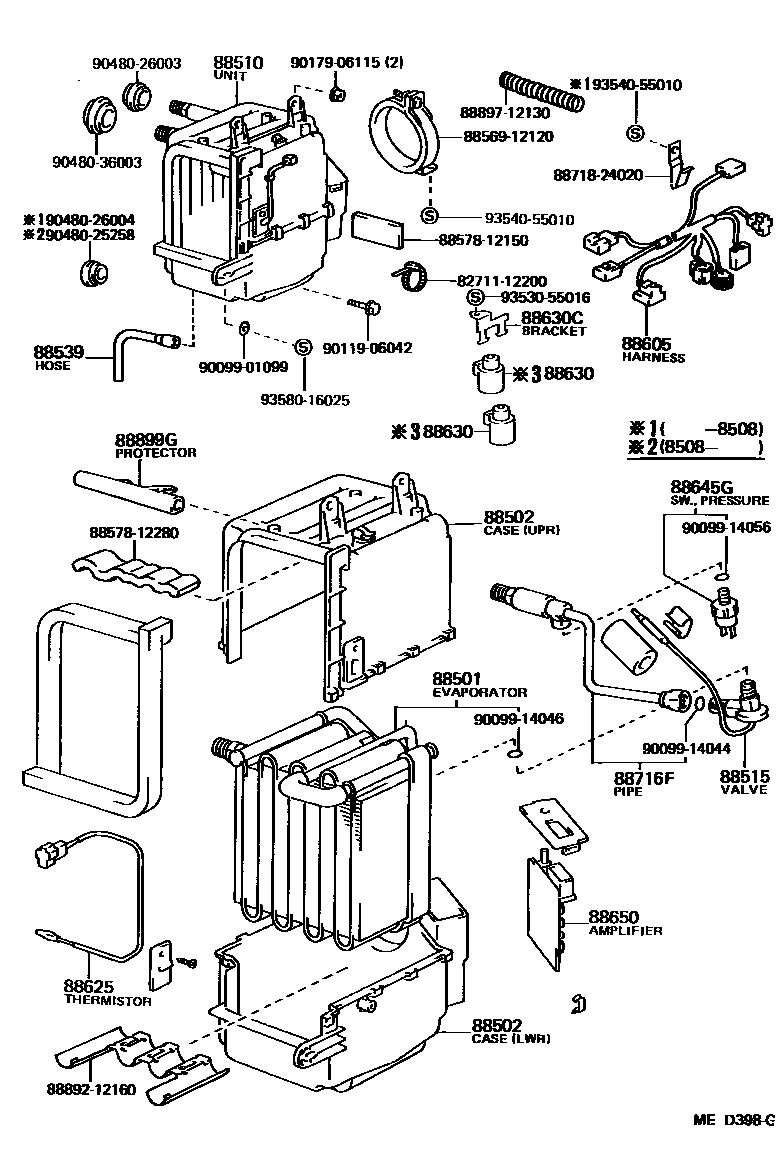

Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12300 · 88501-12301 · 88501-12302 |
| 88502 | Cooling device shell sub-assembly | 88502-12080 · 88502-12090 |
| 88510 | Cooler device assembly | 88510-12410 · 88510-12411 · 88510-12530 · 88510-12531 · 88510-12590 · 88510-12591 · 88510-12660 · 88510-12680 |
| 88515 | Cooler expansion valve | 88515-16030 · 88515-16031 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12070 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12400 · 88605-12410 · 88605-12661 · 88605-12771 · 88605-12790 · 88605-1A030 |
| 88625 | Cooler No. 1 Thermistor | 88625-12070 · 88625-95A00 |
| 88630 | Cooler relay assembly | 88630-14030 · 88630-95702 |
| 88630C | Cooler relay bracket | 88688-12370 · 88688-12380 |
| 88645G | pressure switch | 88645-12020 |
| 88650 | Cooler stabilized amplifier assembly | 88650-10030 · 88650-12210 · 88650-12330 · 88650-12331 · 88650-12340 · 88650-12341 · 88650-14140 · 88650-14150 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-12490 · 88726-12070 |
| 88899G | protective device protective strip | 88899-12230 |
