Toyota COROLLA 后视镜 — Figure 8701

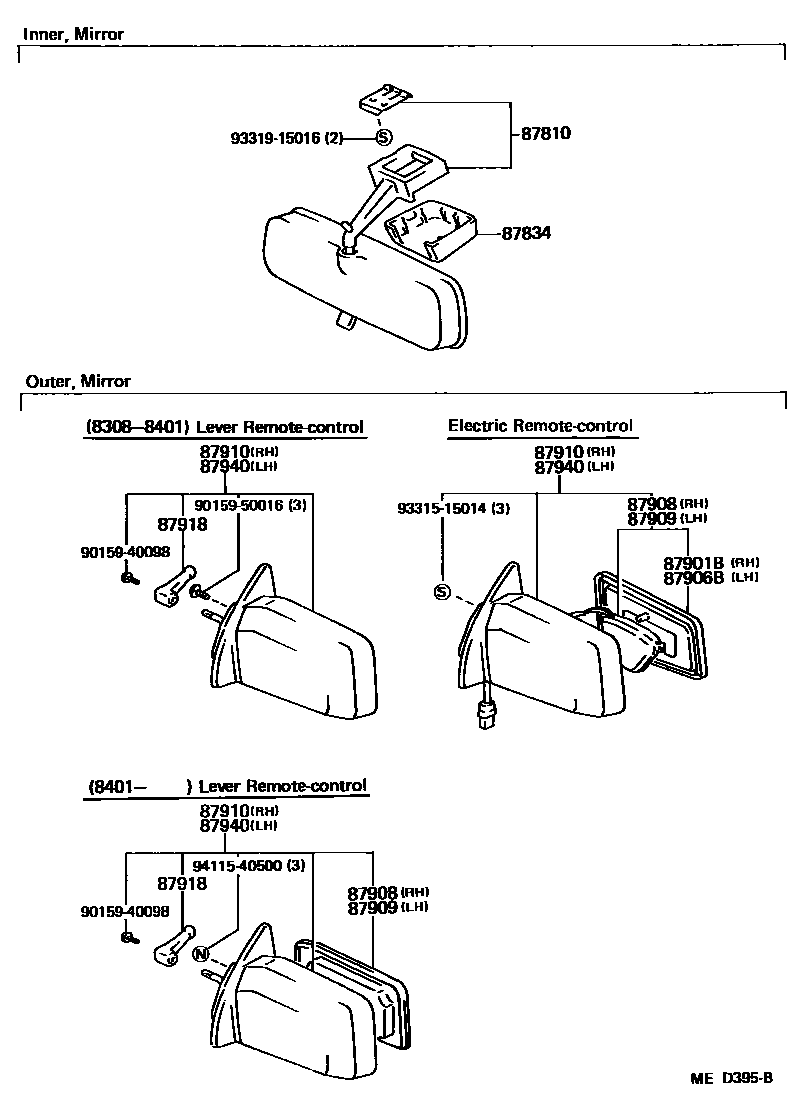

Toyota COROLLA EPC diagram 8701, 后视镜, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87901B | Right exterior rearview mirror sub-assembly | 87931-1A040 |
| 87906B | Left exterior rearview mirror sub-assembly | 87961-1A120 |
| 87908 | Right exterior rearview mirror actuator assembly | 87908-12070 · 87908-12120 · 87908-16060 |
| 87909 | Left exterior rearview mirror actuator assembly | 87909-12060 · 87909-12110 · 87909-16050 |
| 87910 | Right exterior rearview mirror assembly | 87910-12680 · 87910-12690 · 87910-1A030 · 87910-1A040 |
| 87918 | Exterior rearview mirror control handle | 87918-12030 · 87918-12070 |
| 87940 | Left exterior rearview mirror assembly | 87940-12760 · 87940-12770 · 87940-1A110 · 87940-1A120 |
