Toyota COROLLA 扬声器 — Figure 8602

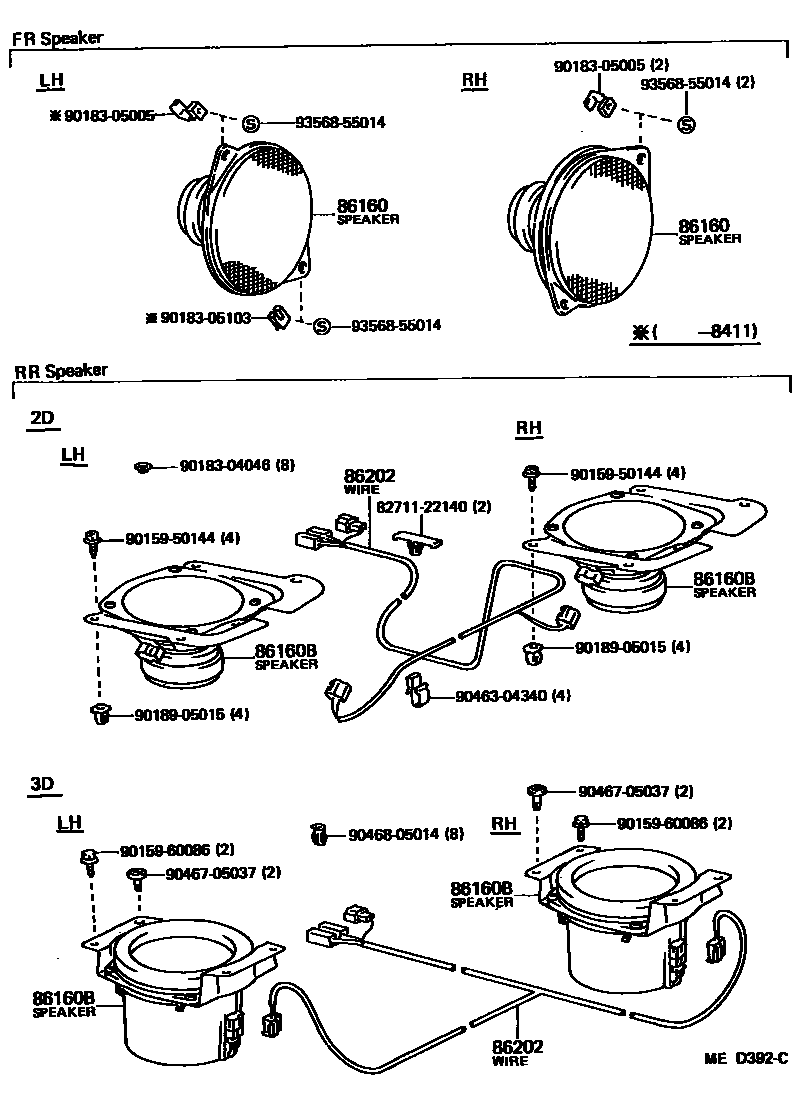

Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-12170 · 86160-12210 |
| 86160B | Rear speaker assembly | 86150-12040 · 86160-12140 · 86160-12150 · 86160-12160 |
| 86202 | No. 1 speaker harness | 82561-12030 · 82561-12040 |
