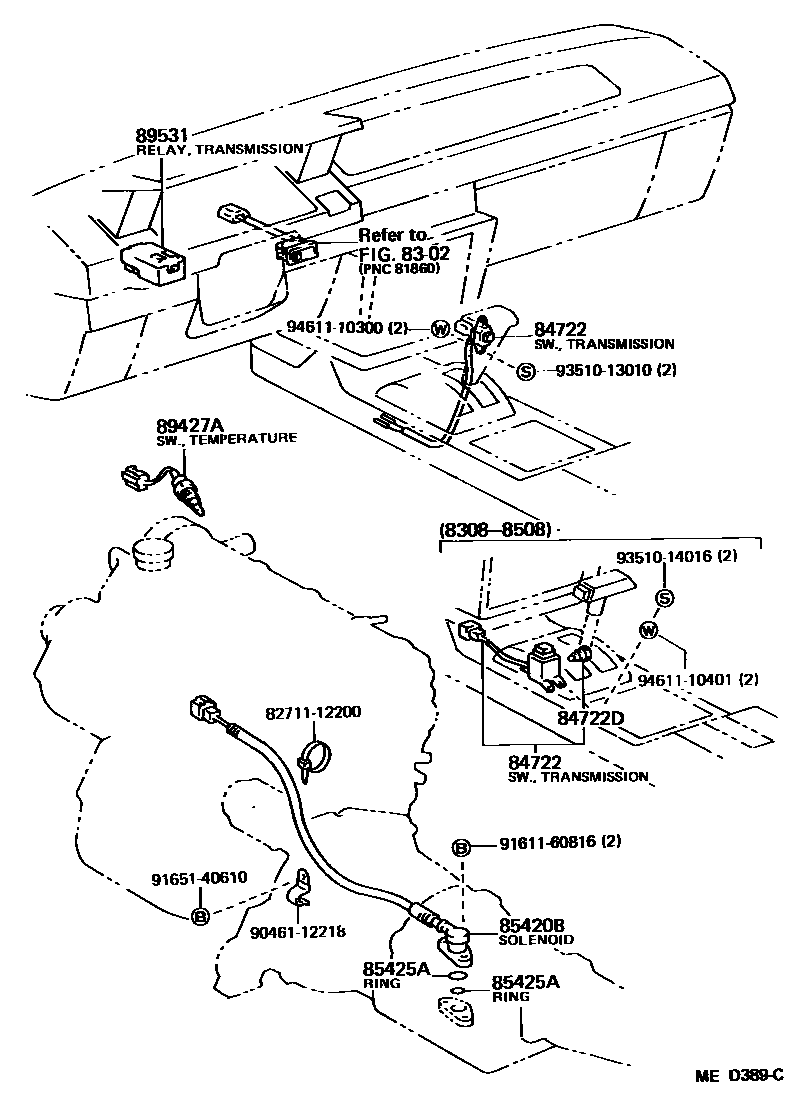

Toyota COROLLA 超速档和电子控制变速器 — Figure 8410
Toyota COROLLA EPC diagram 8410, 超速档和电子控制变速器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 84722 | transmission control switch | 84722-14060 |
| 84722D | Transmission control switch light bulb | 90981-11024 |
| 85420B | Transmission solenoid valve assembly | 85420-12050 |
| 85425A | O-ring (for overspeed solenoid valve) | 90301-11001 · 90301-23001 |
| 89427A | temperature switch | 89427-16020 |
| 89531 | transmission control relay | 89531-14050 |
