Toyota COROLLA 巡航控制(自动行驶) — Figure 8408

Toyota COROLLA EPC diagram 8408, 巡航控制(自动行驶), with 4 images and 10 PNC and OE references.

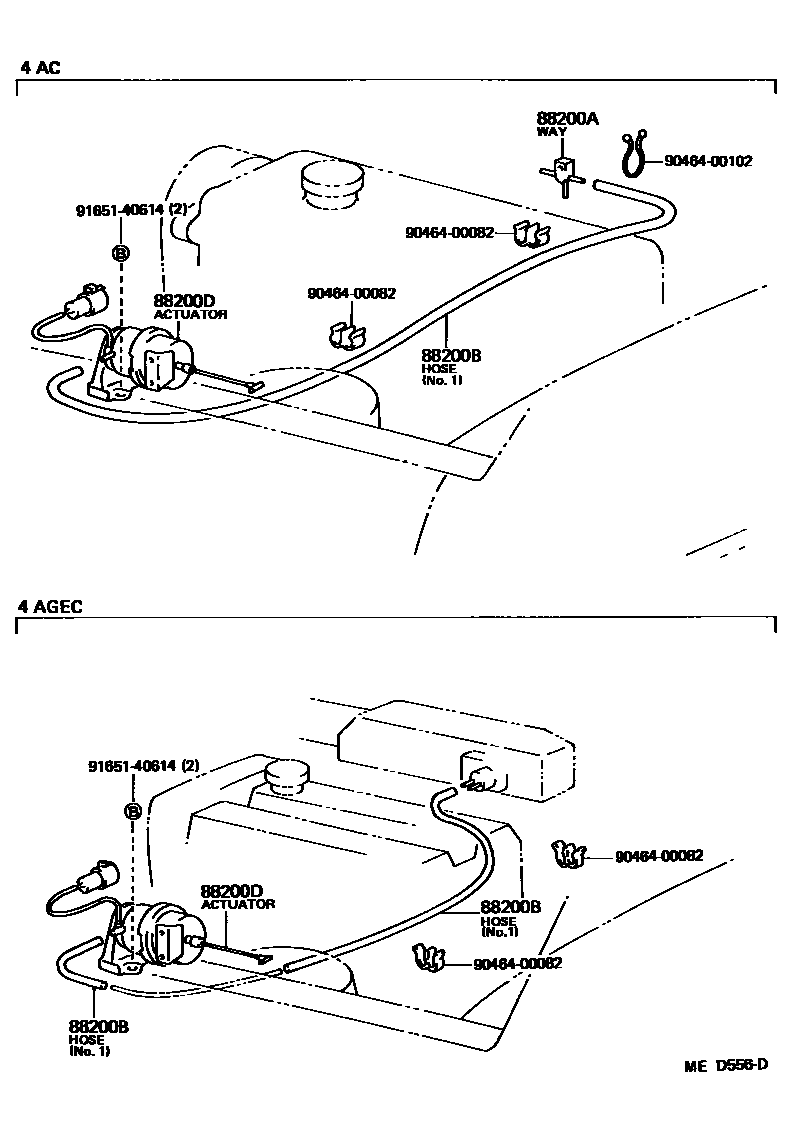

Toyota COROLLA 巡航控制(自动行驶) EPC diagram — MED556D
巡航控制(自动行驶) — MED556D (198308 – 198508)

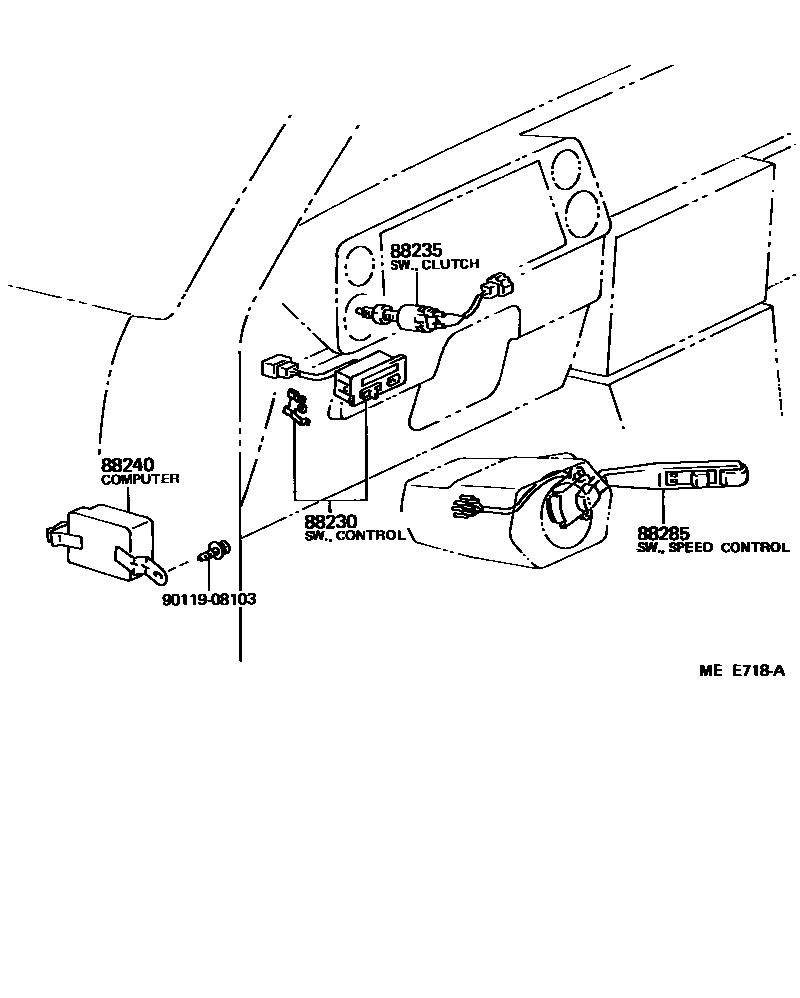

Toyota COROLLA 巡航控制(自动行驶) EPC diagram — MEE718A
巡航控制(自动行驶) — MEE718A (198308 – 999999)

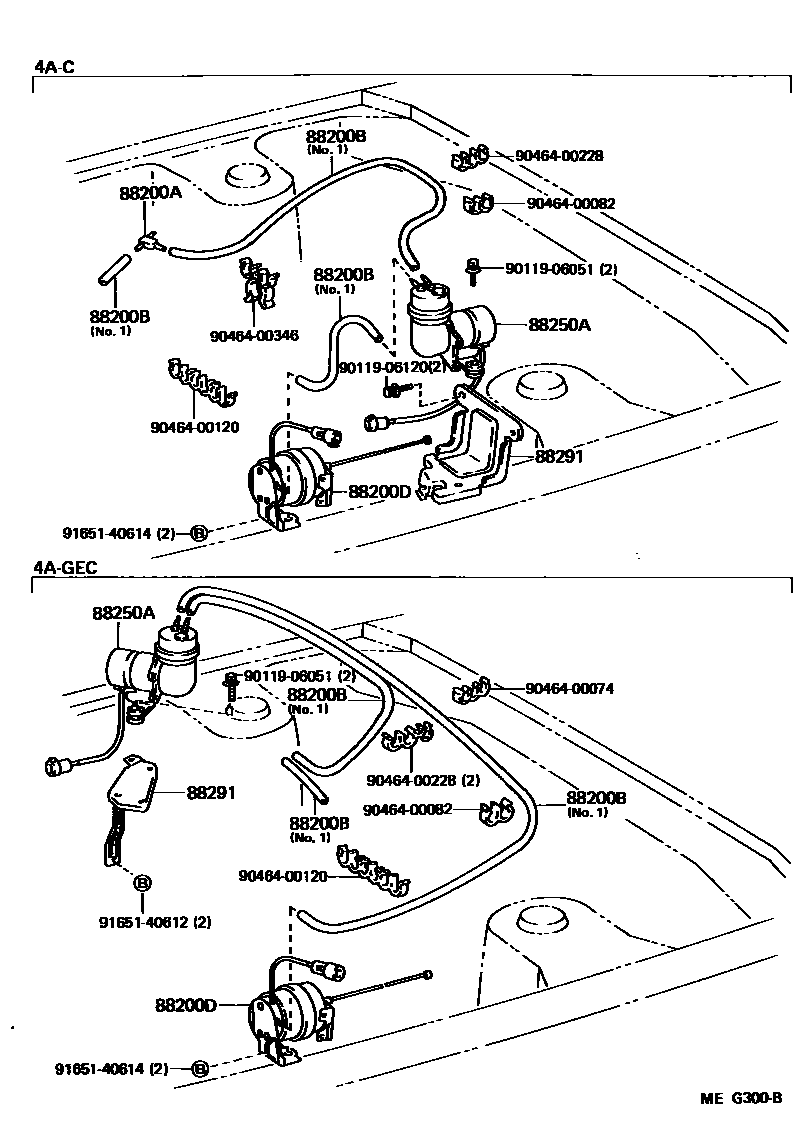

Toyota COROLLA 巡航控制(自动行驶) EPC diagram — MEG300B
巡航控制(自动行驶) — MEG300B (198508 – 198604)

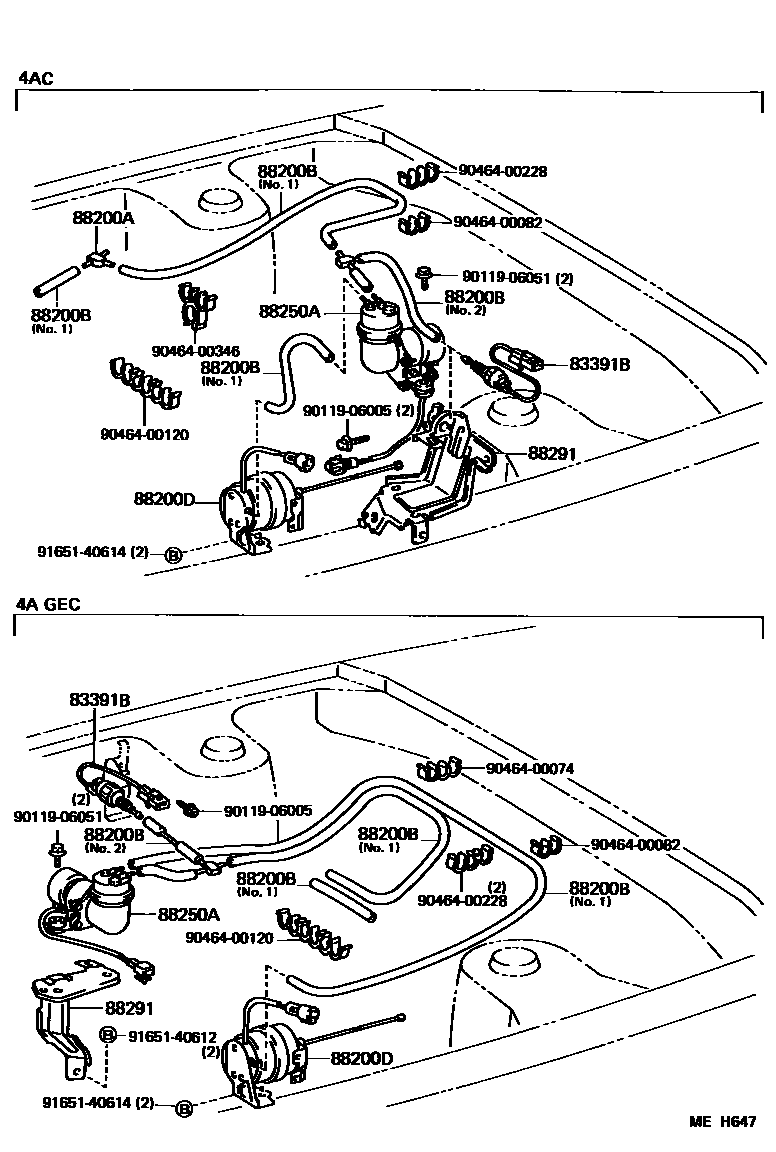

Toyota COROLLA 巡航控制(自动行驶) EPC diagram — MEH647
巡航控制(自动行驶) — MEH647 (198604 – 999999)

PNC and OE references

PNCPart nameOE numbers
83391BAutomatic driving vacuum switch83391-14090
88200Acruise control vacuum fitting or tube90413-04005
88200Bcruise control vacuum hose88283-12060 · 88283-12070 · 90445-08169 · 90445-08206 · 95411-11595
88200DCruise control actuator assembly88200-12010 · 88200-12011
88230Cruise control (automatic driving) switch assembly88230-12010
88235Cruise control (automatic driving) release switch assembly88280-12010 · 88280-35010
88240Cruise control ECU assembly88240-12010 · 88240-12020 · 88240-12100 · 88240-12101 · 88240-12110 · 88240-12111
88250Acruise control pump assembly88251-12070 · 88251-12080
88285cruise control switch88285-19025
88291No. 1 cruise control (automatic driving) bracket88291-12020 · 88291-12030 · 88291-12070
