Toyota COROLLA 电子燃油喷射系统 — Figure 8404

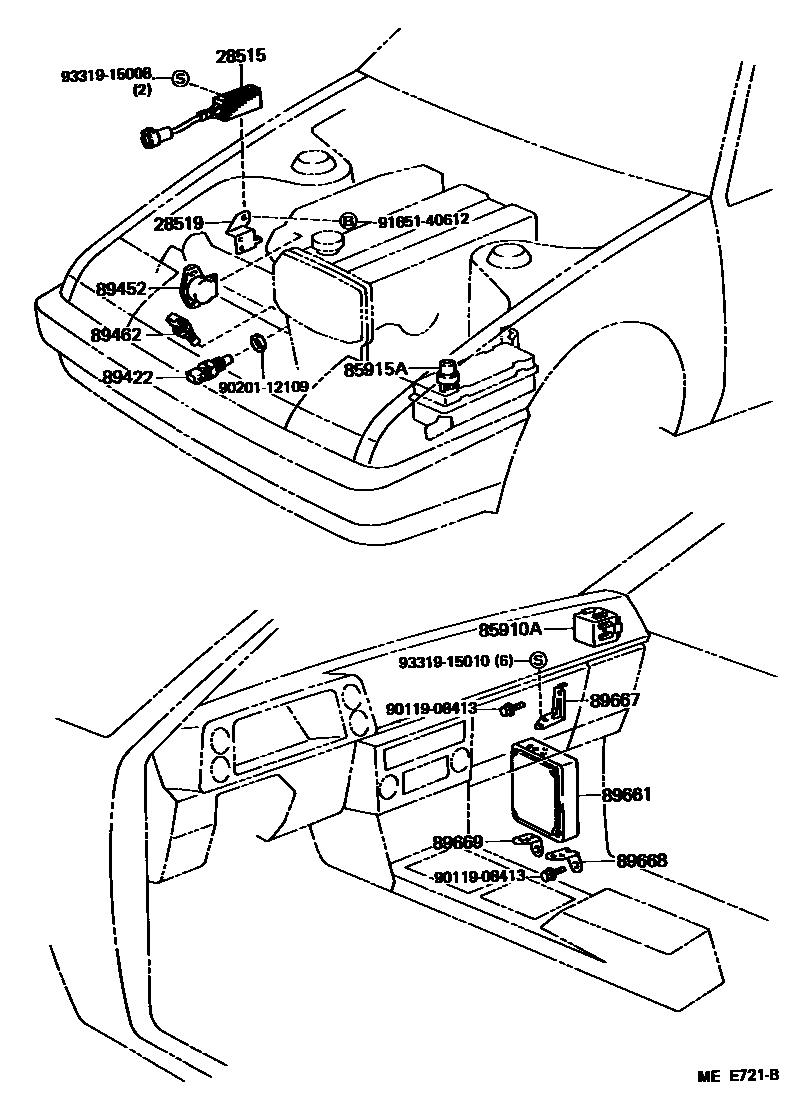

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28515 | Solenoid valve resistor | 28515-52010 |
| 28519 | Solenoid valve resistor bracket | 28519-15010 · 28519-15011 |
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-30050 |
| 85915A | main relay | 90987-02004 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-30020 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-20070 · 89452-28010 |
| 89462 | Start injector timing switch | 89462-30011 |
| 89661 | Engine control ECU | 89661-12090 · 89661-12091 · 89661-12092 |
| 89667 | Engine control ECU bracket | 89667-12050 |
| 89668 | No. 2 engine control ECU bracket | 89668-12020 |
| 89669 | No. 3 engine control ECU bracket | 89669-12020 |
