Toyota COROLLA indicator light — Figure 8302

Toyota COROLLA EPC diagram 8302, indicator light, with 1 images and 5 PNC and OE references.

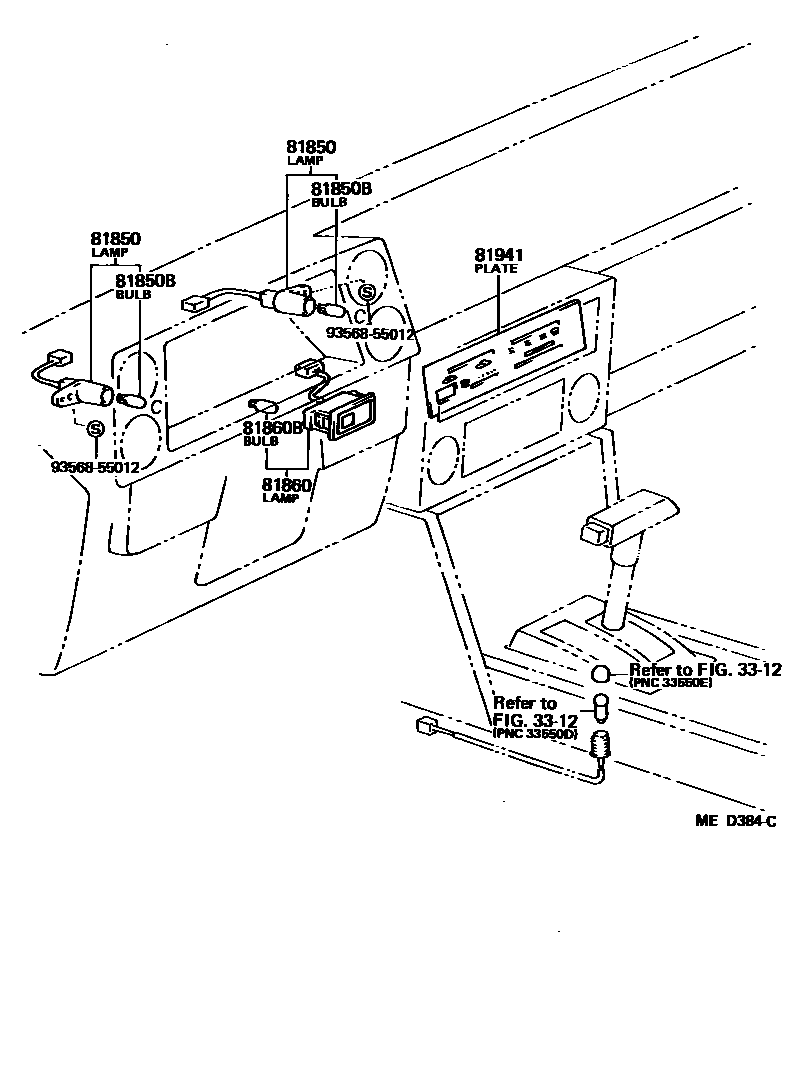

Toyota COROLLA indicator light EPC diagram — MED384C
indicator light — MED384C (198308 – 999999)

PNC and OE references

PNCPart nameOE numbers
81850Indicator light assembly81850-12180
81850Bpilot light bulb90981-11018
81860Transmission indicator light assembly81860-12050
81860BTransmission indicator light bulb84999-10110
81941Heater controller nameplate55519-12030 · 55519-12031 · 55519-12032 · 55519-12040 · 55519-12041 · 55519-12042 · 55519-12060 · 55519-12061 · 55519-12070 · 55519-12071
