Toyota COROLLA 仪表 — Figure 8301

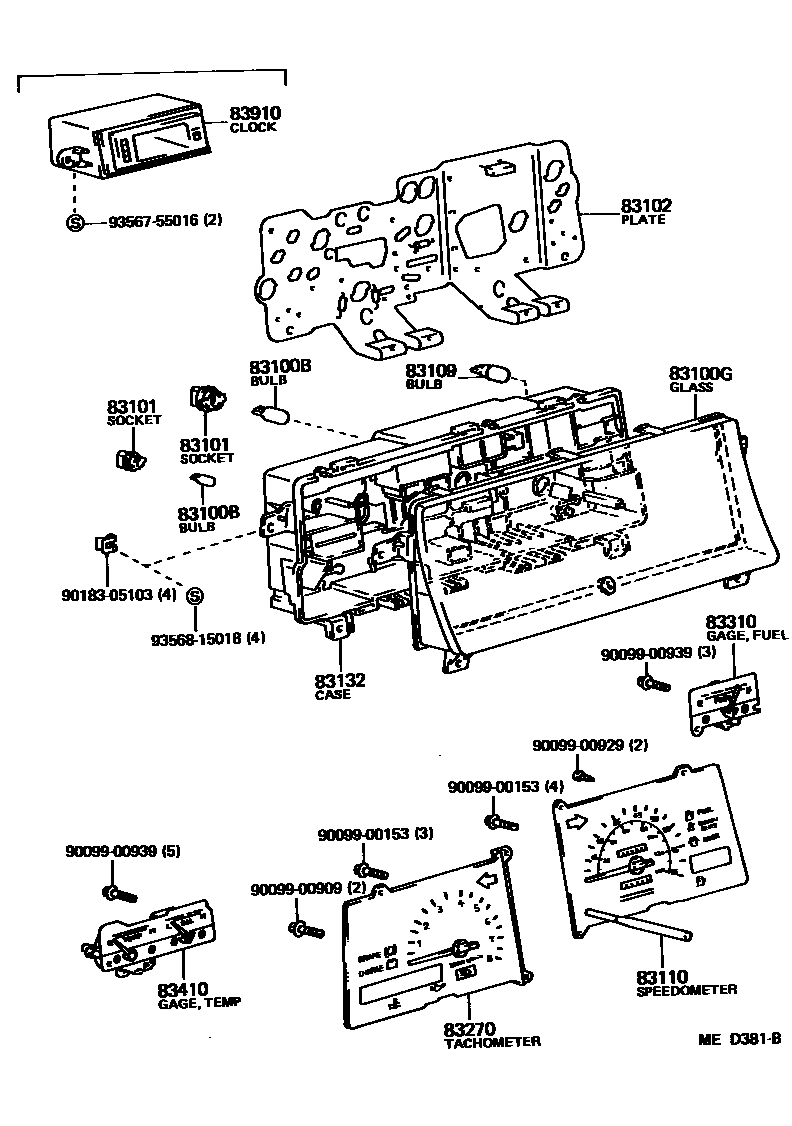

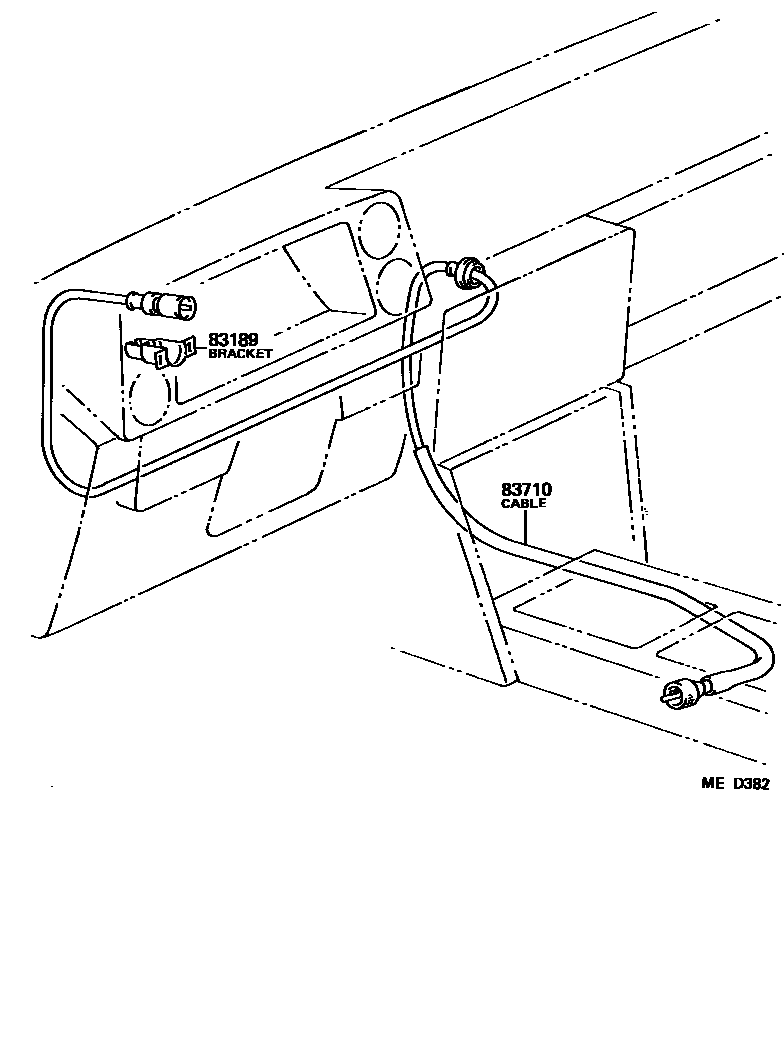

Toyota COROLLA EPC diagram 8301, 仪表, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 90981-11018 · 99132-12034 |
| 83100G | Instrument cluster glass | 83133-12730 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-1E330 · 83247-1E610 · 83247-1E810 |
| 83109 | Combined instrument bulb No. 2 | 83109-12010 · 83109-24030 |
| 83110 | Speedometer assembly | 83110-1A310 · 83110-1A311 · 83110-1A320 · 83110-1A321 · 83110-1A322 · 83110-1A660 · 83110-1A661 · 83110-1A670 · 83110-1A671 · 83110-1A790 |
| 83132 | Instrument cluster housing | 83132-12690 · 83132-12710 |
| 83189 | instrument bracket | 83189-20020 |
| 83270 | Engine tachometer assembly | 83242-12850 · 83242-12851 · 83242-1A050 · 83242-1A051 · 83242-1A090 · 83242-1A091 · 83242-1A110 · 83242-1A111 |
| 83310 | Fuel gauge assembly | 83243-12690 · 83243-12691 |
| 83410 | Water temperature meter assembly | 83244-1A110 · 83244-1A111 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-12240 · 83710-12270 |
| 83910 | clock assembly | 83910-12350 · 83910-12351 |
