Toyota COROLLA 高位刹车灯 — Figure 8117

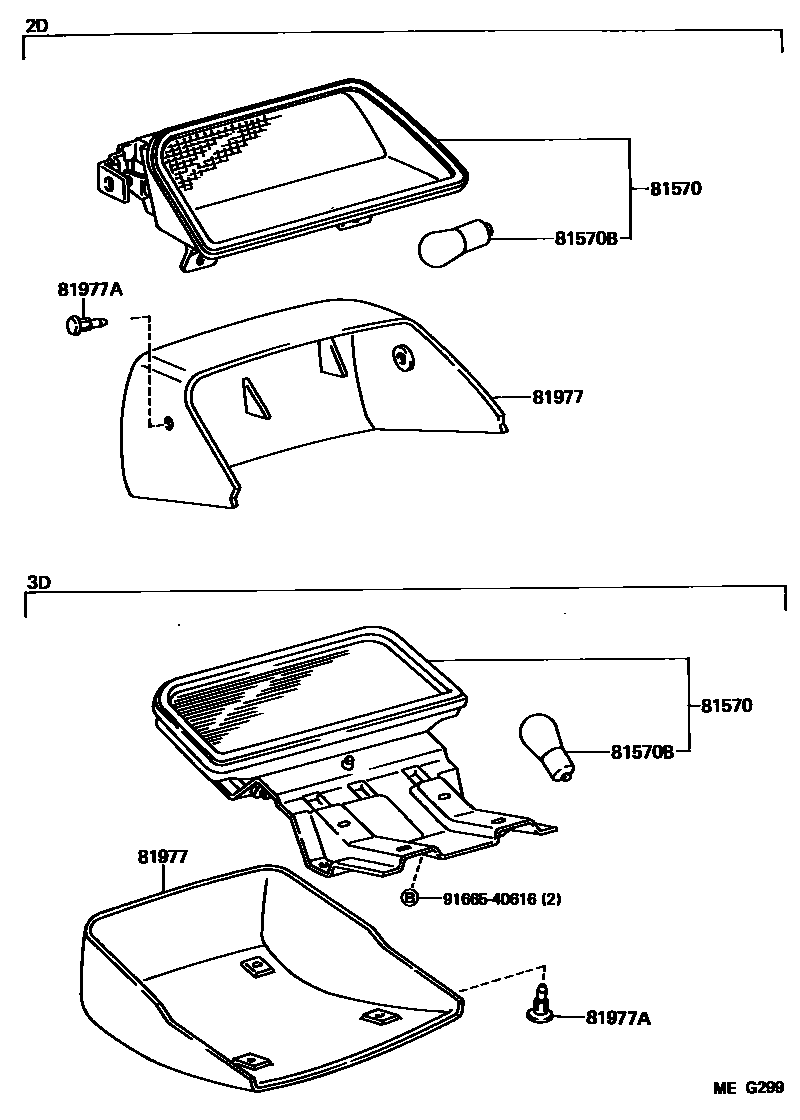

Toyota COROLLA EPC diagram 8117, 高位刹车灯, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81570 | Central brake light assembly | 81570-12030 · 81570-12040 |
| 81570B | Bulb (for center brake light) | 99132-11270 |
