Toyota COROLLA 后组合灯 — Figure 8111

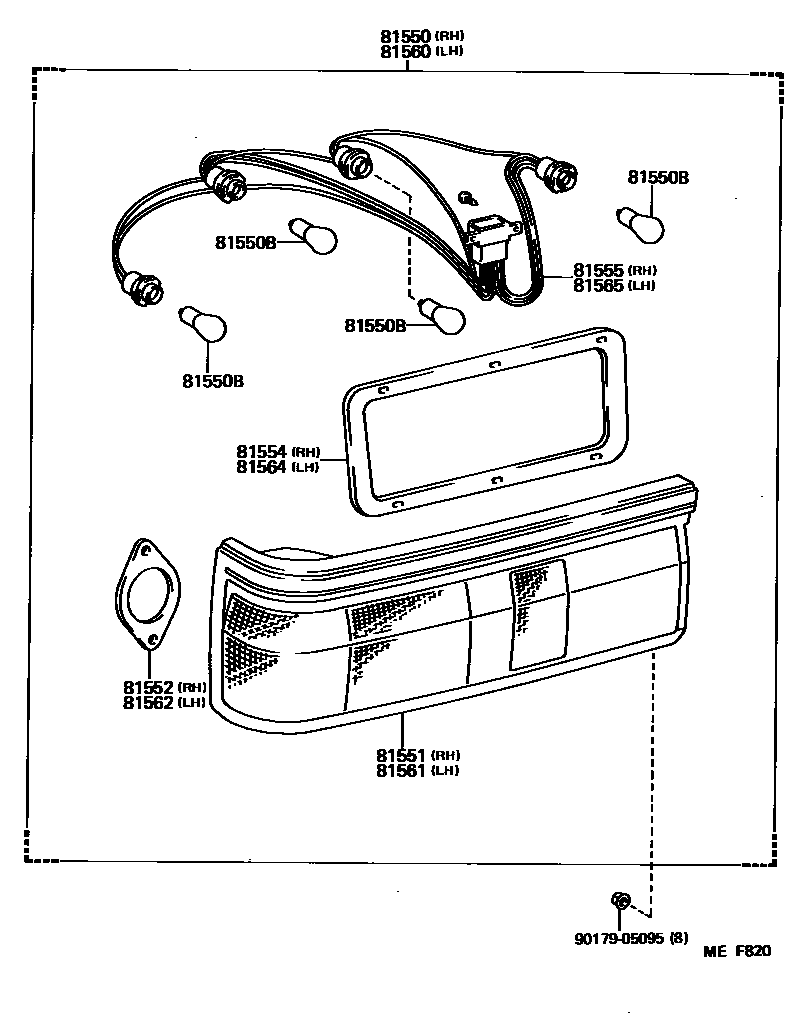

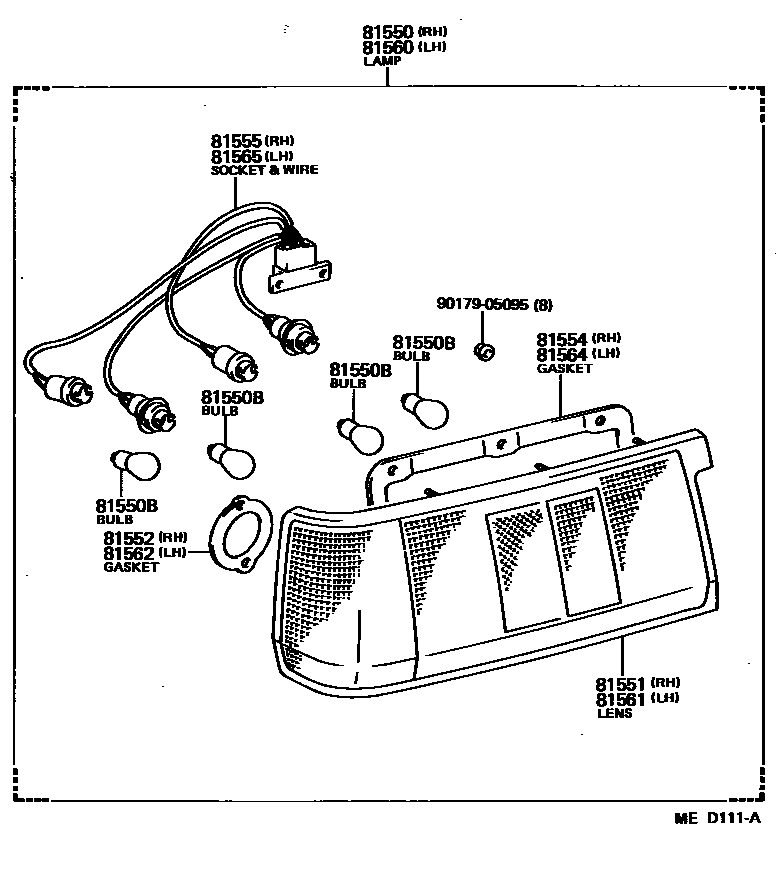

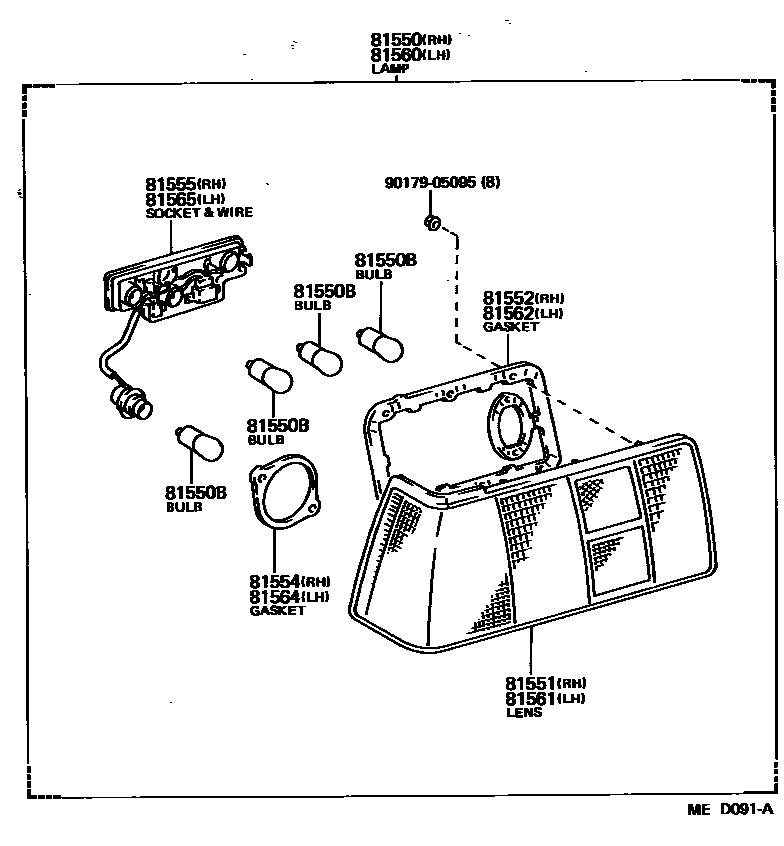

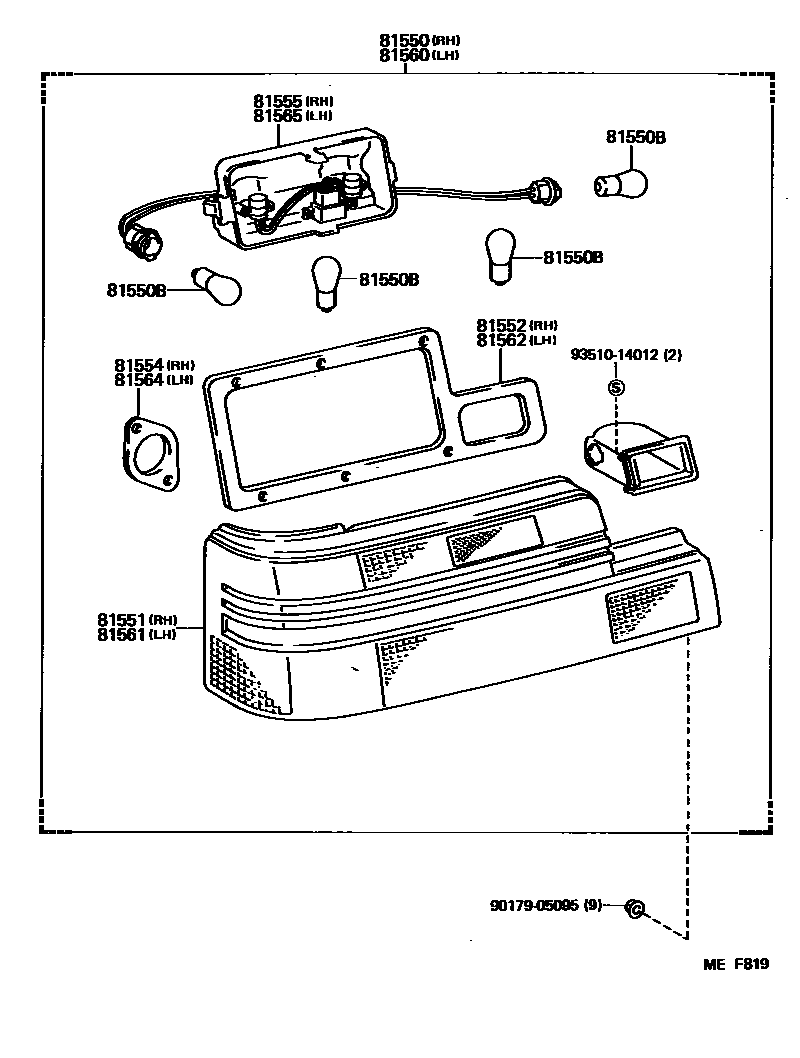

Toyota COROLLA EPC diagram 8111, 后组合灯, with 4 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81550 | Right rear combination light assembly | 81550-1A241 · 81550-1A271 · 81550-80162 · 81550-80165 |
| 81550B | Bulb (for rear combination lights) | 99132-11270 · 99132-21270 |
| 81551 | Right rear combination lamp shade | 81551-1A240 · 81551-1A241 · 81551-1A270 · 81551-1A271 |
| 81552 | Right rear combination lamp shade gasket | 81552-1A260 · 81552-1A261 · 81556-1A230 |
| 81554 | Right rear combination lamp body gasket | 81554-1A230 · 81554-1A260 · 81554-1A261 |
| 81555 | Right rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A240 · 81555-1A241 · 81555-1A270 · 81555-1A271 |
| 81560 | Left rear combination light assembly | 81560-1A241 · 81560-1A271 · 81560-80167 · 81560-80170 |
| 81561 | Left rear combination lamp shade | 81561-1A240 · 81561-1A241 · 81561-1A270 · 81561-1A271 |
| 81562 | Left rear combination lamp shade gasket | 81552-1A260 · 81552-1A261 · 81556-1A230 |
| 81564 | Left rear combination lamp body gasket | 81554-1A230 · 81554-1A260 · 81554-1A261 |
| 81565 | Left rear combination lamp lamp holder and wiring harness sub-assembly | 81555-1A240 · 81555-1A241 · 81565-1A270 · 81565-1A271 |
