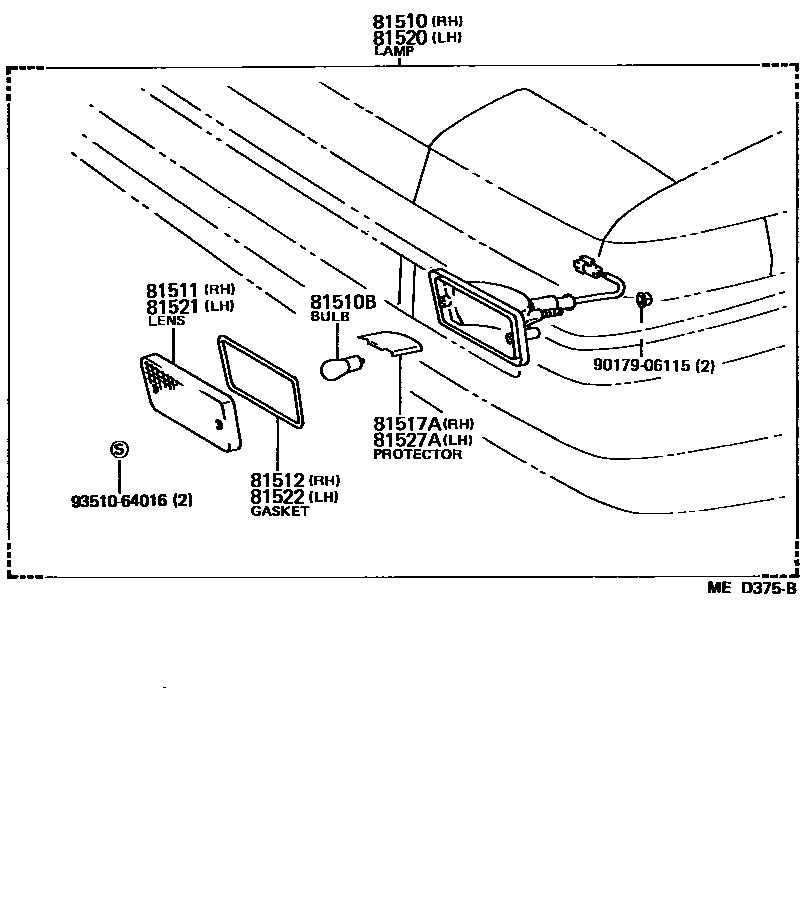

Toyota COROLLA 前转向灯 — Figure 8103
Toyota COROLLA EPC diagram 8103, 前转向灯, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-80006 |
| 81510B | Bulb (for front turn signal lamp) | 99132-21270 |
| 81511 | Right front turn signal lamp cover | 81511-14170 |
| 81512 | Right front turn signal lamp housing gasket | 81512-14150 |
| 81517A | Right front turn signal light protective cover | 81517-14170 |
| 81520 | Left front turn signal lamp assembly | 81520-80006 |
| 81521 | Left front turn signal lamp cover | 81521-14170 |
| 81522 | Left front turn signal lamp housing gasket | 81512-14150 |
| 81527A | Left front turn signal light protective cover | 81517-14170 |
