Toyota COROLLA accelerator pedal connecting rod — Figure 7801

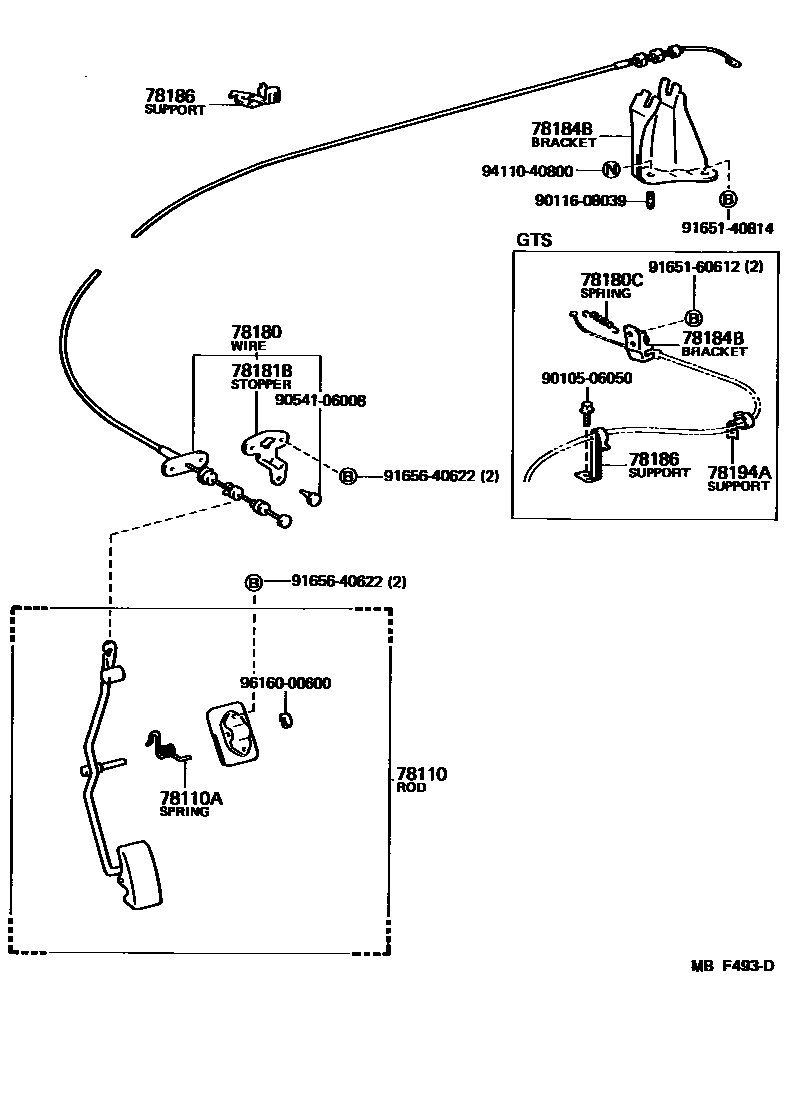

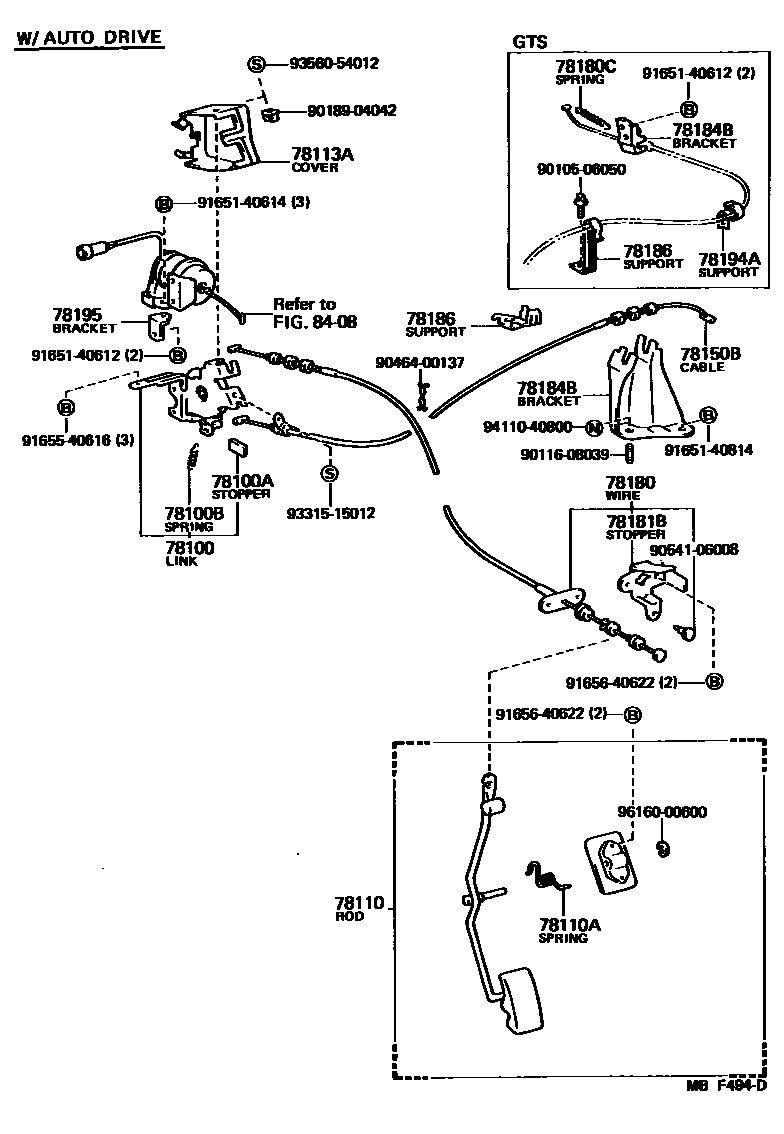

Toyota COROLLA EPC diagram 7801, accelerator pedal connecting rod, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 78100 | Accelerator pedal connecting rod assembly | 78100-12040 · 78100-12070 · 78100-12071 |
| 78100A | Accelerator pedal connecting rod stop | 78118-12010 · 78118-12020 |
| 78100B | Spring (for accelerator pedal linkage) | 90506-08019 |
| 78110 | Accelerator pedal lever assembly | 78010-12120 |
| 78110A | Spring (for accelerator pedal lever) | 90508-18055 · 90508-18398 |
| 78113A | Automatic transmission accelerator pedal connecting rod cover | 78113-12090 · 78113-12100 |
| 78150B | Accelerator pedal automatic transmission cable assembly | 78150-12010 · 78150-12090 |
| 78180 | Throttle cable assembly | 78180-12400 · 78180-12420 · 78180-12430 · 78180-12710 |
| 78180C | Tension spring (for throttle cable) | 90507-11004 |
| 78181B | Accelerator pedal idle speed adjustment stop | 78181-12051 · 78181-12090 |
| 78184B | Throttle pedal control cable bracket | 78184-12140 · 78184-12150 |
| 78186 | No. 1 accelerator pedal control cable bracket | 78186-12140 · 78186-12160 |
| 78194A | No. 4 accelerator pedal control cable bracket | 78194-12050 |
| 78195 | Accelerator pedal connecting rod bracket | 78195-12050 · 78195-12051 |
