Toyota COROLLA 挡泥板和扰流板 — Figure 7601

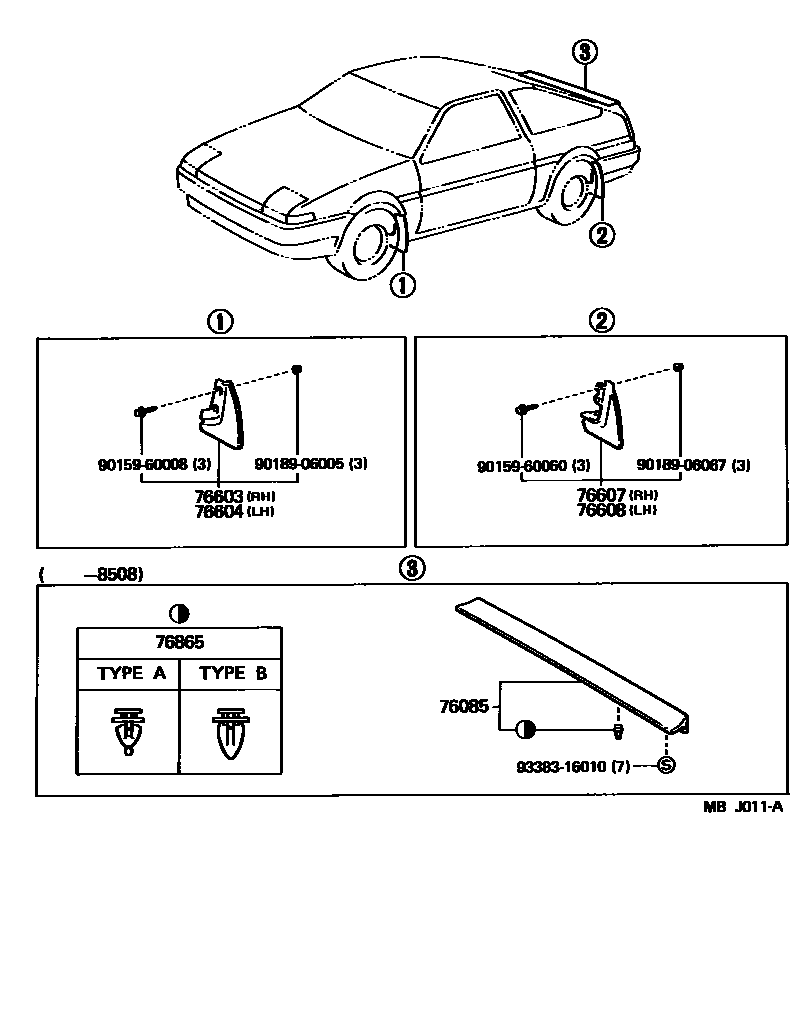

Toyota COROLLA EPC diagram 7601, 挡泥板和扰流板, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 76085 | Rear spoiler sub-assembly | 76085-12010 |
| 76603 | Right front fender fender sub-assembly | 76621-19075 · 76621-19076 |
| 76604 | Left front fender fender sub-assembly | 76622-19075 · 76622-19076 |
| 76607 | Right rear side fender sub-assembly | 76607-19185 |
| 76608 | Left rear side fender sub-assembly | 76608-19185 |
| 76865 | No. 1 rear spoiler fixing piece | 76865-12020 · 76865-12040 |
