Toyota COROLLA 侧防护条 — Figure 7503

Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 29 PNC and OE references.

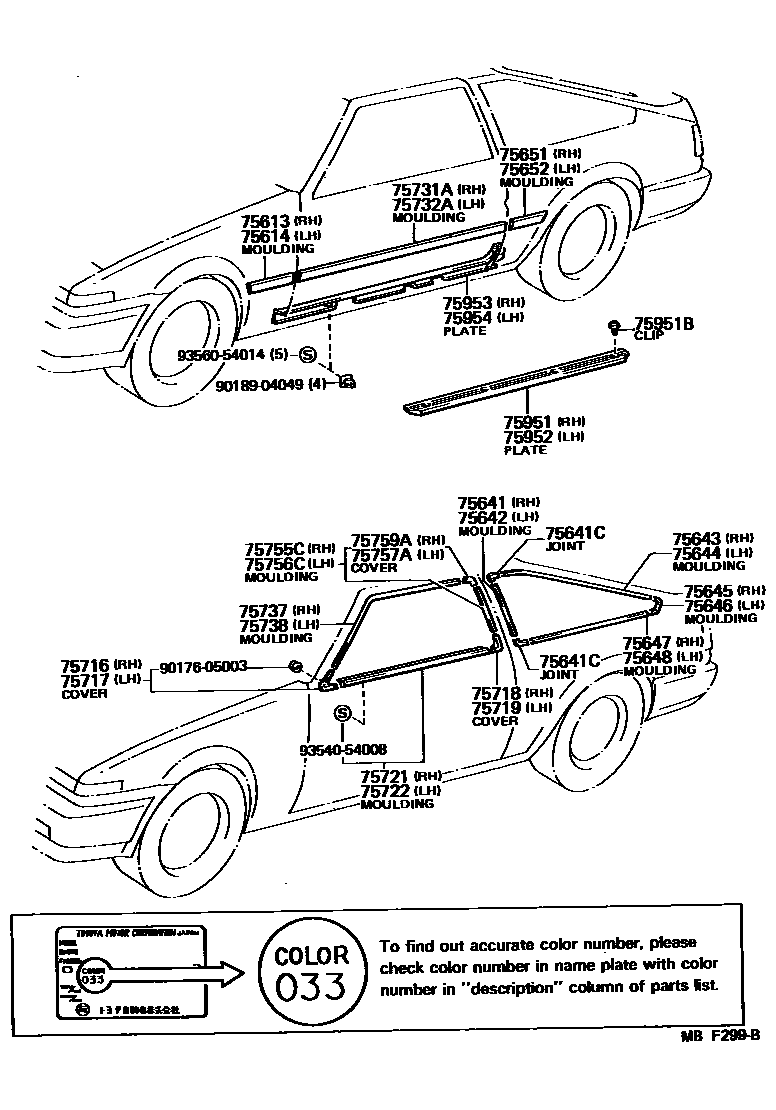

Toyota COROLLA 侧防护条 EPC diagram — MBF299B
侧防护条 — MBF299B (198308 – 999999)

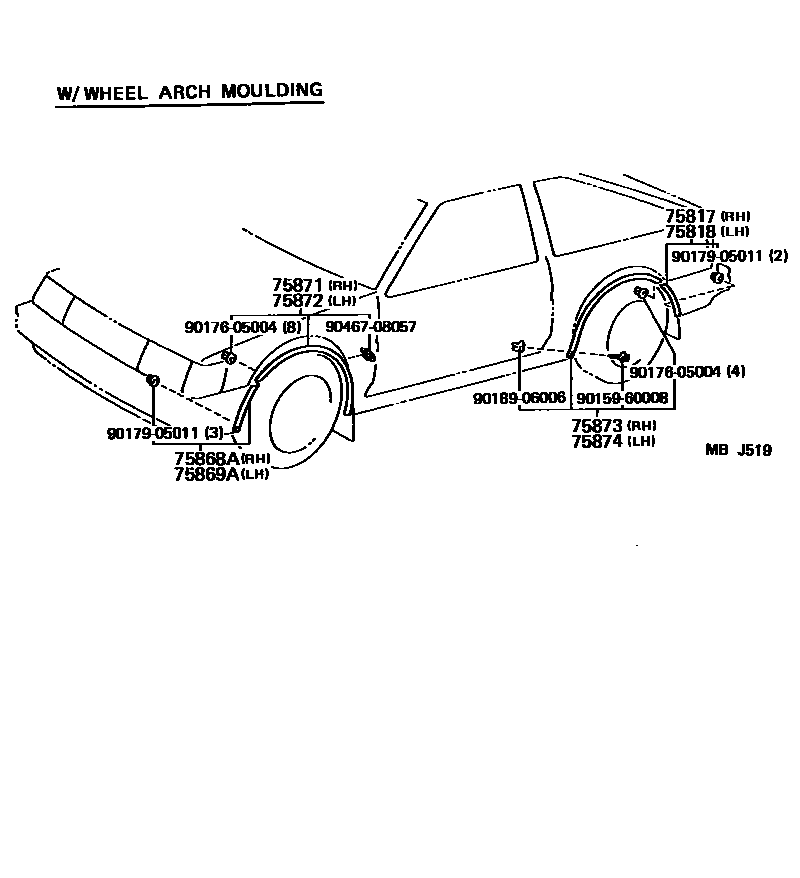

Toyota COROLLA 侧防护条 EPC diagram — MBJ519
侧防护条 — MBJ519 (198508 – 999999)

PNC and OE references

PNCPart nameOE numbers
75641Right front corner window outer protective strip75641-12100 · 75641-12110
75641CCorner window protective strip joint76651-12031 · 76651-12041 · 76652-12031 · 76652-12041 · 76653-12031 · 76653-12041 · 76654-12031 · 76654-12041
75642Left front corner window protection strip75642-12100 · 75642-12110
75643Protective strip on the outside of the right corner window75643-12030 · 75643-12040
75644Protective strip on the outside of the left corner window75644-12030 · 75644-12040
75645Right rear corner window protection strip75645-12031 · 75645-12041
75646Left rear corner window protection strip75646-12031 · 75646-12041
75647Right corner window outer lower protective strip75647-12030 · 75647-12040
75648Left corner window outer lower protective strip75648-12030 · 75648-12040
75716Right front door waistline front protective strip end cover75716-19015
75717Left front door waistline front protective strip end cover75717-19015
75718Right front door waistline rear protective strip end cover75718-12030
75719Left front door waistline rear protective strip end cover75719-12010
75721Right front door waistline protection strip75710-19175
75722Left front door waistline protection strip75720-19175
75737Right front door window frame front protective strip75751-12140
75738Left front door window frame front protective strip75752-12140
75755CRight front door window frame rear protective strip75755-12060
75756CLeft front door window frame rear protective strip75756-12080
75757ALeft front door window frame rear protective strip joint cover75757-12040
75759ARight front door window frame rear protective strip joint cover75759-12040
75817No. 2 right side panel wheel opening protective strip75817-19015
75818No. 2 left side enclosure wheel opening protective strip75818-19015
75868ANo. 2 right front fender wheel opening protective strip75868-19025
75869ANo. 2 left front fender wheel opening protective strip75869-19025
75871Right front fender wheel well protection strip75871-19195
75872Left front fender wheel well protection strip75872-19195
75873Right side panel wheel mouth protection strip75873-19115
75874Left side panel wheel mouth protection strip75874-19115
