Toyota COROLLA 扶手和遮阳板 — Figure 7401

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 3 images and 2 PNC and OE references.

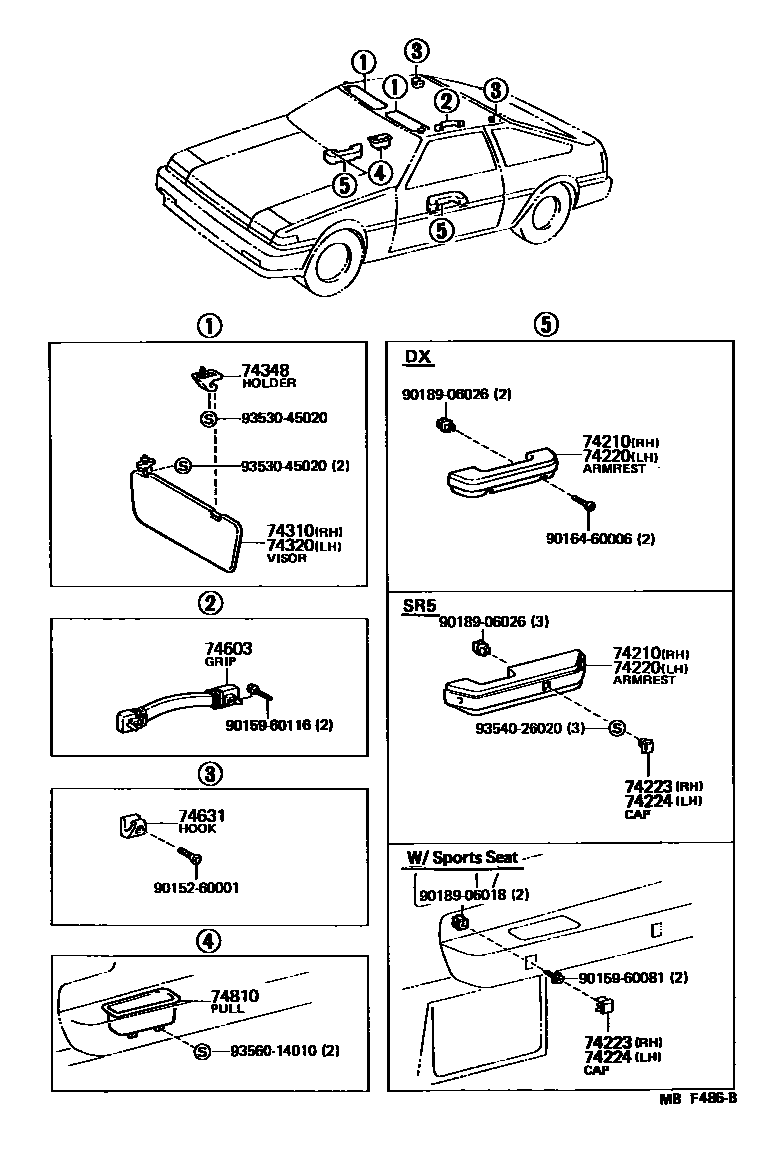

Toyota COROLLA 扶手和遮阳板 EPC diagram — MBF486B
扶手和遮阳板 — MBF486B (198308 – 198508)

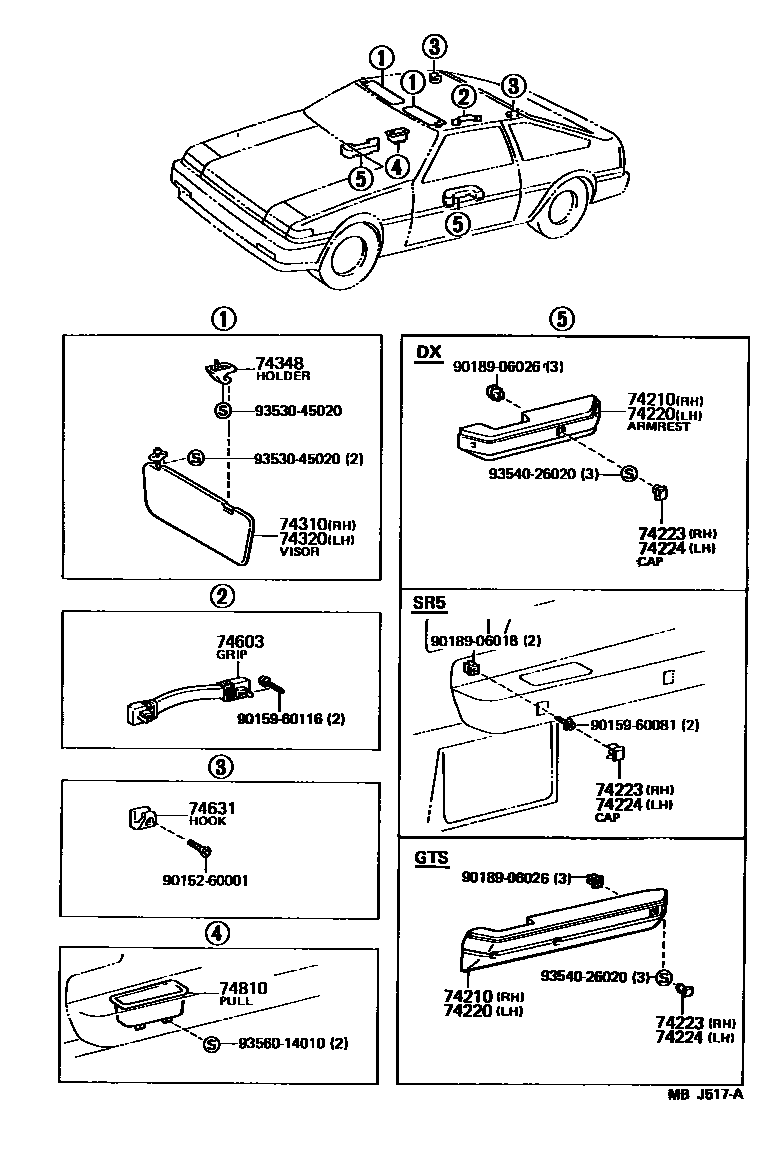

Toyota COROLLA 扶手和遮阳板 EPC diagram — MBJ517A
扶手和遮阳板 — MBJ517A (198508 – 198608)

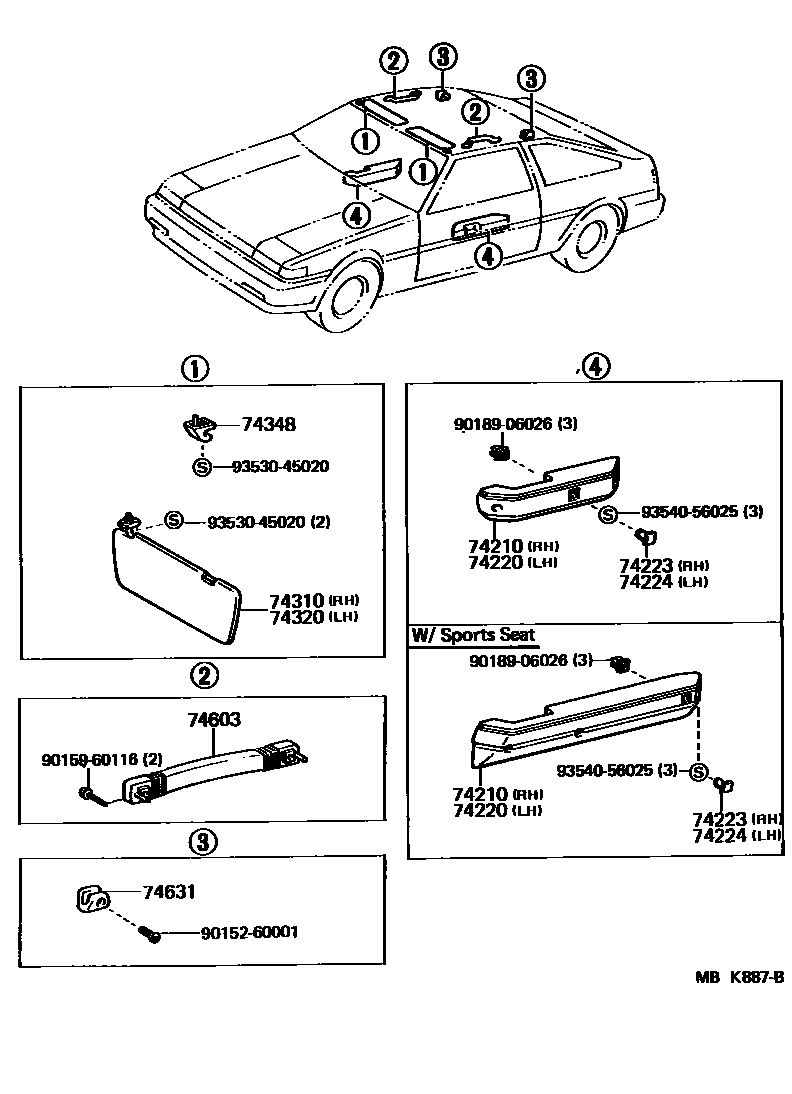

Toyota COROLLA 扶手和遮阳板 EPC diagram — MBK887B
扶手和遮阳板 — MBK887B (198608 – 999999)

PNC and OE references

PNCPart nameOE numbers
74310Right sun visor assembly74310-12310 · 74310-12320 · 74310-12330
74320Left sun visor assembly74320-12260
