Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

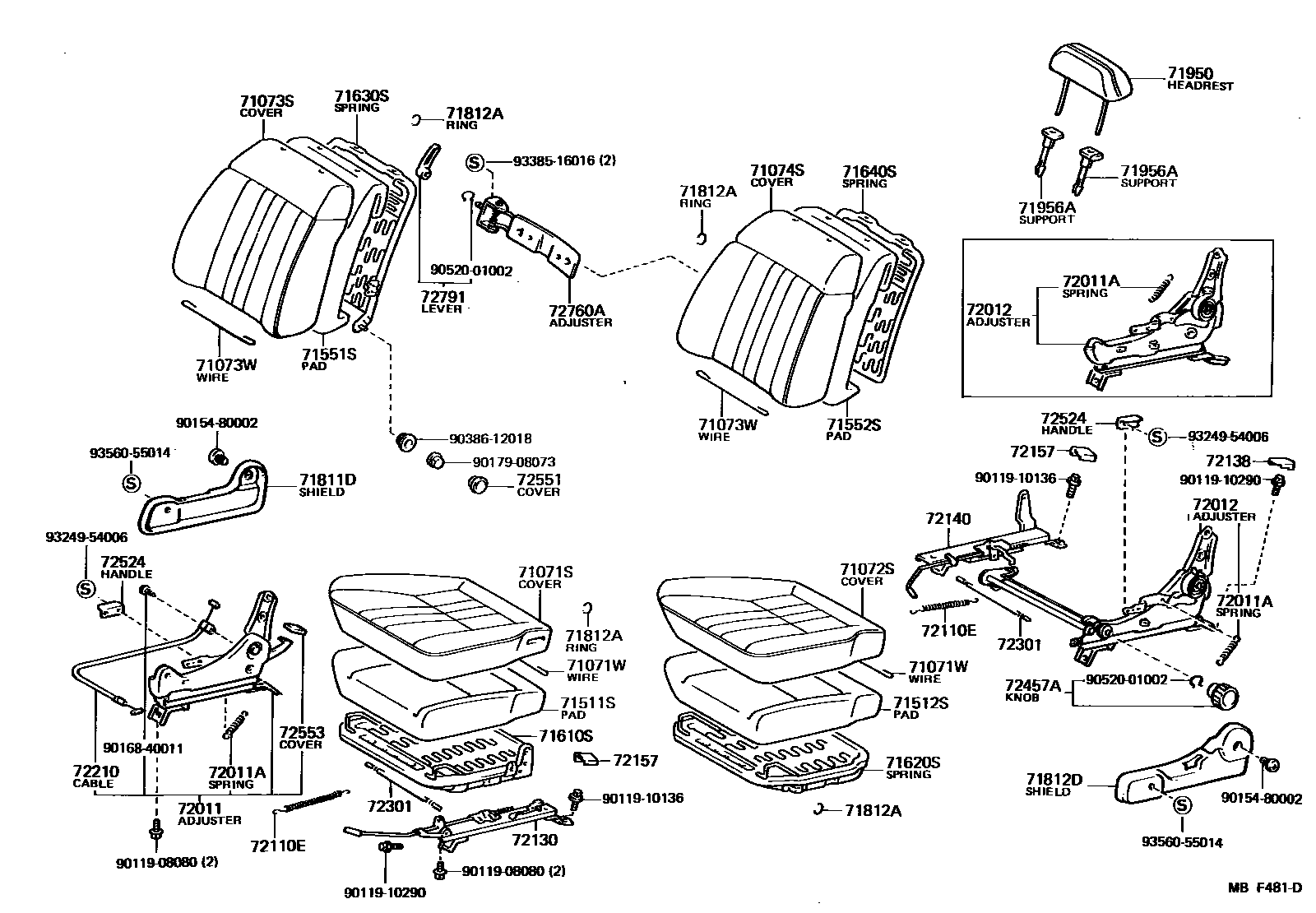

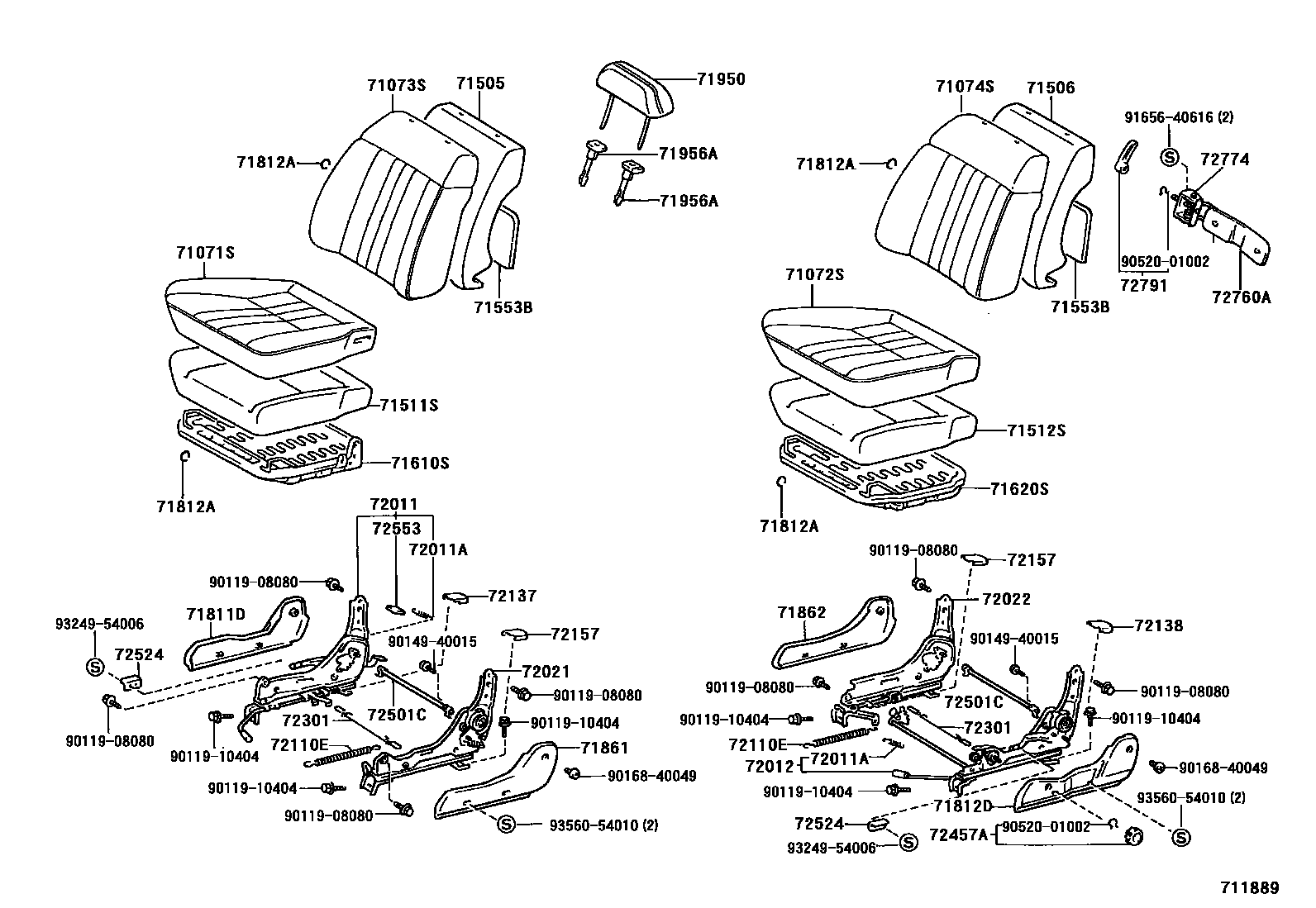

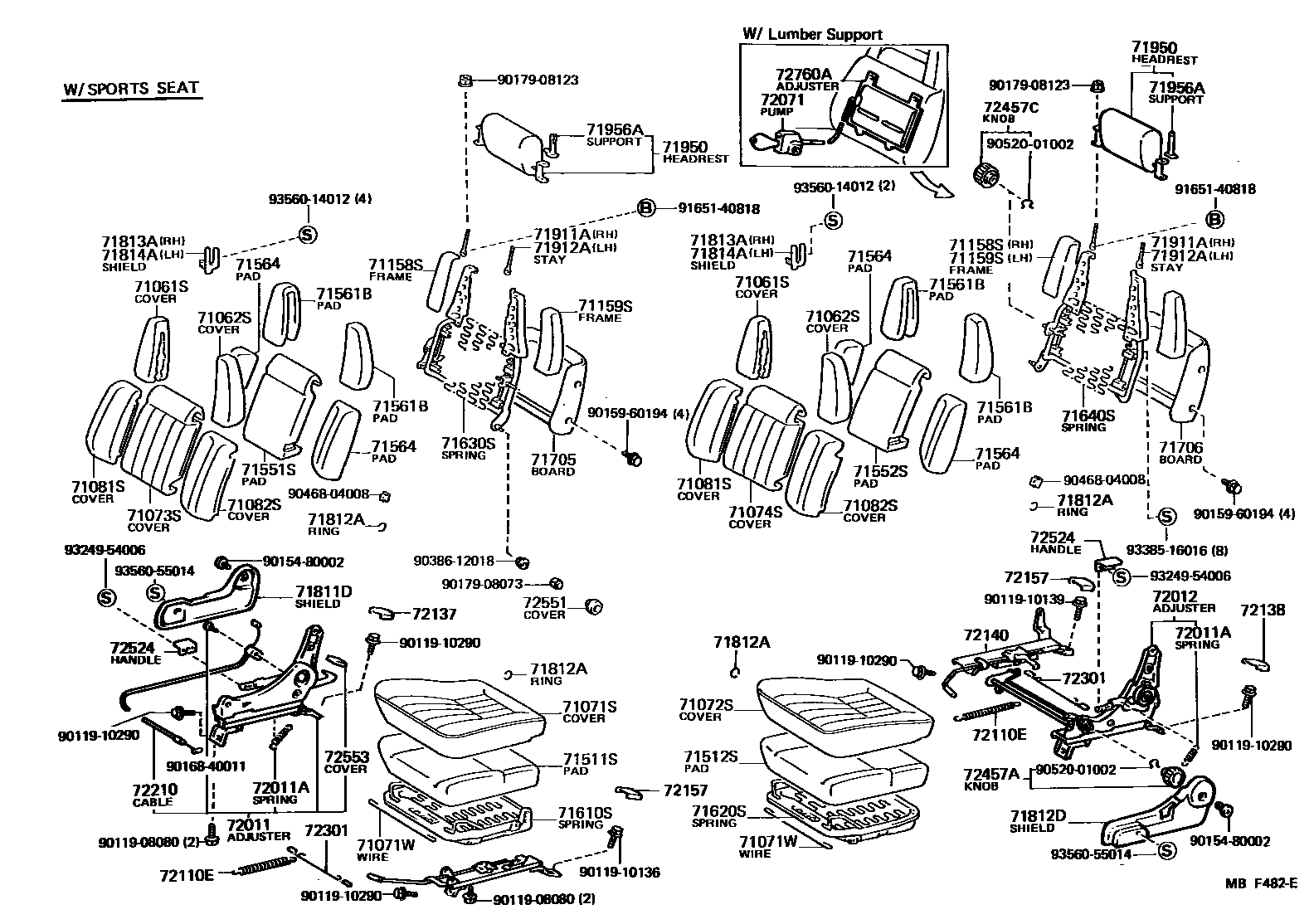

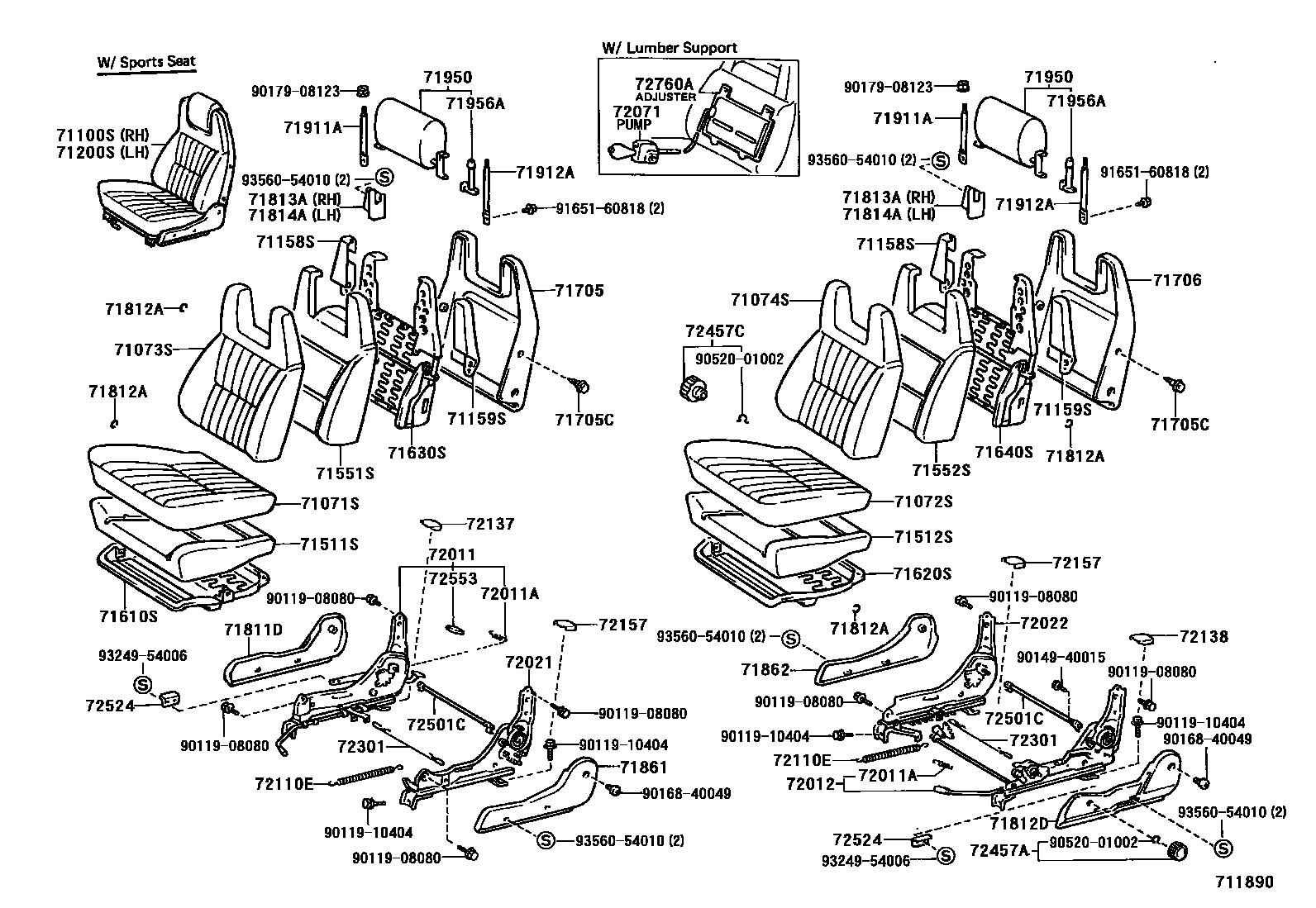

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 40 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71071S | Front right seat cushion cover (for split seats) | 71071-1E320 |
| 71071W | Front seat cushion protective wire | 90580-20019 · 90580-20103 |
| 71072S | Front left seat cushion cover (for split seats) | 71072-1E100 · 71072-1E110 |
| 71073S | Front right seat back cover (for split seats) | 71073-1E600 |
| 71073W | Front seat back cover wire | 90580-20020 |
| 71074S | Front left seat back cover (for split seats) | 71074-1A540 |
| 71158S | Front right seat back frame | 71158-12060 · 71158-20130 |
| 71159S | Front left seat back frame | 71159-12040 · 71159-20080 |
| 71505 | Front right seat back cushion sub-assembly with frame | 71505-12010 |
| 71506 | Front left seat back cushion sub-assembly with frame | 71505-12010 · 71506-12010 |
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12460 · 71511-12550 · 71511-14140 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12460 · 71511-12550 · 71511-14140 |
| 71551S | Front right seat back cushion (for split seats) | 71551-12410 · 71551-12420 · 71551-12520 |
| 71552S | Front left seat back cushion (for split seats) | 71551-12410 · 71551-12420 · 71551-12520 |
| 71553B | Front B seat back cushion | 71553-12180 |
| 71561B | Padded front seat backrest | 71561-12180 · 71562-12040 |
| 71564 | Front seat backrest side cushions | 71563-12050 · 71564-12010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12200 · 71610-12201 · 71610-12210 · 71610-12211 · 71610-12240 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12180 · 71620-12181 · 71620-12200 · 71620-12210 · 71620-12220 · 71620-12230 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12280 · 71630-12290 · 71630-12340 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-12220 · 71640-12240 · 71640-12250 · 71640-12310 |
| 71812A | Small clamp ring (for front seats) | 90468-18071 |
| 71911A | Front right seat headrest stay | 71911-14050 |
| 71912A | Front left seat headrest stay | 71912-14040 |
| 72011 | Front right seat outer adjuster sub-assembly | 72010-12270 · 72010-12340 · 72011-12010 · 72011-12100 |
| 72011A | Tension spring (for front seat outer adjusters) | 90506-14039 · 90506-18015 |
| 72012 | Front left seat outer adjuster sub-assembly | 72012-12070 · 72012-12080 · 72012-12090 · 72020-12280 · 72020-12350 · 72020-12360 |
| 72021 | Front right seat inner adjuster sub-assembly | 72021-12010 · 72021-12110 |
| 72022 | Front left seat inner adjuster sub-assembly | 72022-12090 · 72022-12100 · 72022-12110 |
| 72110E | No. 1 tensioning spring (for seat slide rail) | 90506-18020 |
| 72130 | Right seat inner slide rail assembly | 72130-12370 |
| 72138 | Left seat outer slide rail cover | 72138-12020 |
| 72140 | Left seat inner slide rail assembly | 72140-12340 · 72140-12350 |
| 72210 | Seat slide rail control cable assembly | 72210-12100 |
| 72301 | Seat slide rail balance harness sub-assembly | 72301-12010 · 72301-12050 |
| 72501C | Seat back recline adjuster connecting pipe sub-assembly | 72501-12040 |
| 72551 | Seat No. 1 backrest tilt hinge cover | 72551-12070 |
| 72553 | Seat back tilt pedal cover | 72553-12040 |
| 72760A | Lumbar support adjuster assembly | 72760-12010 · 72760-12030 · 72760-12060 · 72760-20030 |
| 72774 | Lumbar support spring guard | 72775-12010 |
