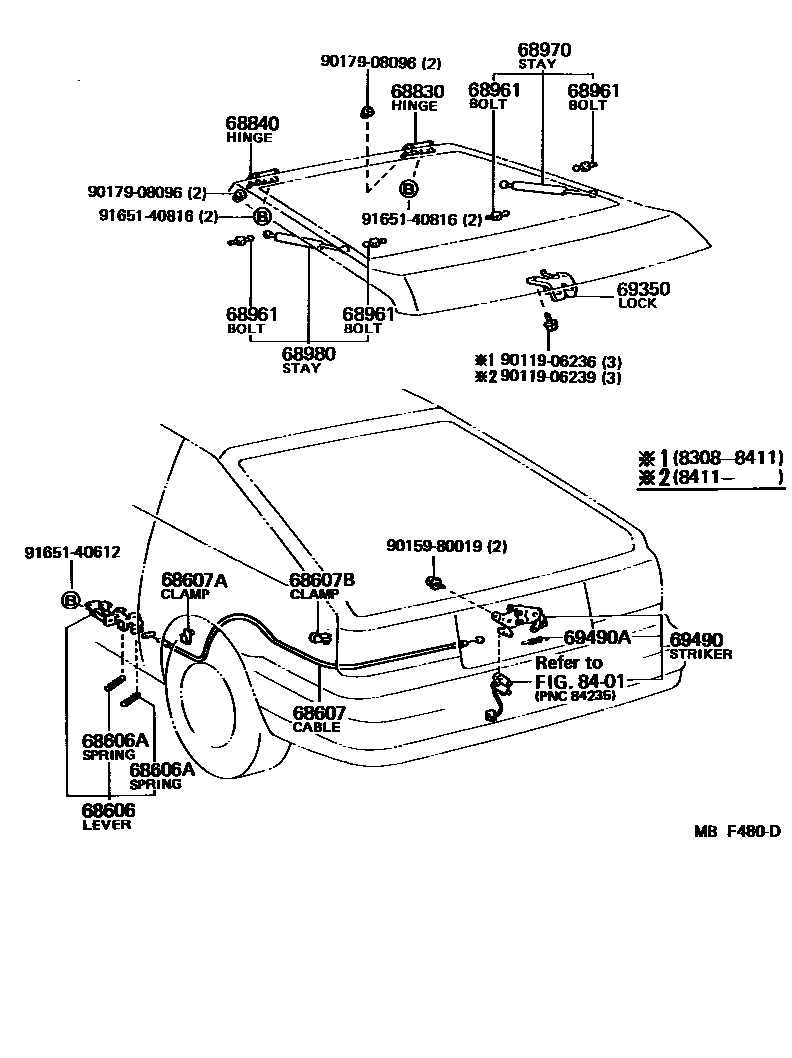

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68606 | Rear door lock opening lever sub-assembly | 64606-12070 |
| 68606A | Tension spring (for the rear door lock opening lever) | 90506-09004 |
| 68607 | Rear door lock control cable sub-assembly | 64607-12240 |
| 68607A | Clip No. 1 (for rear door lock control cable) | 90467-12009 |
| 68607B | Clip No. 2 (for rear door lock control cable) | 90463-10338 |
| 68830 | Back door right hinge assembly | 68801-20020 |
| 68840 | Back door left hinge assembly | 68801-20020 |
| 68961 | Rear door support rod bolts | 68961-14020 · 68961-16010 · 68961-20051 |
| 68970 | Back door right support rod assembly | 68950-19435 · 68950-19445 · 68950-19455 · 68950-19465 |
| 68980 | Back door support rod assembly | 68950-19435 · 68950-19445 · 68950-19455 · 68950-19465 |
| 69350 | Rear door lock assembly | 69350-12060 |
| 69490 | Back door lock assembly | 69430-12190 · 69430-12191 |
| 69490A | Spring (for rear door latch) | 90506-18052 |
