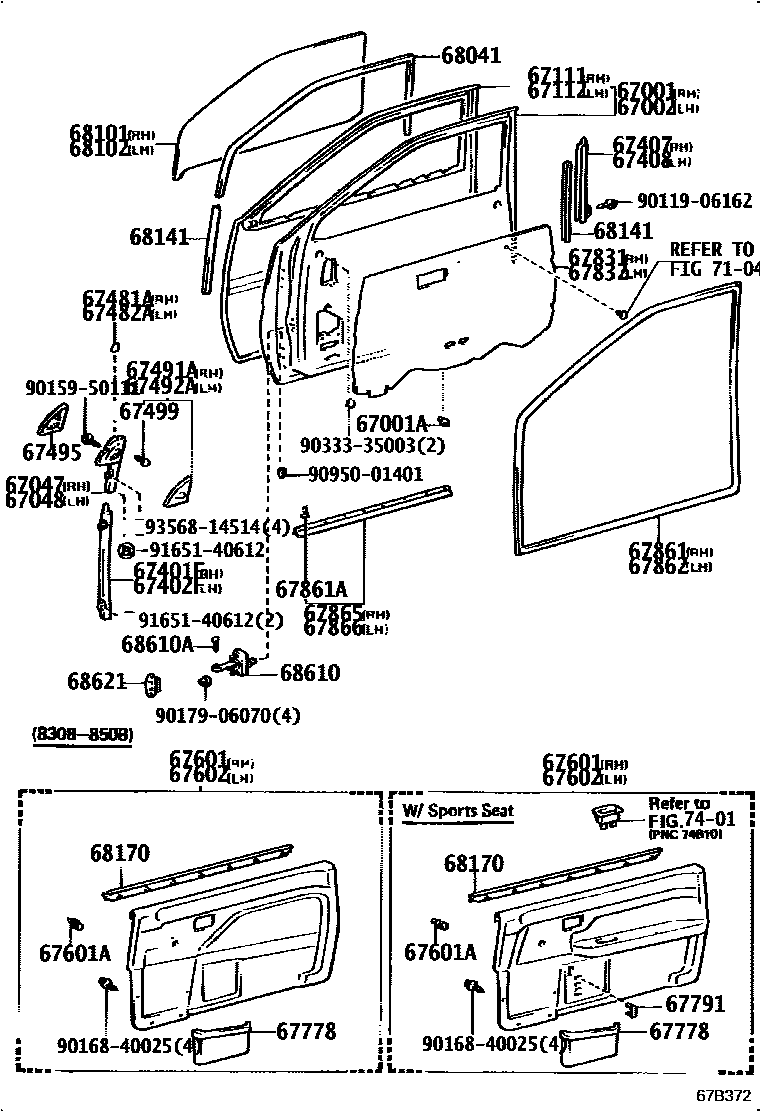

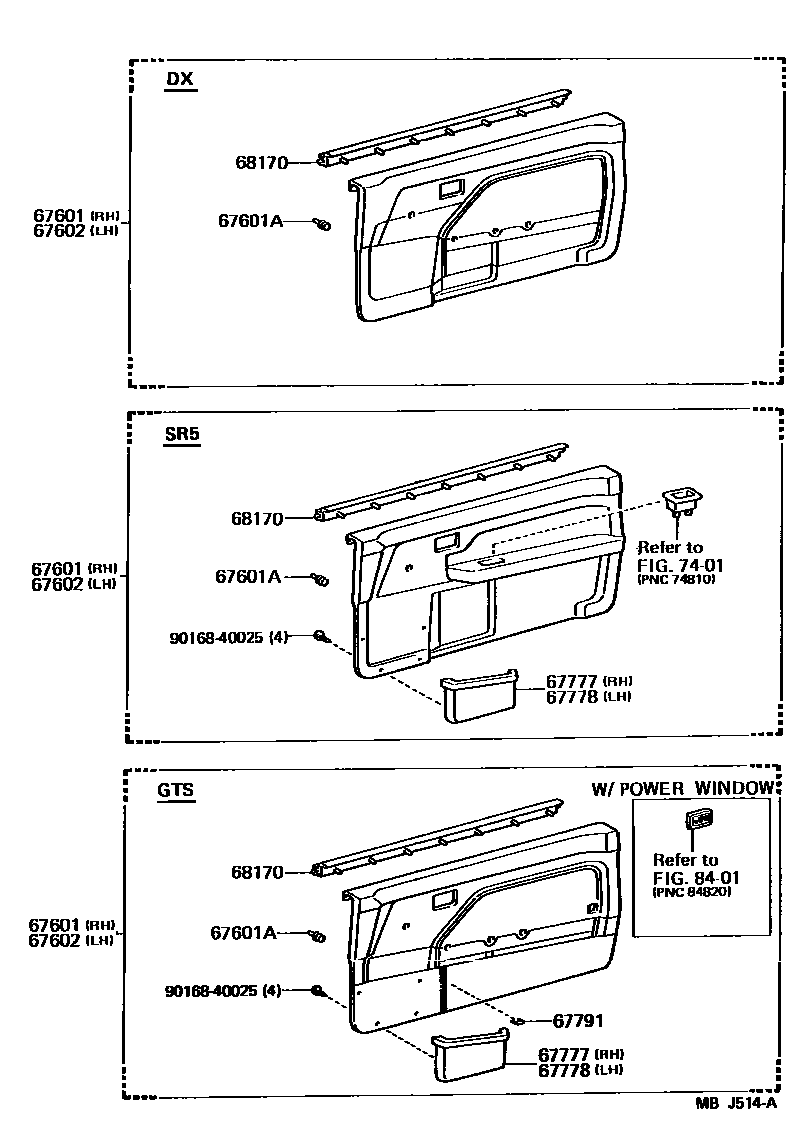

Toyota COROLLA 前门板和前门玻璃 — Figure 6701
Toyota COROLLA EPC diagram 6701, 前门板和前门玻璃, with 2 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67001 | Right front door panel sub-assembly | 67001-12720 |
| 67001A | Front door panel cushion | 90541-09006 |
| 67002 | Left front door panel sub-assembly | 67002-12700 |
| 67047 | Right front door lower door frame bracket sub-assembly | 67047-12010 · 67047-12020 |
| 67048 | Left front door lower door frame bracket sub-assembly | 67048-12010 · 67048-12020 |
| 67111 | Outer right front door panel | 67111-12370 |
| 67112 | Outer left front door panel | 67112-12360 |
| 67401F | Right front door front lower door frame sub-assembly | 67401-12180 · 67401-12181 |
| 67402F | Left front door front lower door frame sub-assembly | 67402-12170 · 67402-12171 |
| 67407 | Right front door rear lower door frame sub-assembly | 67403-12040 · 67403-12070 · 67403-12071 |
| 67408 | Left front door rear lower door frame sub-assembly | 67404-12040 · 67404-12070 · 67404-12071 |
| 67481A | Right front door front lower door frame seal | 67481-12170 |
| 67482A | Left front door front lower door frame seal | 67481-12170 |
| 67491A | Right front door lower door frame bracket decorative strip | 67491-12070 · 67491-12080 |
| 67492A | Left front door lower door frame bracket decorative strip | 67492-12070 · 67492-12080 |
| 67495 | Front door lower door frame upper cover | 67495-12040 · 67495-12090 |
| 67499 | Front door lower door frame bracket trim strip fixing | 67499-30010 |
| 67601A | Fixings (for front door trim) | 67771-16020 |
| 67791 | Front door pocket fixings | 67791-12010 |
| 67831 | Right front door access hole cover | 67831-12260 |
| 67832 | Left front door access hole cover | 67832-12130 · 67832-12170 |
| 67861 | Right front door seal | 67861-12470 |
| 67861A | Fixing piece (for front door sealing strip) | 67868-30040 |
| 67862 | Left front door seal | 67861-12470 |
| 67865 | Right front door lower sealing strip | 67853-12010 |
| 67866 | Left front door lower seal | 67853-12010 |
| 68041 | Front door glass lift channel sub-assembly | 68141-12170 · 68151-12020 |
| 68101 | Right front door glass sub-assembly | 68111-12440 |
| 68102 | Left front door glass sub-assembly | 68112-12440 |
| 68141 | Front door glass lift chute | 68143-12060 · 68143-12061 · 68143-12070 |
| 68170 | Front door glass inner sealing strip assembly | 68170-12230 · 68220-12160 |
| 68610 | Front door opening limiter assembly | 68610-12040 |
| 68610A | Pin (for front door opening limiter) | 68617-30010 · 68617-90A00 |
| 68621 | Door opening limiter seal | 68621-12010 |
