Toyota COROLLA 内饰板和车门防水胶条 — Figure 6401

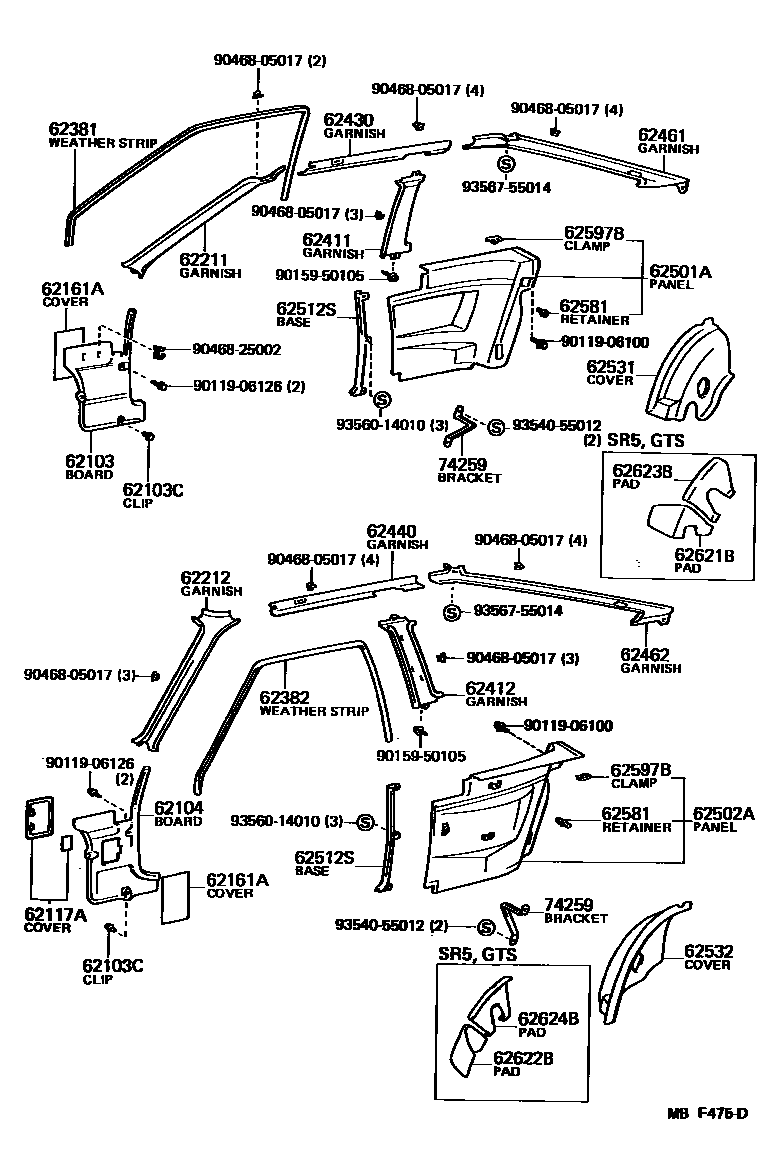

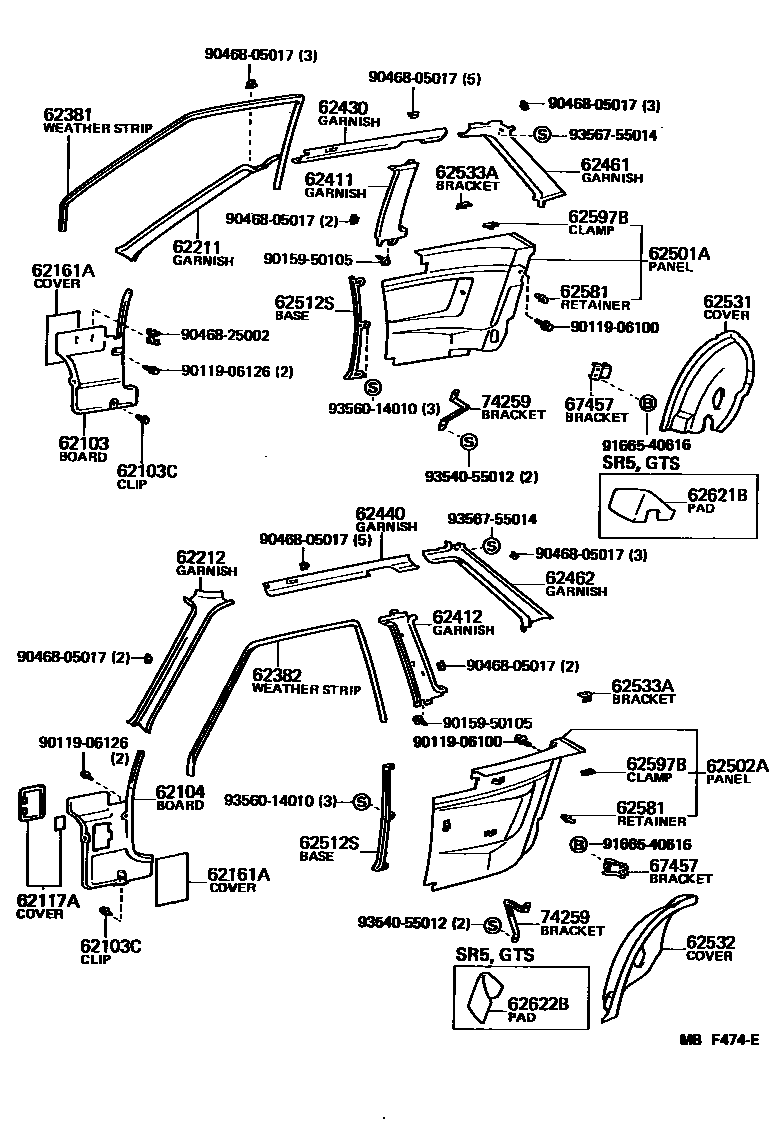

Toyota COROLLA EPC diagram 6401, 内饰板和车门防水胶条, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62161A | Front wall side trim panel access hole cover | 62161-12050 |
| 62381 | Right front roof rail sealing strip | 62381-12160 |
| 62382 | Left front roof rail sealing strip | 62382-12170 |
| 62533A | Side decorative panel clip bracket | 62533-12100 |
| 62581 | Side panel decorative panel fixings | 67771-12020 · 67771-16020 · 67771-22010 |
| 62597B | Side decorative panel clip | 62597-12030 |
| 62621B | Right front side wheel housing lining block | 62621-12040 |
| 62622B | Left front side wheel housing lining block | 62622-12010 |
| 62623B | Right rear side wheel housing lining block | 62623-12010 |
| 62624B | Left rear side wheel housing lining block | 62624-12010 |
| 67457 | Side panel rear rail upper bracket | 67457-12040 |
| 74259 | Rear armrest bracket | 74259-12010 |
