Toyota COROLLA 中央扶手箱和支架 — Figure 5806

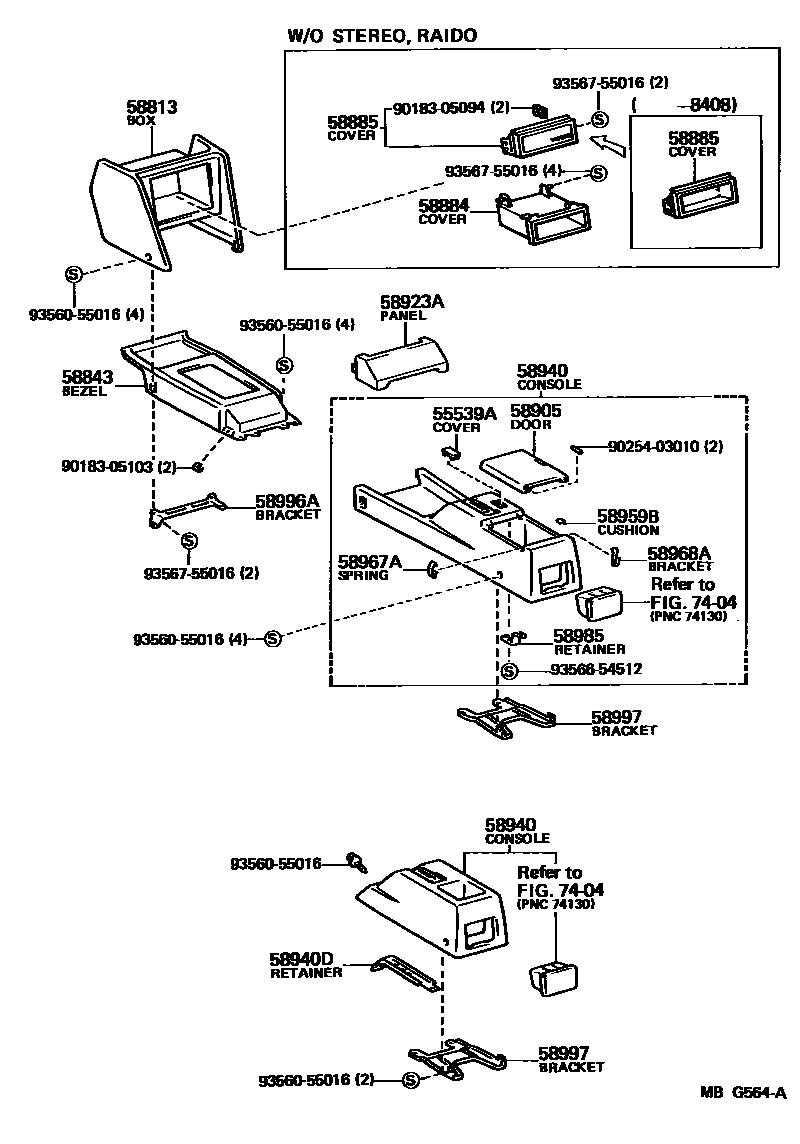

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58884 | stereo system hole cover | 55521-16010 |
| 58885 | Armrest box opening cover | 55522-14080 · 55522-32010 |
| 58905 | Armrest box cover sub-assembly | 58951-12100 · 58951-12101 |
| 58940D | Parking brake hole cover fixing | 58943-12030 |
| 58959B | Armrest box cover cushion | 58959-16010 |
| 58967A | Armrest box cover limit spring | 58967-12010 |
| 58968A | Armrest box cover stop bracket | 58968-12010 |
| 58985 | Armrest box fixing bracket | 58985-12020 |
| 58996A | Armrest box No. 2 mounting bracket | 58996-12040 |
| 58997 | Armrest box No. 3 mounting bracket | 58997-12050 |
