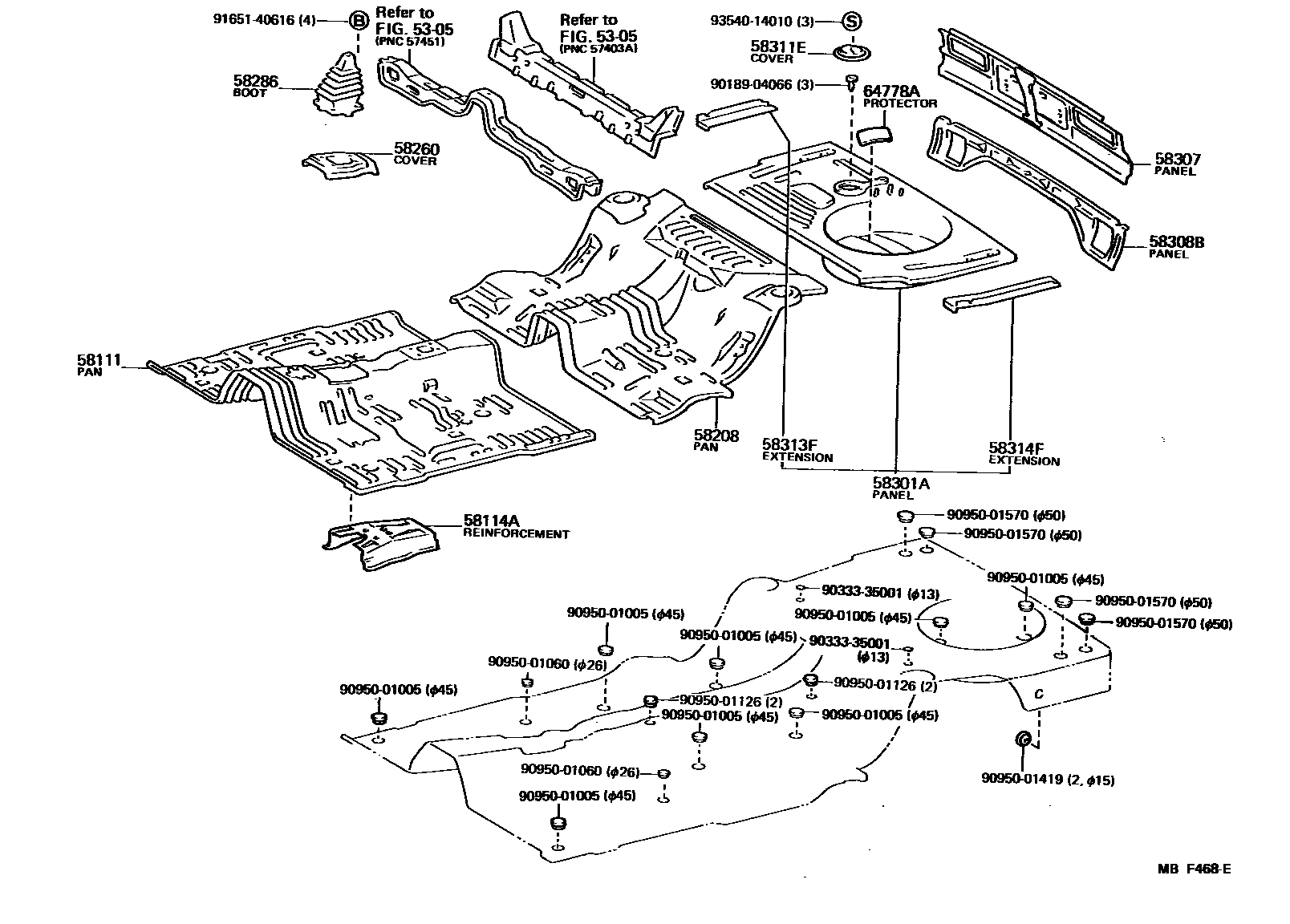

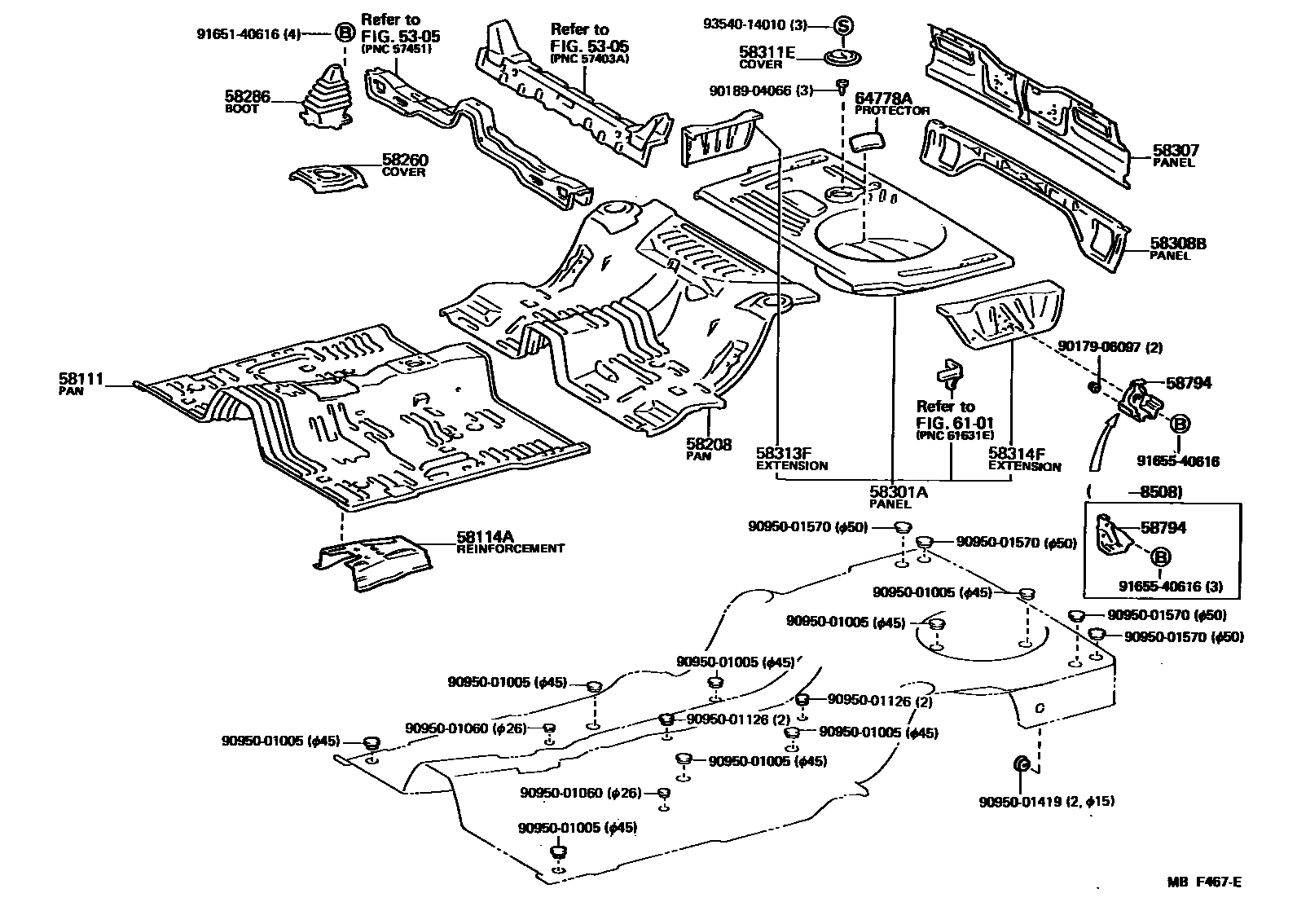

Toyota COROLLA 浅盘形地板和车身下背板 — Figure 5801
Toyota COROLLA EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58111 | front floor pan | 58111-12160 |
| 58114A | front floor reinforcement | 58114-12010 |
| 58208 | central floor base | 58211-12160 |
| 58260 | Transmission front cover assembly | 58281-12030 · 58281-12040 |
| 58286 | No. 1 shift lever dust cover | 58280-12120 |
| 58301A | Rear floor sub-assembly | 58301-12170 · 58301-12210 · 58301-12211 |
| 58307 | Body lower back panel sub-assembly | 58307-12740 · 58307-12741 · 58307-12790 · 58307-12791 |
| 58308B | Tailgate sub-assembly | 58308-12110 |
| 58311E | Rear floor access hole cover | 58325-16030 |
| 58313F | Rear floor pan to right side apron extension | 58313-12140 · 58313-12160 |
| 58314F | Rear floor pan to left side apron extension | 58303-12060 · 58303-12061 · 58314-12140 |
| 58794 | jack bracket | 58791-12080 · 58791-12081 |
| 64778A | Spare tire protection device | 64778-12020 |
