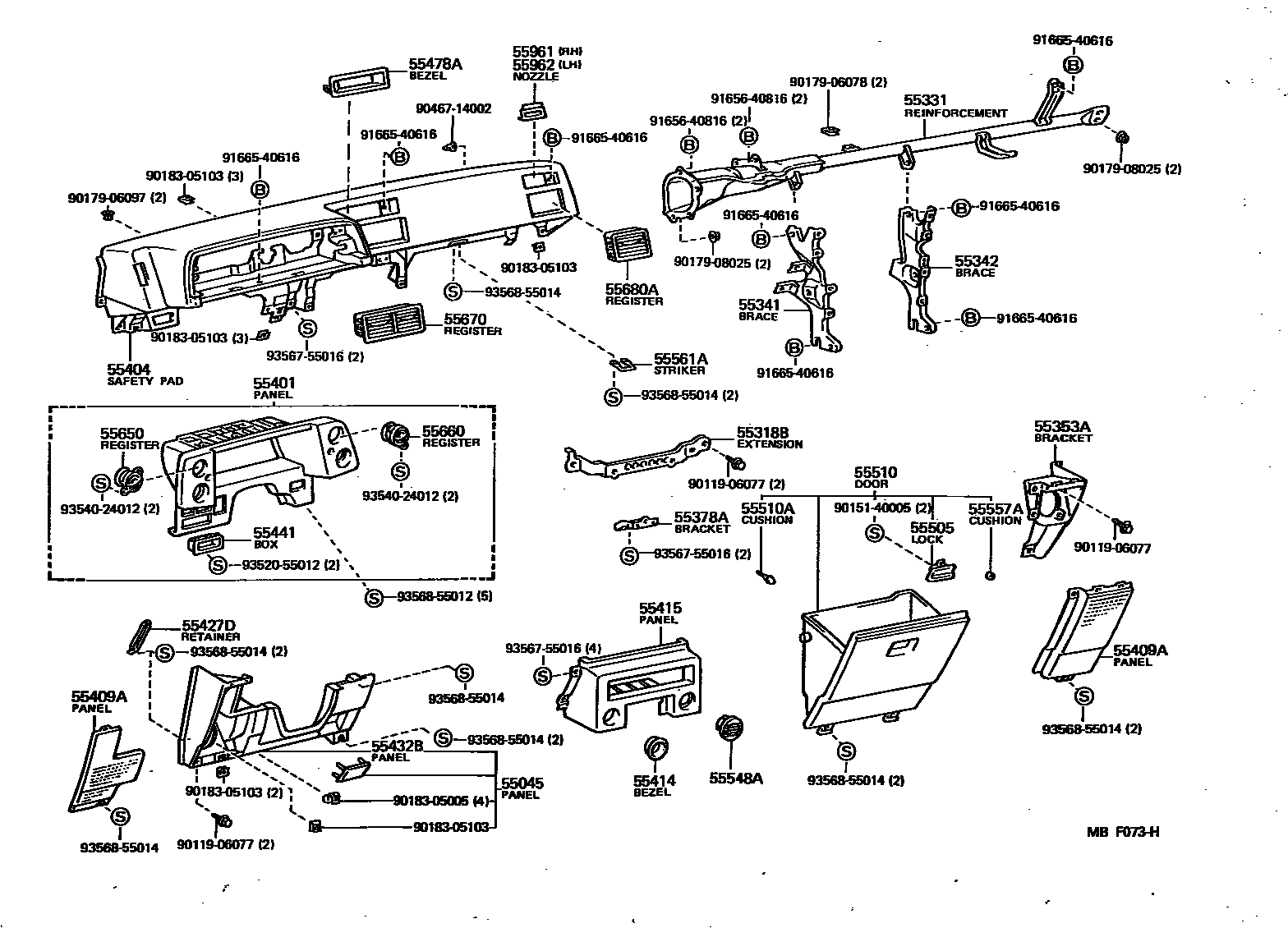

Toyota COROLLA 仪表板和手套箱 — Figure 5501
Toyota COROLLA EPC diagram 5501, 仪表板和手套箱, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55318B | instrument panel extension | 55558-12060 |
| 55331 | Dashboard reinforcement | 55330-12110 |
| 55341 | Instrument panel bracket No. 1 | 55306-12050 |
| 55342 | Instrument panel bracket No. 2 | 55307-12100 |
| 55378A | Glovebox lid lock mounting bracket | 55378-12090 |
| 55401 | Instrument cluster decorative panel sub-assembly | 55410-1A030 · 55410-1A031 · 55410-1A090 · 55410-1A091 · 55410-1A110 |
| 55414 | Cigarette lighter hole frame | 55477-12070 |
| 55415 | Center instrument cluster decorative panel | 55412-12320 · 55412-12321 |
| 55427D | Instrument panel No. 1 decorative panel lower fixing part | 55429-12030 |
| 55441 | Dashboard storage box | 55441-12080 |
| 55510A | Cushion (for glovebox lid) | 90541-03015 |
| 55548A | Dashboard hole cover | 55548-12031 |
| 55557A | Glove box cover limit pad | 55557-16010 |
| 55561A | Glove box lid lock | 55561-12040 |
| 55650 | No. 1 air regulator assembly on instrument panel | 55650-12120 |
| 55660 | No. 2 air regulator assembly on instrument panel | 55660-12200 |
