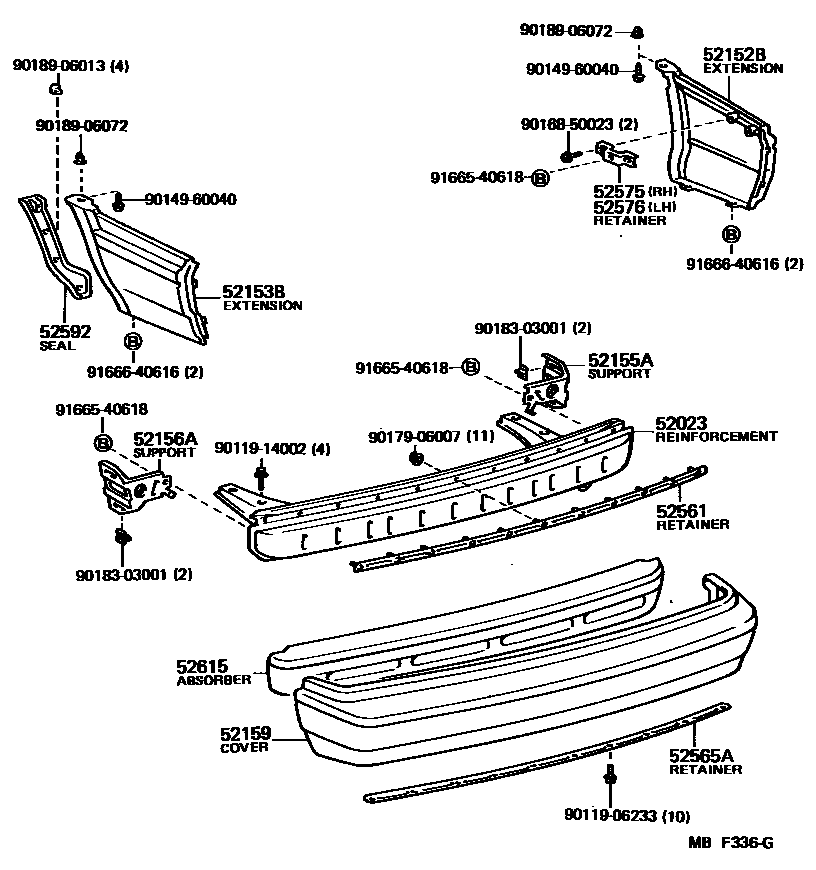

Toyota COROLLA 后保险杠及附件 — Figure 5202
Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52023 | Rear bumper reinforcement sub-assembly | 52023-12060 |
| 52152B | Rear bumper right extension | 52152-12140 · 52152-12141 · 52152-12210 · 52152-12900 |
| 52153B | Rear bumper left extension | 52153-12150 · 52153-12151 · 52153-12210 · 52153-12900 |
| 52155A | Rear bumper right side bracket | 52155-12110 |
| 52156A | Rear bumper left bracket | 52156-12090 |
| 52159 | rear bumper cover | 52159-12100 · 52159-12900 |
| 52561 | Rear bumper upper center fixing bracket | 52561-12040 |
| 52565A | Rear bumper lower fixing bracket | 52565-12020 |
| 52575 | Rear bumper right side fixing bracket | 52575-12020 |
| 52576 | Rear bumper left side fixing bracket | 52576-12020 |
| 52592 | Rear bumper left seal | 52591-12010 |
| 52615 | Rear bumper energy absorber | 52615-12050 |
