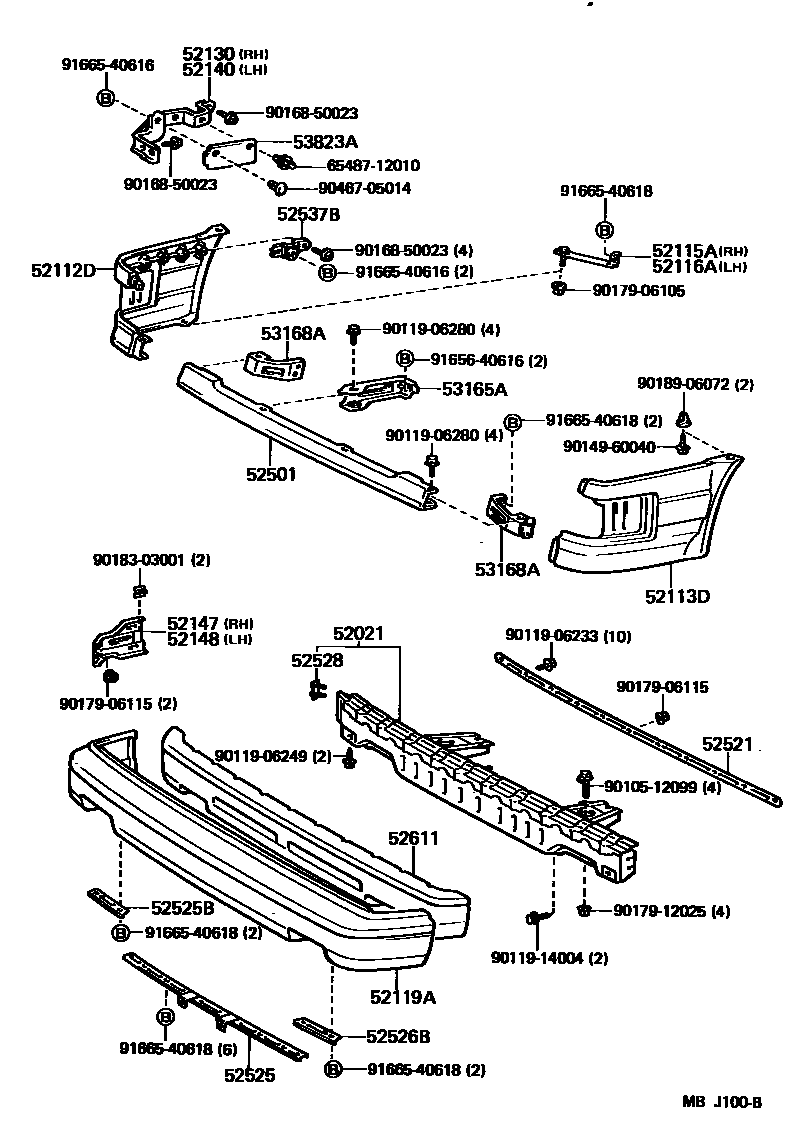

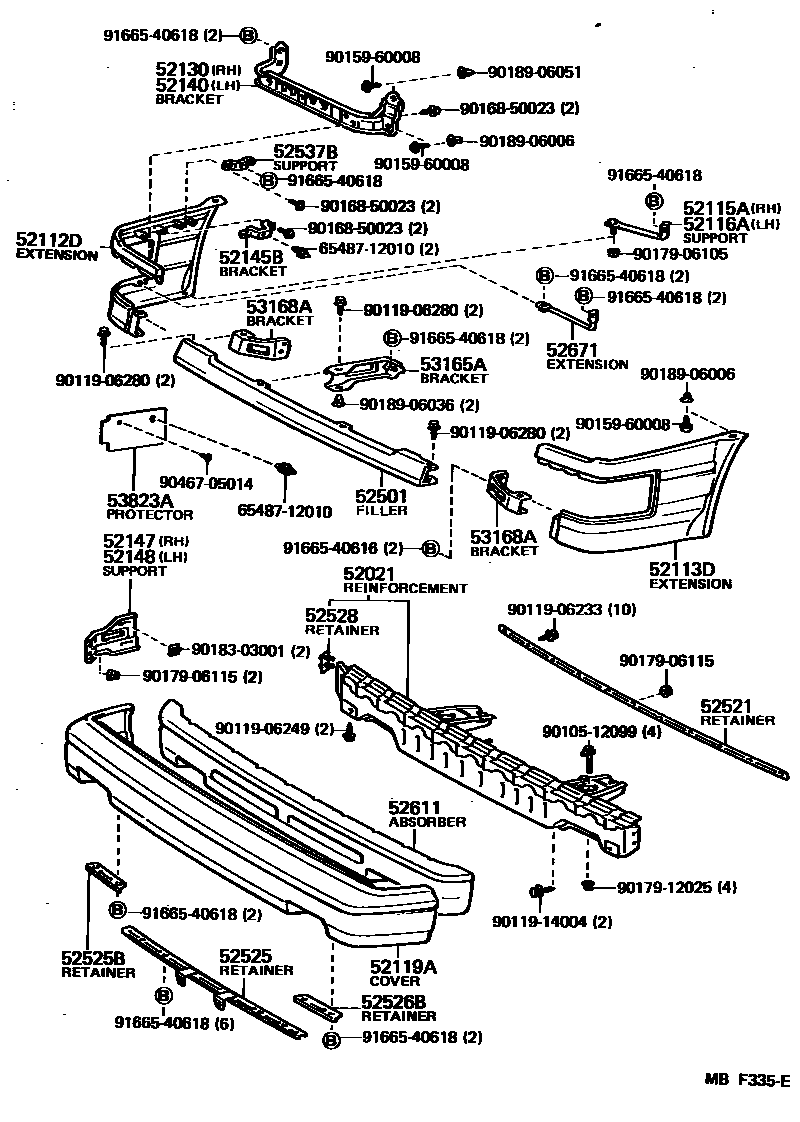

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12100 · 52021-12130 |
| 52112D | Front bumper right extension | 52112-12100 · 52112-12101 · 52112-12102 · 52112-12160 · 52112-12161 · 52112-12900 |
| 52113D | Front bumper left extension | 52113-12100 · 52113-12101 · 52113-12102 · 52113-12160 · 52113-12161 · 52113-12900 |
| 52115A | Front bumper right side bracket | 52115-12160 · 52115-12210 · 52115-12240 |
| 52116A | Front bumper left bracket | 52115-12160 · 52115-12210 · 52115-12240 |
| 52119A | front bumper cover | 52119-12160 · 52119-12900 |
| 52130 | Front bumper right side mounting bracket assembly | 52130-12010 · 52130-12011 |
| 52140 | Front bumper left side mounting bracket assembly | 52140-12010 · 52140-12011 |
| 52145B | Front bumper side mounting bracket | 52145-12080 |
| 52147 | Front bumper right side bracket | 52115-12170 |
| 52148 | Front bumper left bracket | 52116-12140 |
| 52501 | Front bumper arc filler sub-assembly | 52511-12030 · 52511-12031 · 52511-12050 · 52511-12060 |
| 52521 | Front bumper upper center fixing bracket | 52521-12060 |
| 52525 | Front bumper lower center fixing bracket | 52072-12010 |
| 52525B | Front bumper lower right side fixing bracket | 52526-12010 |
| 52526B | Front bumper lower left side fixing bracket | 52526-12010 |
| 52528 | Front bumper lower corner fixing parts | 52528-12020 |
| 52537B | Front bumper No. 2 side bracket | 52537-12010 |
| 52611 | front bumper energy absorber | 52611-12090 |
| 52671 | Front bumper arm extension | 52671-12010 |
| 53165A | Front bumper baffle No. 1 bracket | 53165-12030 · 53165-12040 |
| 53168A | Front bumper stone guard No. 2 bracket | 52061-12010 · 52062-12010 · 53167-12030 · 53167-12040 · 53168-12020 · 53168-12030 |
| 53823A | No. 2 front side panel protector | 53823-12010 |
