Toyota COROLLA Rear Spring & Shock Absorber — Figure 4804

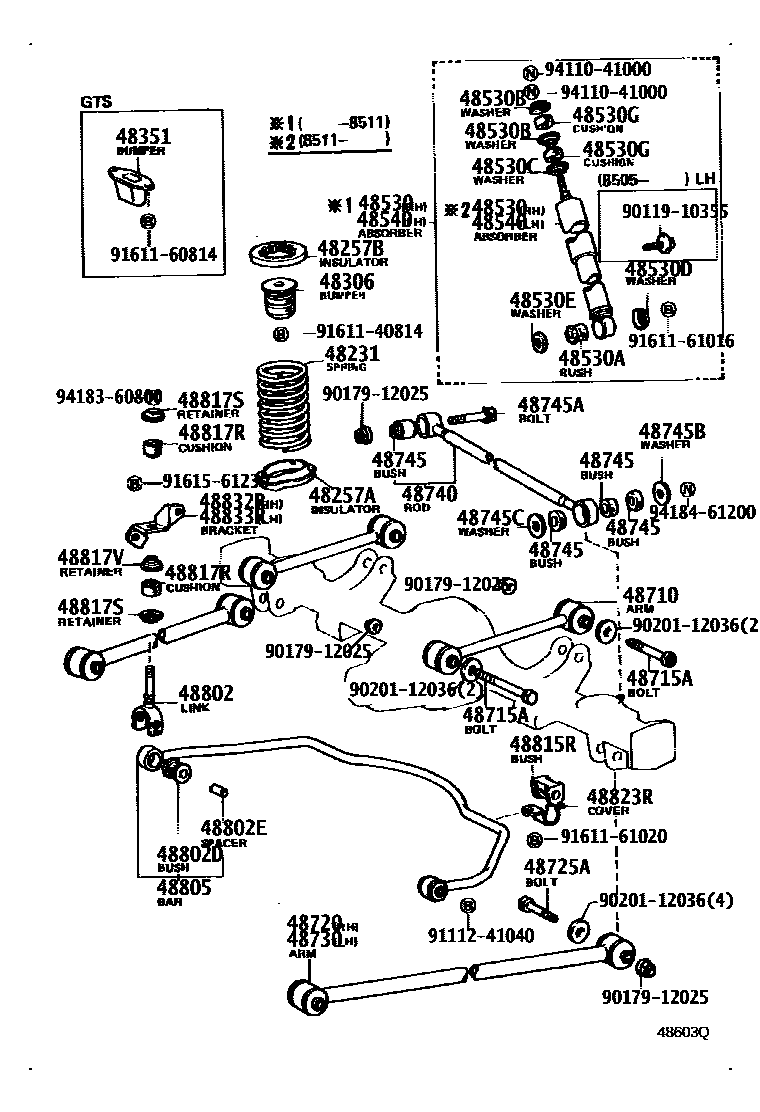

Toyota COROLLA EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 34 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48231 | rear coil spring | 48231-12280 · 48231-12630 · 48231-12690 |
| 48257A | Rear coil spring lower vibration isolation pad | 48258-12010 |
| 48257B | Rear coil spring upper vibration isolation pad | 48257-12020 |
| 48306 | Rear spring buffer block sub-assembly | 48306-12050 |
| 48351 | Differential case buffer block | 48351-12020 · 48351-19025 |
| 48530 | Right rear shock absorber assembly | 48531-12320 · 48531-12380 · 48531-80028 · 48531-80049 · 48531-80055 · 48531-80058 |
| 48530A | Bushing (for rear shock absorber) | 90385-16001 |
| 48530B | Rear shock absorber No. 1 cushion washer | 90948-02002 |
| 48530C | Rear shock absorber No. 2 cushion washer | 90948-02007 |
| 48530D | Rear shock absorber No. 3 cushion washer | 90948-02047 · 90948-02085 · 90948-03012 |
| 48530E | Rear shock absorber No. 4 cushion washer | 90948-03004 |
| 48530G | Rear shock absorber No. 1 cushion | 90948-01003 · 90948-01018 |
| 48540 | Left rear shock absorber assembly | 48531-12320 · 48531-12380 · 48531-80028 · 48531-80049 · 48531-80055 · 48531-80058 |
| 48710 | Upper control arm assembly | 48710-12100 · 48710-12110 |
| 48715A | Hex bolt (for upper control arm) | 90101-12044 · 90101-12045 |
| 48720 | Right lower control arm assembly | 48720-12020 · 48720-12040 · 48720-12060 |
| 48725A | Bolt (for lower control arm) | 90101-12044 |
| 48730 | Left lower control arm assembly | 48720-12020 · 48720-12040 · 48720-12060 |
| 48740 | Rear transverse control rod assembly | 48740-12021 |
| 48745 | Lateral control rod bushing | 48706-14010 · 90385-20001 · 90386-20001 |
| 48745A | Hexagonal bolt (for lateral control lever) | 90105-12070 |
| 48745B | Lateral control lever bumper washer | 90201-12010 |
| 48745C | Lateral control lever bumper washer | 94612-12000 |
| 48802 | Stabilizer bar connecting rod sub-assembly | 48802-12010 |
| 48802D | Stabilizer bar connecting rod bushing | 90385-11021 |
| 48802E | Spacer (for rear stabilizer bar) | 90560-10275 |
| 48805 | Rear stabilizer bar sub-assembly | 48805-12020 · 48805-14100 |
| 48815R | Rear stabilizer bar bushing | 48815-12110 · 48815-22080 |
| 48817R | Stabilizer bumper (for rear stabilizer link) | 48817-12010 |
| 48817S | Crash pad block No. 1 (for rear stabilizer bar) | 90948-02024 |
| 48817V | Crash pad block No. 2 (for rear stabilizer bar) | 90948-02025 |
| 48823R | Stabilizer bar linkage cover (for rear) | 48832-12030 |
| 48832R | Right rear stabilizer bar bracket No. 1 | 48832-12011 |
| 48833R | Left rear stabilizer bar bracket No. 1 | 48833-12011 |
