Toyota COROLLA 制动配管和卡箍 — Figure 4708

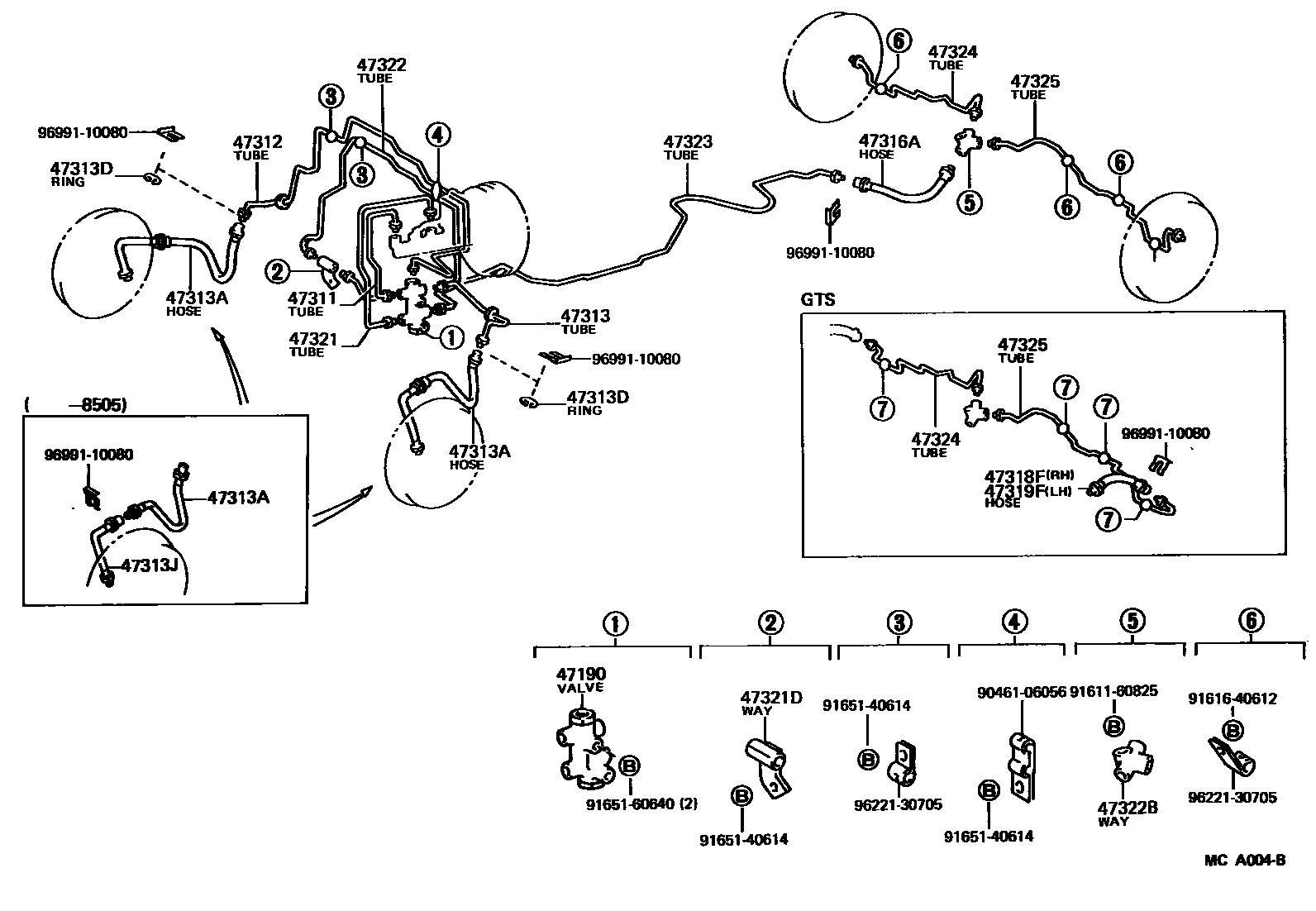

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 1 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47190 | Proportional and bypass valve assembly | 47190-12040 · 47190-22040 |
| 47311 | No. 1 front brake pipe | 47312-12170 |
| 47312 | No. 2 front brake pipe | 47314-12220 · 47314-12240 |
| 47313 | No. 3 front brake pipe | 47315-12370 · 47315-12371 |
| 47313A | No. 1 front flexible hose | 90947-02403 · 90947-02476 |
| 47313D | E-ring (used to secure the front flexible hose) | 96160-01200 |
| 47313J | No. 2 front flexible hose | 96960-32105 |
| 47316A | Flexible hose (for rear brake pipe) | 96940-32805 |
| 47318F | Right rear flexible hose | 96940-32555 |
| 47319F | Left rear flexible hose | 96940-32555 |
| 47321 | No. 1 rear brake pipe | 47322-12150 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10056 |
| 47322 | No. 2 rear brake pipe | 47326-12030 · 47326-12050 |
| 47322B | No. 2 pipe joint (for rear brake pipe) | 90413-10098 |
| 47323 | No. 3 rear brake pipe | 47323-12150 |
| 47324 | No. 4 rear brake pipe | 47324-12130 · 47324-12150 |
| 47325 | No. 5 rear brake pipe | 47325-12130 · 47325-12150 |
