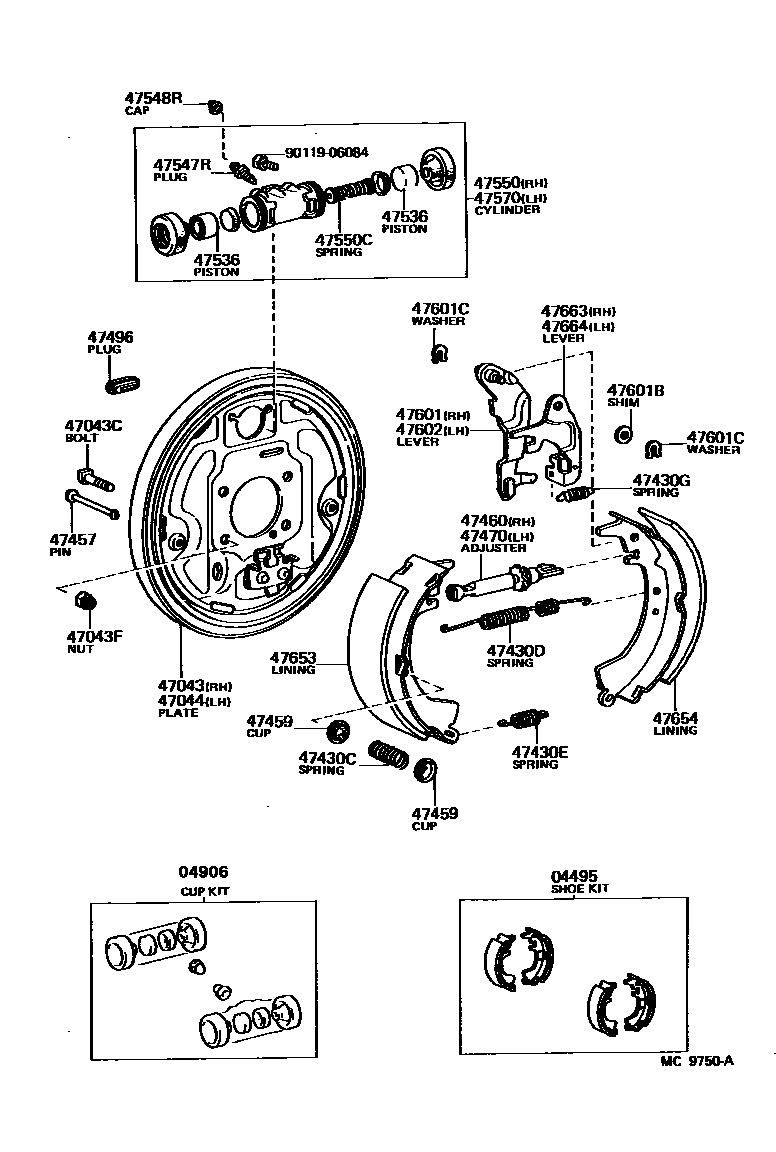

Toyota COROLLA 后鼓式制动器分泵和底板 — Figure 4706
Toyota COROLLA EPC diagram 4706, 后鼓式制动器分泵和底板, with 1 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04495 | Rear brake shoe assembly | 04495-14010 |
| 04906 | Rear wheel pump cup assembly | 04906-12040 |
| 47043 | Right rear brake base plate sub-assembly | 47043-14011 |
| 47043C | Bolts (used to secure the base plate to the rear axle housing) | 42184-22020 |
| 47043F | Nut (used to fix the base plate to the rear axle housing) | 94181-11000 |
| 47044 | Left rear brake base plate sub-assembly | 47044-14011 |
| 47430C | Limit spring (for rear brake shoe) | 90501-18017 |
| 47430D | Tension spring (for rear brake shoe return) | 90506-23375 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-23346 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90506-12011 |
| 47457 | Brake shoe limit spring pin (for rear wheel brake) | 47447-20030 |
| 47459 | Brake shoe limit spring seat (for rear wheel brake) | 47449-30020 |
| 47460 | Right brake shoe adjuster assembly (for rear wheel brake) | 47061-14021 |
| 47470 | Left brake shoe adjuster assembly (for rear wheel brake) | 47062-14021 |
| 47496 | Hole plug (for rear brake) | 47491-20011 |
| 47536 | Wheel brake cylinder piston (for rear wheel brake) | 47051-22040 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-12060 · 47550-19135 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 47509-12020 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47550-12060 · 47550-19135 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-14010 |
| 47601B | Rear parking brake shoe lever gasket | 90564-08150 · 90564-08151 · 90564-08152 · 90564-08172 · 90564-08173 · 90564-08174 |
| 47601C | C-shaped washer (for rear brake) | 90213-06013 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-14010 |
| 47653 | Rear brake shoe friction lining (for front or upper side) | 47655-14010 |
| 47654 | Rear brake shoe friction lining (for rear or lower side) | 47655-14010 |
| 47663 | Right automatic adjustment lever (for rear brake) | 47643-20020 |
| 47664 | Left side automatic adjustment lever (for rear brake) | 47644-20020 |
