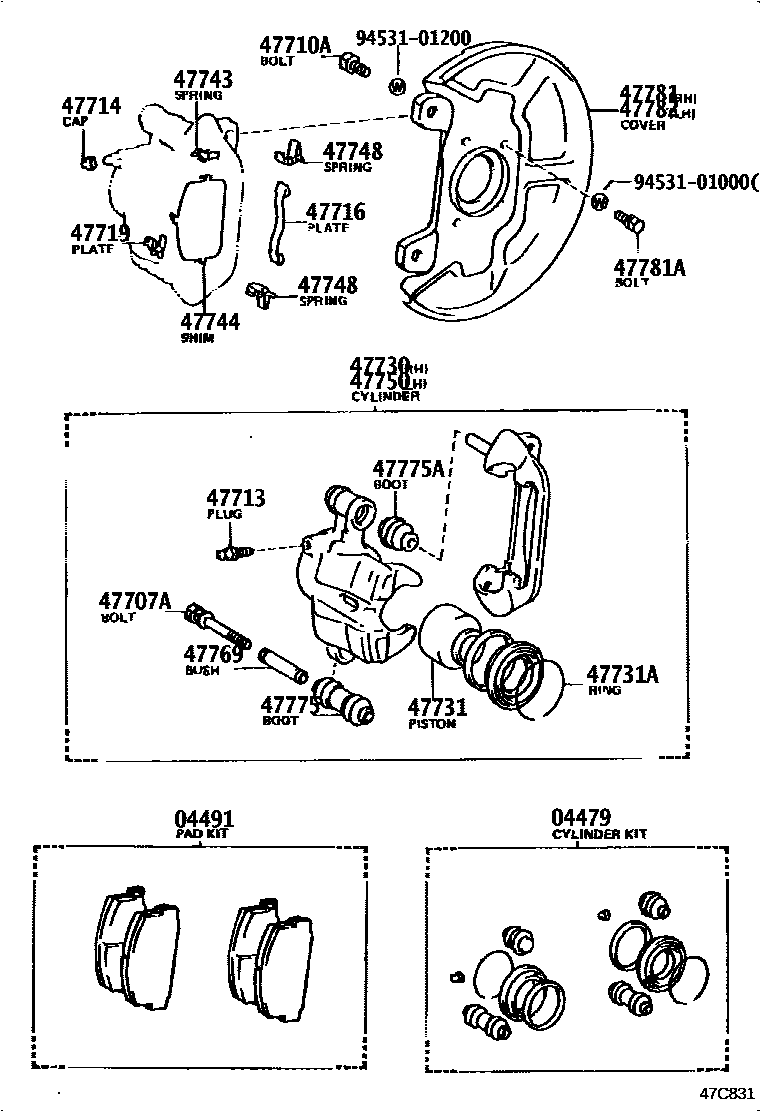

Toyota COROLLA 前盘式制动器卡钳和防尘罩 — Figure 4705
Toyota COROLLA EPC diagram 4705, 前盘式制动器卡钳和防尘罩, with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

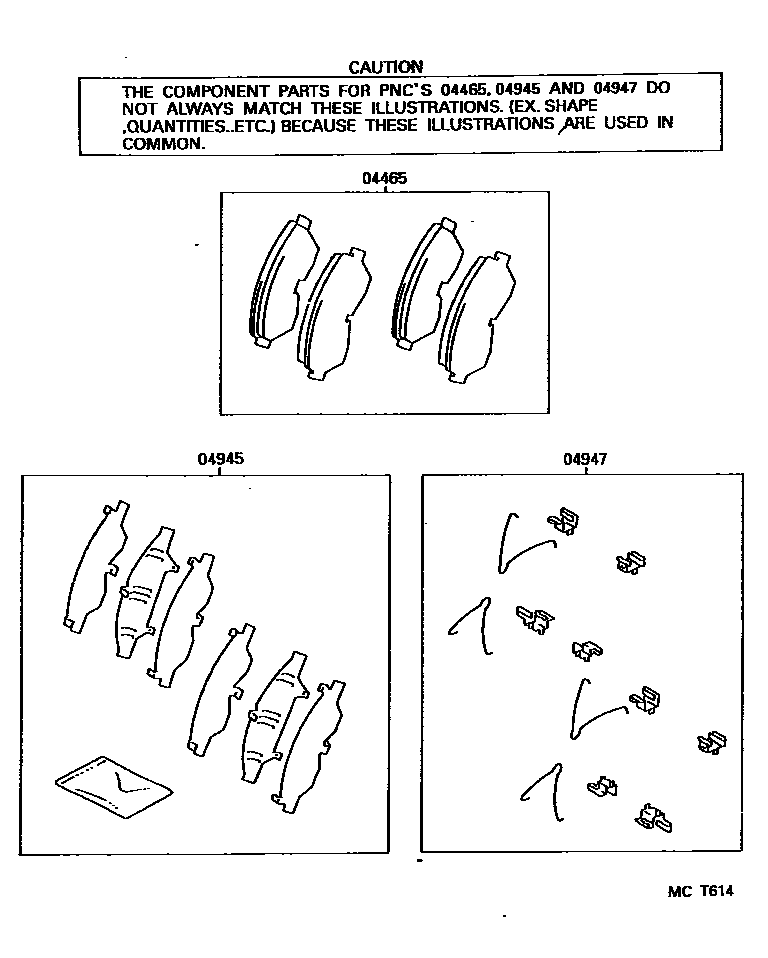

| 04465 | Front disc brake pad assembly | 04465-12131 |
| 04479 | Front disc brake cylinder assembly | 04479-14060 |
| 04491 | Front disc brake pad assembly | 04491-12200 |
| 04945 | Front silencer gasket assembly | 04945-12030 |
| 04947 | Front disc brake mounting kit | 04947-14230 |
| 47707A | Hex bolt (for front disc brake torque plate) | 90119-08431 |
| 47710A | Hexagonal bolt (for front disc brake caliper) | 90101-12064 |
| 47713 | Bleed plug (for front disc brake) | 47547-20010 |
| 47714 | Bleeder plug cap (for front disc brake) | 31478-30010 |
| 47716 | Pad support plate No. 1 (for front disc brake) | 47716-14080 |
| 47719 | Front disc brake pad guide | 47736-12010 · 47736-12040 |
| 47730 | Right front disc brake cylinder assembly | 47730-12180 |
| 47731 | Front disc brake piston | 47731-14070 |
| 47731A | retaining ring (for front disc brake piston) | 90522-60004 |
| 47743 | Anti-vibration spring No. 2 (for front disc brake) | 47743-12050 · 47743-14040 · 47748-12100 |
| 47744 | No. 1 silencer gasket (for front disc brake) | 47744-12050 |
| 47748 | Anti-vibration spring No. 1 (for front disc brake) | 47748-14050 |
| 47750 | Left disc brake cylinder assembly | 47750-12180 |
| 47769 | No. 1 brake cylinder sliding sleeve (for front disc brake) | 47769-28010 |
| 47775 | Bushing boot (for front disc brake) | 47775-14010 |
| 47775A | Pin dust boot | 47776-14010 |
| 47781 | Right front disc brake dust cover | 47703-12110 |
| 47781A | Bolt (used to secure dust cover to knuckle arm) | 91111-71020 |
| 47782 | Left front disc brake dust cover | 47704-12110 |
