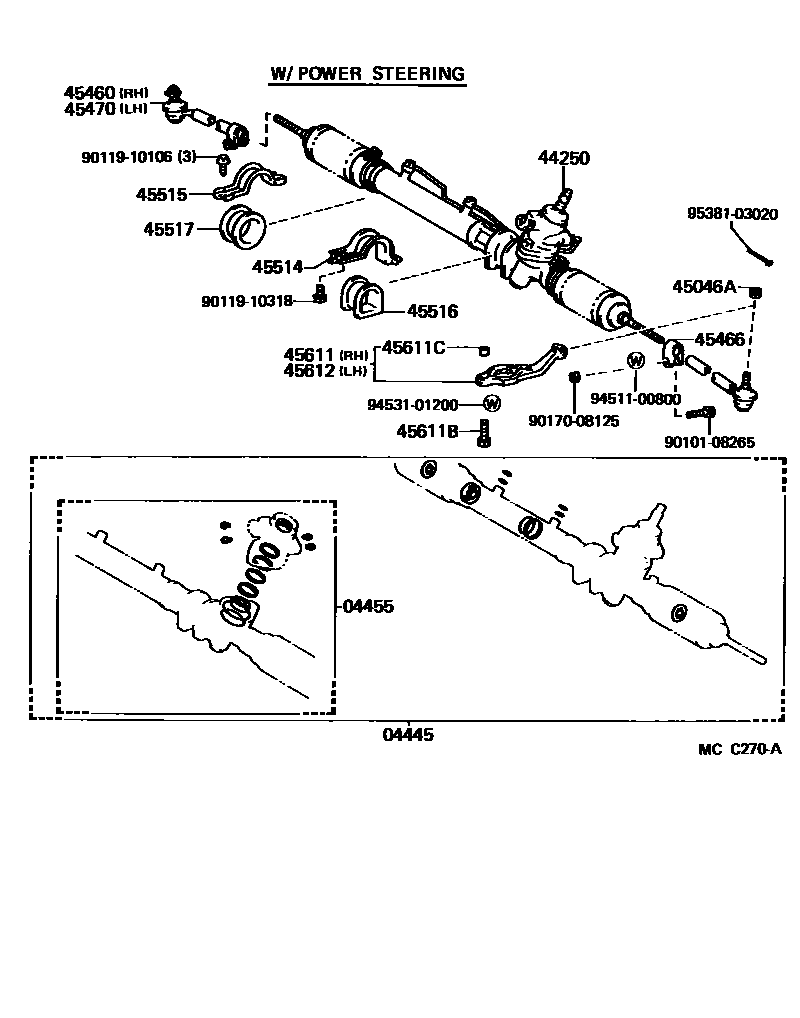

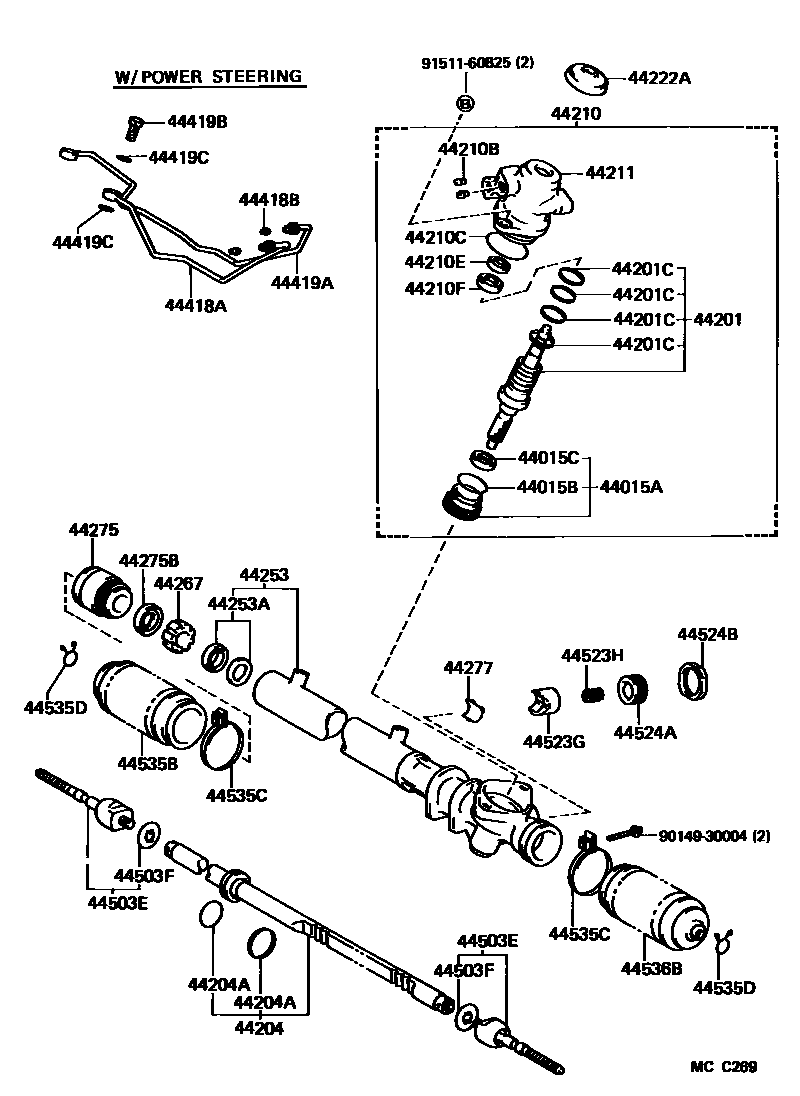

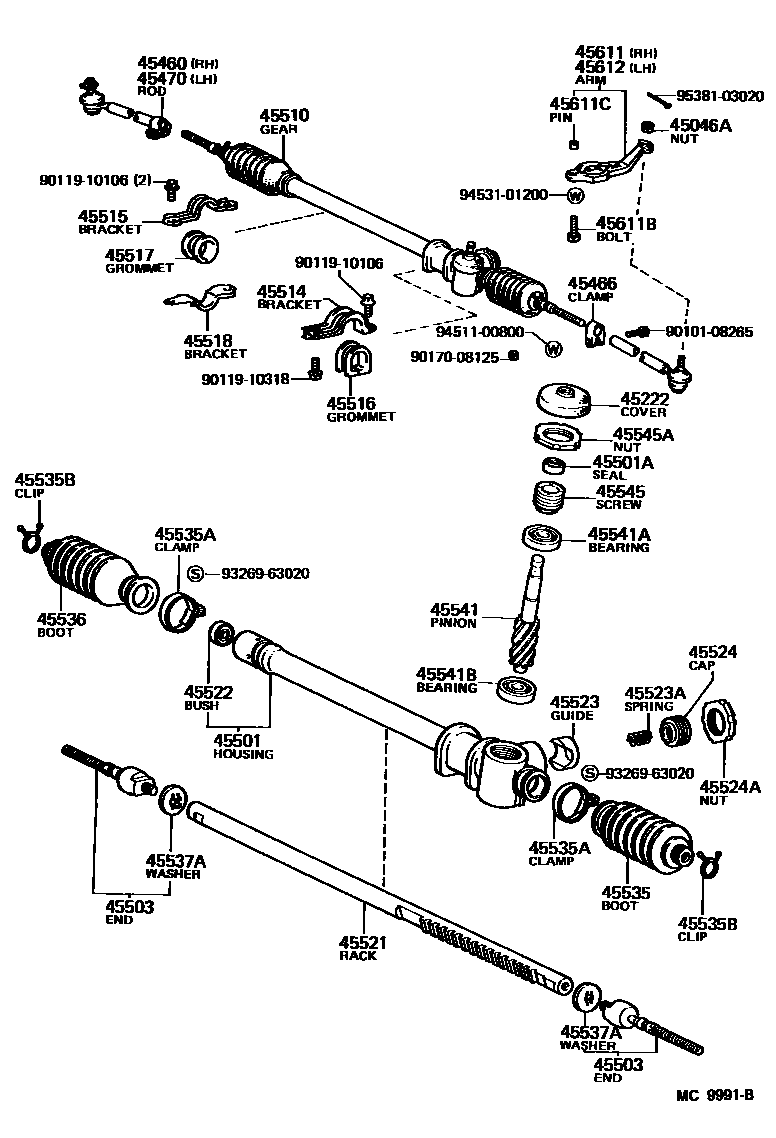

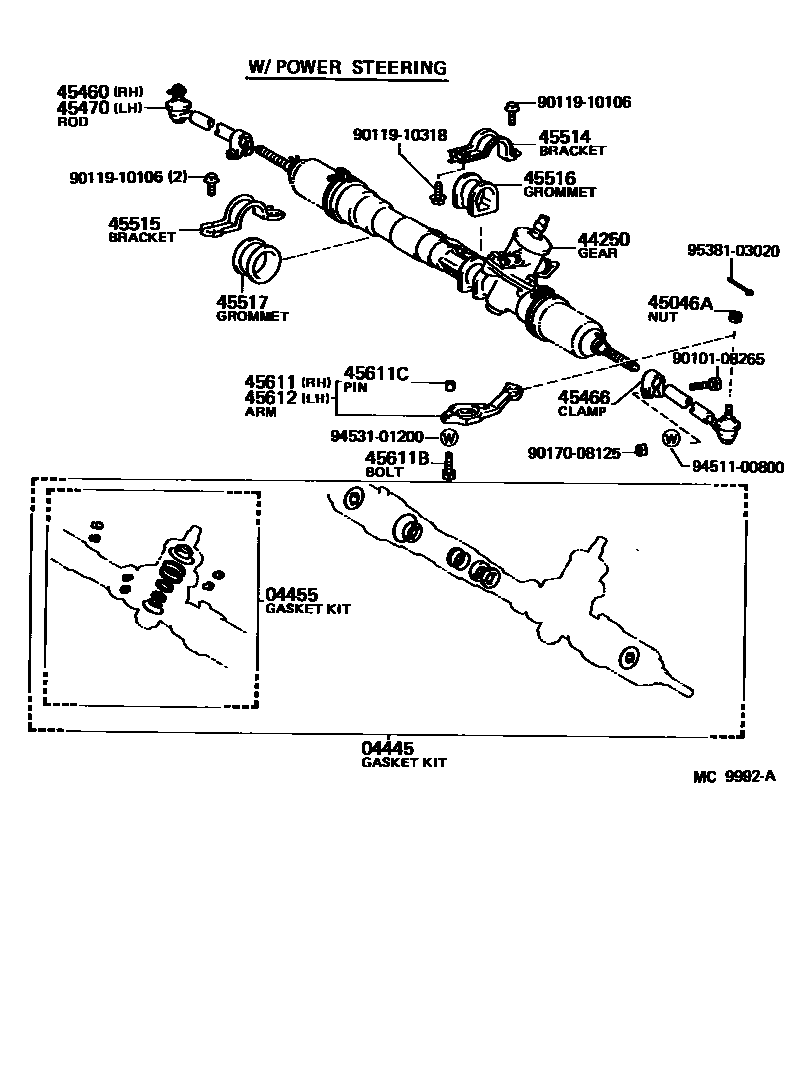

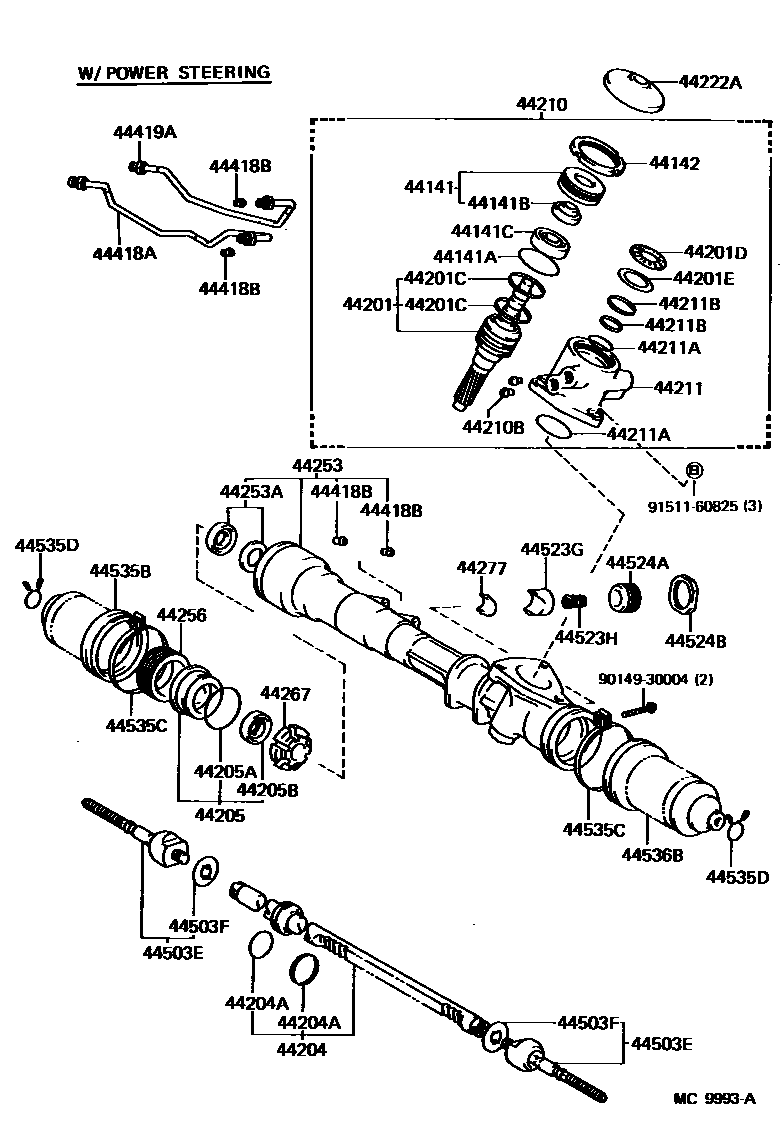

Toyota COROLLA 前转向齿轮和连杆 — Figure 4505
Toyota COROLLA EPC diagram 4505, 前转向齿轮和连杆, with 5 images and 85 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04445 | Power steering gear gasket assembly (for recirculating steel balls) | 04445-12010 · 04445-12040 |
| 04455 | Power steering control valve overhaul gasket assembly | 04455-12020 · 04455-20010 |
| 44015A | Bearing guide nut sub-assembly | 44015-20010 |
| 44015B | O-ring (for bearing guide nut) | 90301-43002 |
| 44015C | Oil seal (for bearing guide nut) | 90310-25004 |
| 44141 | regulator plug | 44104-22011 |
| 44141A | O-ring (for adjuster plug) | 90301-51001 |
| 44141B | Oil seal (for regulator plug) | 90311-19002 |
| 44141C | Bearing (for adjuster plug) | 90369-22004 |
| 44142 | lock nut | 44142-22010 |
| 44201 | Power steering control valve sub-assembly | 44201-12060 · 44201-12061 · 44201-12110 |
| 44201C | Ring (for power steering control valve) | 90562-32003 · 90562-46001 |
| 44201D | Thrust needle roller bearing (for power steering control valve) | 90374-30003 |
| 44201E | Flat Washer (for power steering control valve) | 90201-30003 |
| 44204 | Power steering rack sub-assembly | 44204-12050 · 44204-12090 |
| 44204A | Ring (for steering rack piston) | 90301-30002 · 90301-34003 · 90562-34001 · 90562-38002 |
| 44205 | Cylinder end stopper sub-assembly | 44205-12030 |
| 44205A | O-ring (for cylinder end stopper) | 90301-46001 |
| 44205B | Oil seal (for cylinder end stop) | 90310-24002 |
| 44210 | Power steering control valve assembly | 44210-12040 · 44210-12041 · 44210-12110 |
| 44210B | Connector seat (for power steering control valve) | 90410-06005 |
| 44210C | O-ring (for power steering control valve) | 90301-51001 |
| 44210E | Oil seal (for power steering control valve) | 90311-19002 |
| 44210F | Bearings (for power steering control valve) | 90363-19003 |
| 44211 | control valve housing | 44211-12030 · 44211-12100 |
| 44211A | O-ring (for control valve housing) | 90301-26001 · 90301-38002 |
| 44211B | Ring (for control valve housing) | 90562-24002 · 90562-29002 |
| 44222A | Dust cover (for power steering gear) | 45222-12010 · 45222-32010 |
| 44250 | Power steering gear assembly (for rack and pinion) | 44250-12070 · 44250-12071 · 44250-12160 |
| 44253 | Power steering rack housing | 44203-12070 · 44203-12130 |
| 44253A | Oil seal (for power steering rack housing) | 90999-99119 · 90999-99130 |
| 44256 | Cylinder end stopper nut | 44256-12010 |
| 44267 | Rack end guide block | 44267-12010 · 44267-12020 |
| 44275 | Cylinder end stop | 44275-12040 |
| 44275B | Oil seal (for cylinder end stop) | 90310-24006 |
| 44277 | Rack guide block seat | 44277-12010 |
| 44418A | Right steering pressure oil pipe | 44418-12050 · 44418-12051 · 44418-12100 |
| 44418B | Joint seat (for steering pressure oil pipe) | 90410-02001 · 90410-04001 · 90410-05005 |
| 44419A | Left steering pressure oil pipe | 44419-12050 · 44419-12051 · 44419-12100 |
| 44419B | Connector bolt (for steering pressure oil pipe) | 90401-10021 |
| 44419C | Gasket (for steering pressure oil pipe) | 90430-10008 |
| 44503E | Steering rack end sub-assembly (for power steering) | 45503-19015 · 45503-19025 · 45503-19045 |
| 44503F | Claw washer (for power steering rack end) | 90214-14002 |
| 44523G | Rack guide block (for power steering) | 45523-12010 |
| 44523H | Spring (for power steering rack guide) | 90501-20041 |
| 44524A | Rack guide spring cover (for power steering) | 45524-16010 |
| 44524B | Nut (for power steering rack guide cover) | 90179-36002 |
| 44535B | No. 1 steering rack dust boot (for power steering) | 45535-12030 · 45535-20040 |
| 44535C | Clamp (for power steering rack dust boot) | 90460-53002 · 90461-10568 |
| 44535D | Catch (for power steering rack dust boot) | 90467-18003 |
| 44536B | No. 2 steering rack dust boot (for power steering) | 45535-12030 · 45535-20040 |
| 45046A | Castle nuts (for tie rod ends) | 90171-12028 |
| 45222 | Steering gear dust cover | 45222-10030 |
| 45460 | Right tie rod assembly | 45460-19125 |
| 45466 | Tie rod end clamp | 45466-22010 |
| 45470 | Left tie rod assembly | 45460-19125 |
| 45501 | Steering rack housing sub-assembly | 45501-12041 · 45501-12080 |
| 45501A | T-type oil seal (for steering rack housing) | 90311-15001 |
| 45503 | Steering rack end sub-assembly | 45503-19015 |
| 45510 | Steering gear assembly | 45510-12030 |
| 45514 | No. 1 steering rack housing bracket | 45514-12030 |
| 45515 | No. 2 steering rack housing bracket | 45515-12050 · 45515-12090 |
| 45516 | No. 1 steering rack housing seal | 45516-12040 |
| 45517 | No. 2 steering rack housing seal | 45517-12080 · 45517-12090 · 45517-12100 |
| 45518 | No. 3 steering rack housing bracket | 45518-12020 |
| 45521 | steering rack | 45521-12060 |
| 45522 | steering rack bushing | 45522-10021 · 45522-10030 |
| 45523 | Rack guide block (for steering gear) | 45523-10010 |
| 45523A | Spring (for steering gear rack guide block) | 90501-23007 |
| 45524 | Steering rack guide block spring cover | 45524-16010 |
| 45524A | Nut (for steering rack guide spring cover) | 90179-36001 |
| 45535 | No. 1 steering rack dust cover | 45535-12011 |
| 45535A | Clamp (for steering rack dust boot) | 90461-10273 |
| 45535B | Clamp (for steering rack dust boot) | 90467-18003 |
| 45536 | No. 2 steering rack dust cover | 45536-12011 |
| 45537A | Claw washer (for steering rack end lock) | 90214-14002 |
| 45541 | steering pinion | 45541-12021 |
| 45541A | Upper radial ball bearing (for steering pinion) | 90363-15003 |
| 45541B | Lower radial ball bearing (for steering pinion) | 90363-13001 |
| 45545 | Pinion Bearing Adjustment Screw | 45545-10010 |
| 45545A | Nut (for pinion bearing adjustment screw) | 90179-38001 |
| 45611 | Right steering knuckle arm | 45611-12913 · 45611-12917 |
| 45611B | Hexagonal bolt (for steering knuckle to shock absorber) | 90101-12295 |
| 45611C | Direct sales (for steering knuckle to shock absorber) | 90253-15016 |
| 45612 | Left steering knuckle arm | 45612-12913 · 45612-12917 |
