Toyota COROLLA Steering Wheel — Figure 4504

Toyota COROLLA EPC diagram 4504, Steering Wheel, with 5 images and 15 PNC and OE references.

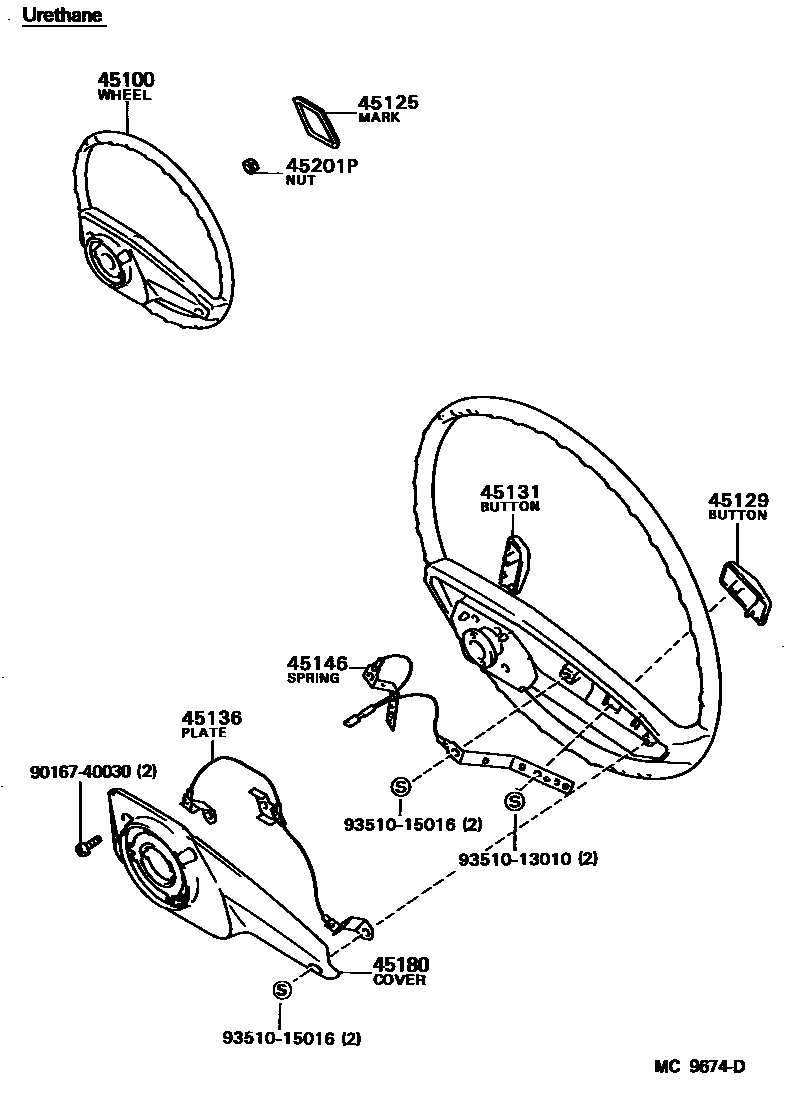

Toyota COROLLA Steering Wheel EPC diagram — MC9674D
Steering Wheel — MC9674D (198308 – 999999)

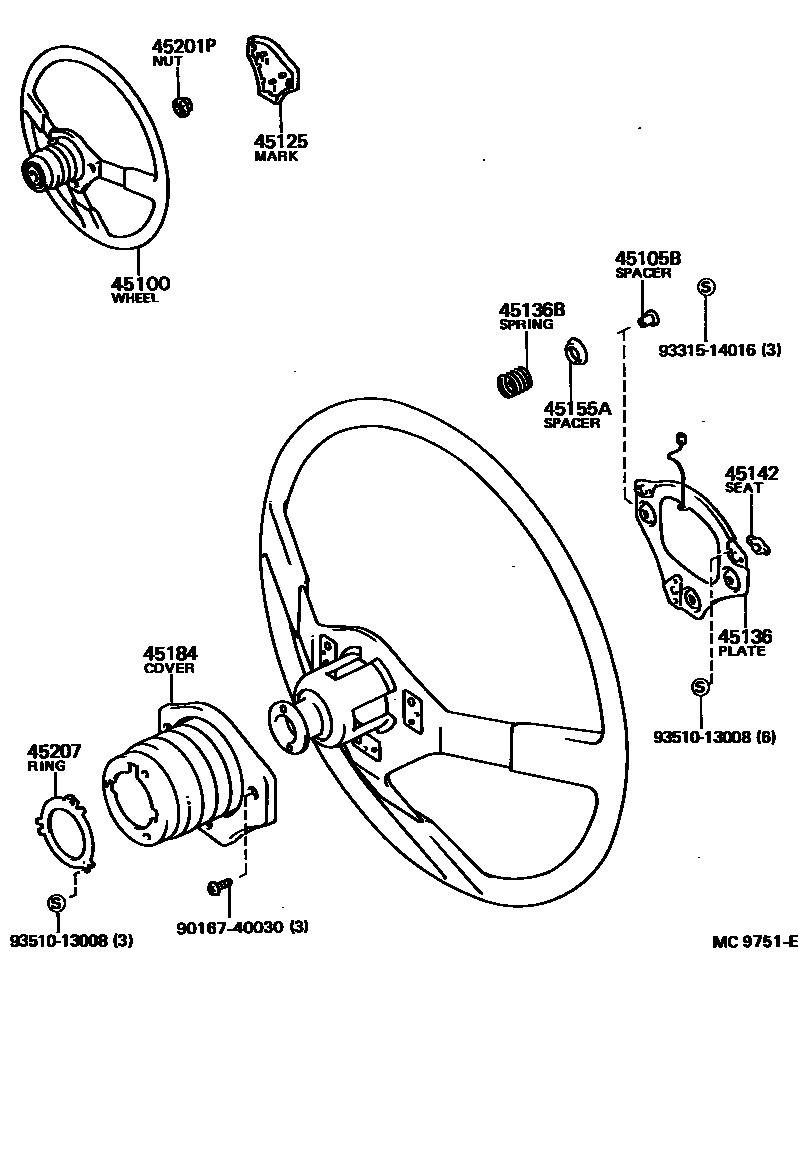

Toyota COROLLA Steering Wheel EPC diagram — MC9751E
Steering Wheel — MC9751E (198308 – 999999)

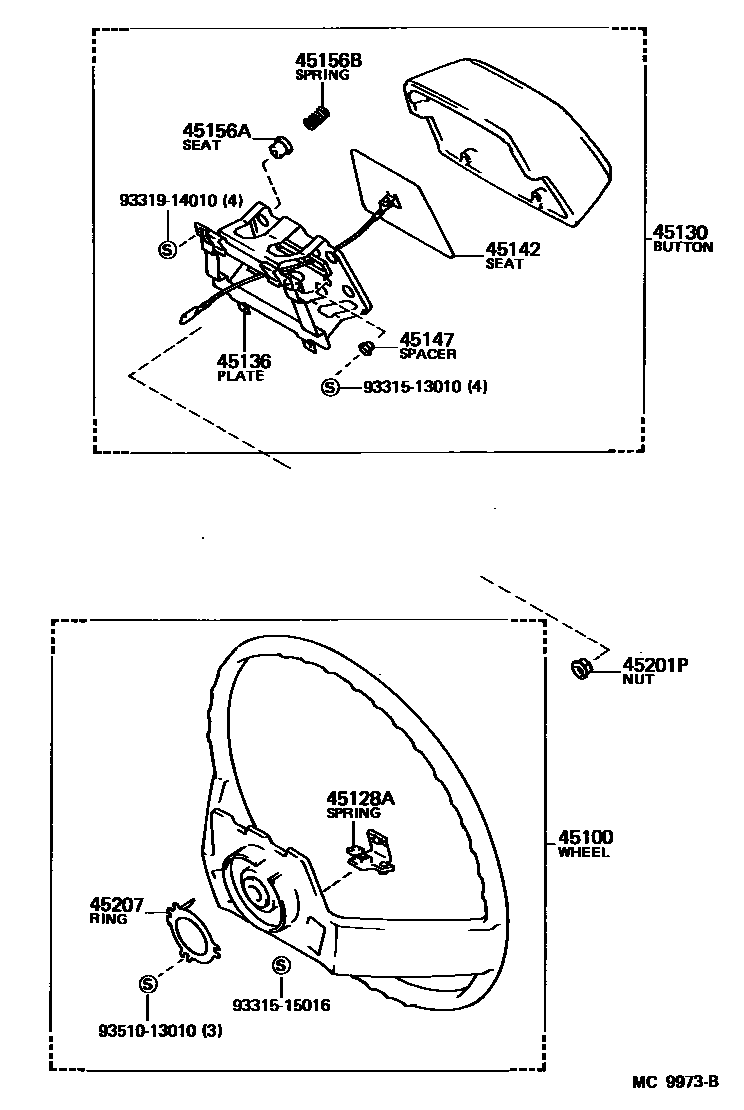

Toyota COROLLA Steering Wheel EPC diagram — MC9973B
Steering Wheel — MC9973B (198308 – 999999)

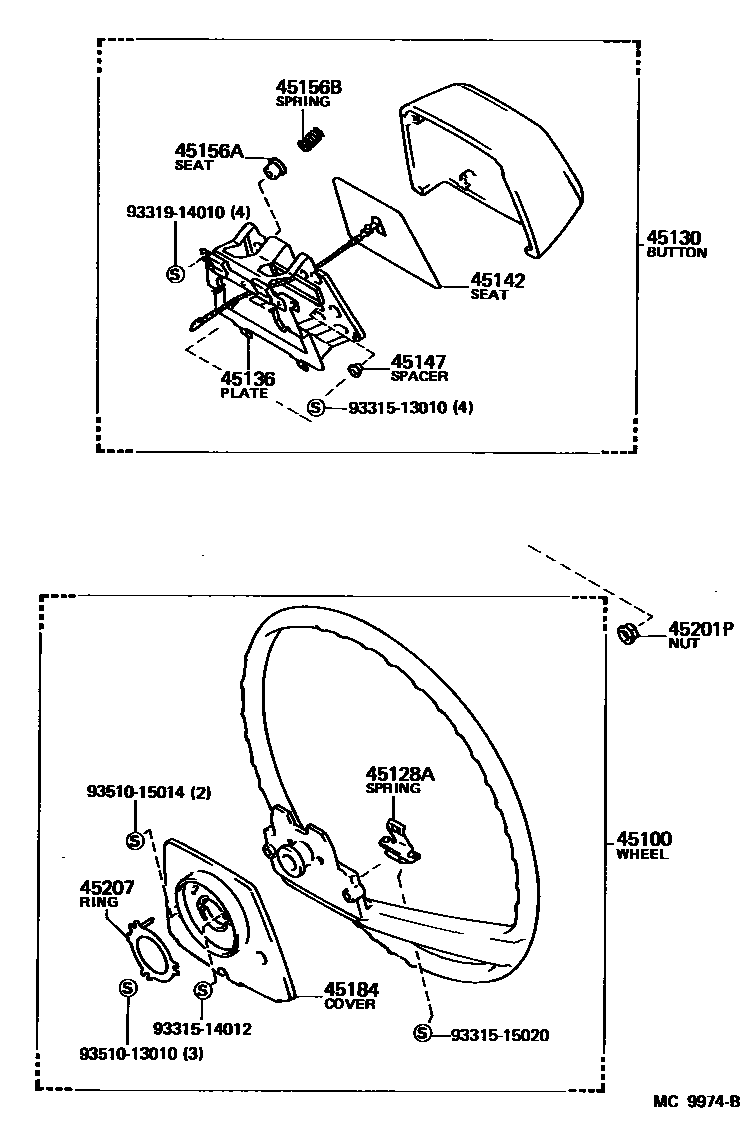

Toyota COROLLA Steering Wheel EPC diagram — MC9974B
Steering Wheel — MC9974B (198308 – 999999)

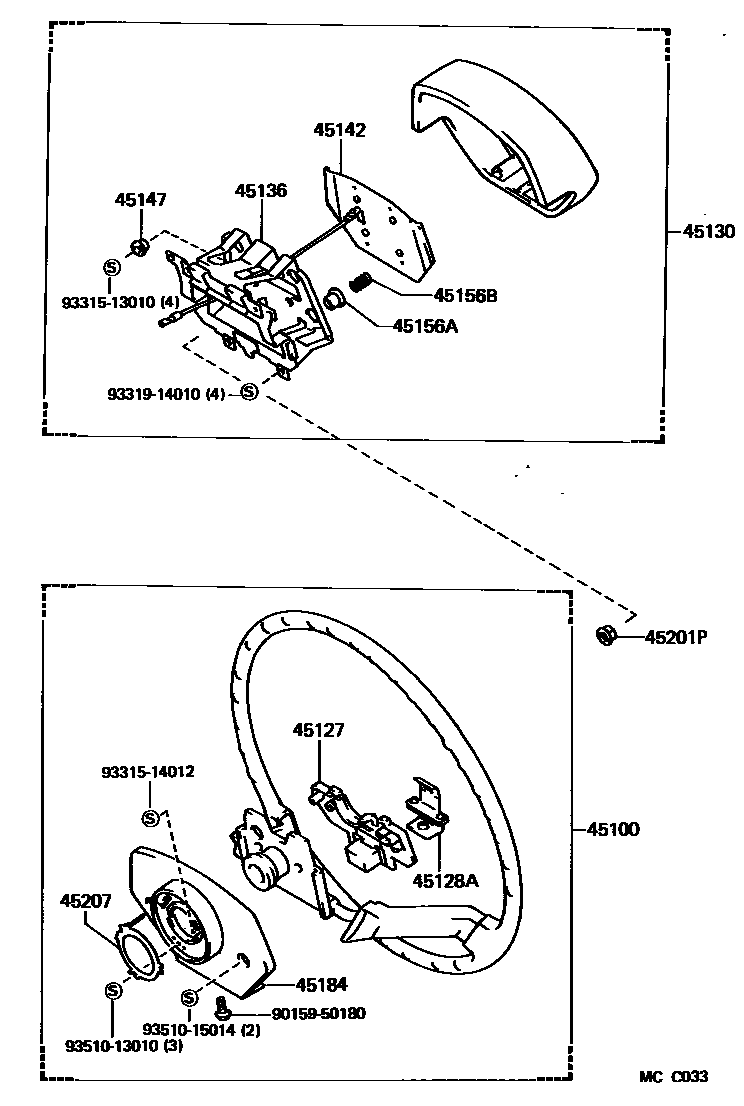

Toyota COROLLA Steering Wheel EPC diagram — MCC033
Steering Wheel — MCC033 (198508 – 999999)

PNC and OE references

PNCPart nameOE numbers
45100Steering wheel assembly45100-12450 · 45100-12460 · 45100-17020
45105BSpacer (for horn button contact piece)90561-04010
45125Steering wheel trim cover markings45125-12360
45127Insert on No. 1 speaker button45127-17010
45128ASteering wheel trim cover retaining spring45128-12010 · 45128-12020 · 45128-17010
45136horn button contact piece45136-12110 · 45136-12120 · 45136-12130 · 45136-12140 · 45136-16050 · 45136-17010
45136BCompression spring (for horn button contact piece)90501-10083
45142No. 1 horn button contact seat45142-12050 · 45142-16010 · 45142-17010
45146Horn button contact spring45146-12090
45147Speaker button spacer90561-02001
45155ASpeaker contact spacer45155-12030
45156ASpeaker contact spring holder45156-16010
45156BSpring (for horn contact spring holder)90501-06032
45201PSteering wheel fixing nut90179-12086
45207Speaker contact ring45176-14050 · 45176-22050 · 45176-30050
