Toyota COROLLA 动力转向配管 — Figure 4503

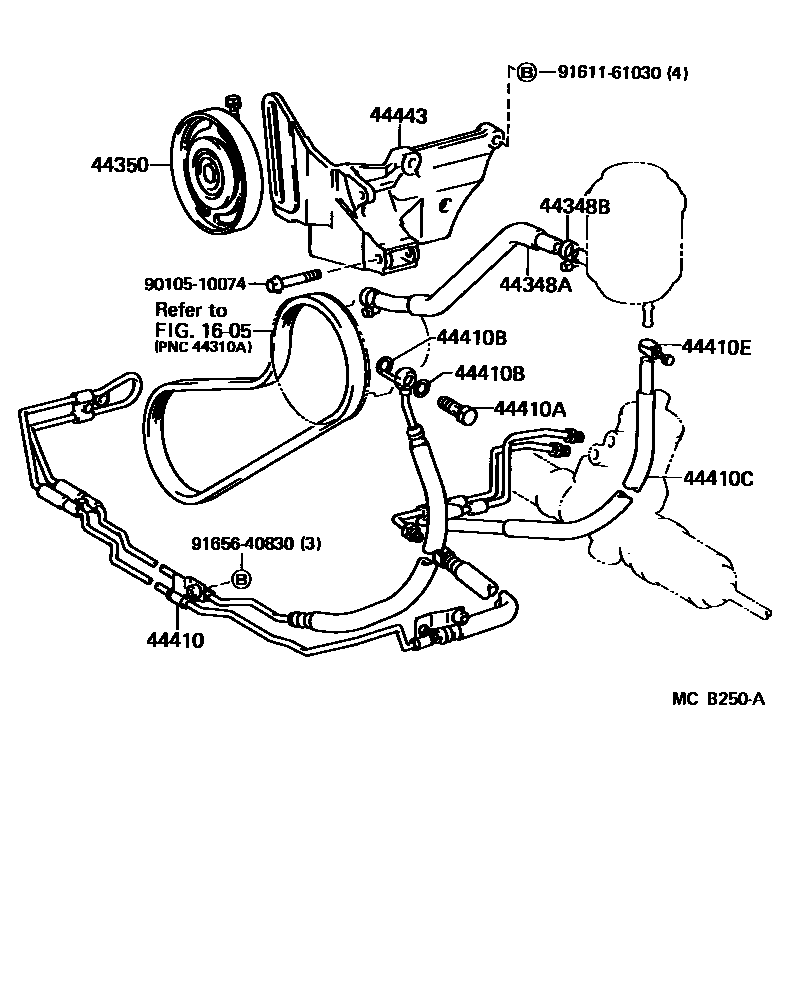

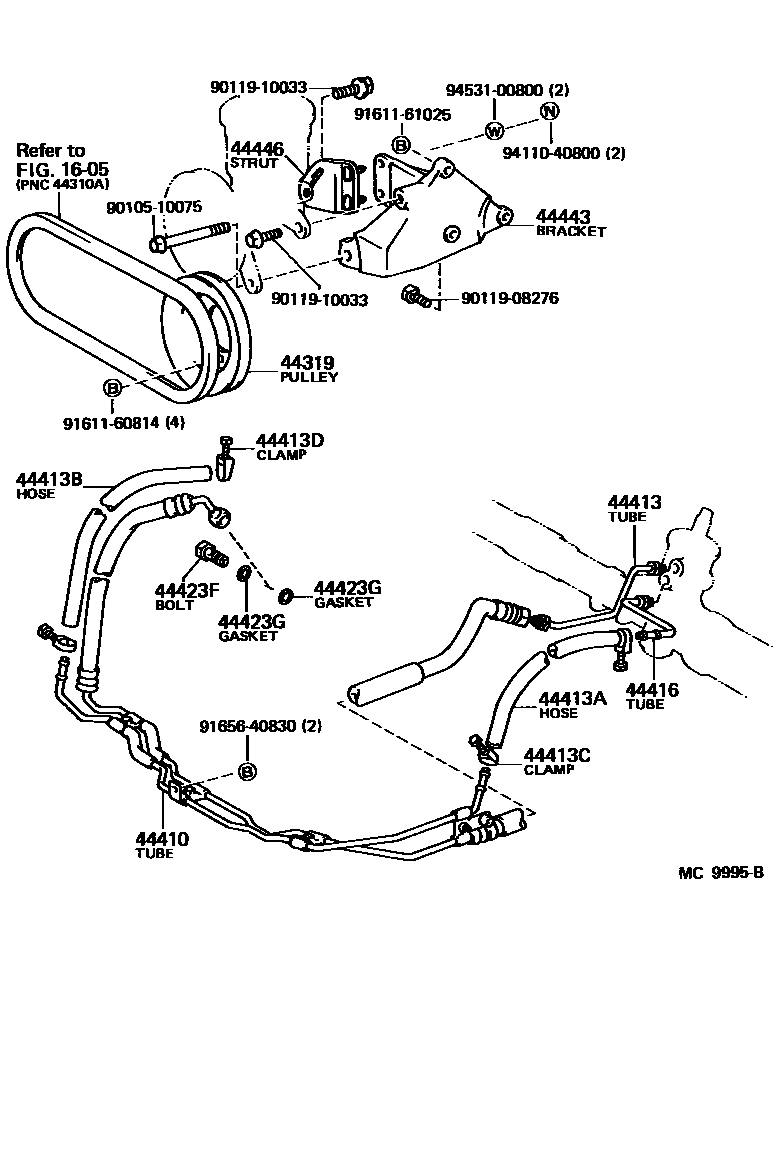

Toyota COROLLA EPC diagram 4503, 动力转向配管, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44319 | Vane pump drive pulley | 44319-12011 |
| 44348A | No. 1 hose (tank to pump) | 44348-12030 |
| 44348B | Clamp (for reservoir to pump hose) | 90460-26001 |
| 44350 | Power steering idler assembly | 44350-12030 |
| 44410 | Pressure supply pipe assembly | 44410-12080 · 44410-12140 |
| 44410A | Connector bolt (for pressure supply pipe) | 90401-16008 |
| 44410B | Gasket (for pressure supply pipe) | 90430-16242 |
| 44410C | No. 1 pressure supply pipe assembly | 44410-12180 · 44410-12181 · 44410-12200 |
| 44410E | Clamp (for pressure supply tube) | 90460-01001 |
| 44413 | No. 1 pressure supply pipe | 44413-12080 · 44413-12130 |
| 44413A | Hoses (for return pipe outlet) | 44412-12140 |
| 44413B | Hoses (for storage tank inlet) | 44412-12130 |
| 44413C | Clamp (for oil return pipe outlet hose) | 90460-01001 |
| 44413D | Clamp (for oil storage tank inlet hose) | 90460-01001 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-12070 · 44416-12100 |
| 44423F | Joint bolts | 90401-16005 · 90401-16008 |
| 44423G | Joint bolt gasket | 90430-16242 |
| 44443 | pump bracket | 44443-12030 · 44443-12040 |
| 44446 | Adjust the stand | 44446-12020 |
