Toyota COROLLA 变速器油冷却器和配管(ATM) — Figure 3514

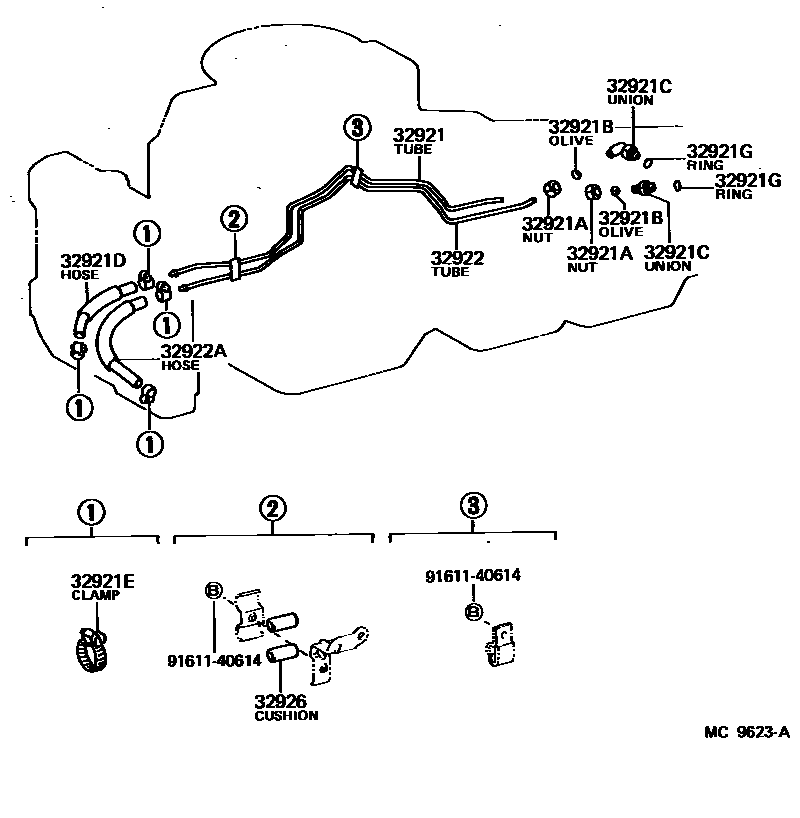

Toyota COROLLA EPC diagram 3514, 变速器油冷却器和配管(ATM), with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-12190 · 32921-12340 |
| 32921A | Union nut (for transmission oil cooler tube) | 90402-13041 |
| 32921B | Olive-shaped piece (for transmission oil cooler pipe) | 96395-71400 |
| 32921C | Fitting (for transmission oil cooler tube) | 90404-13003 · 90407-13005 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-12080 |
| 32921E | Hose clamp (for transmission oil cooler) | 90460-14085 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-10189 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-12180 · 32922-12270 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32942-12090 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30011 |
