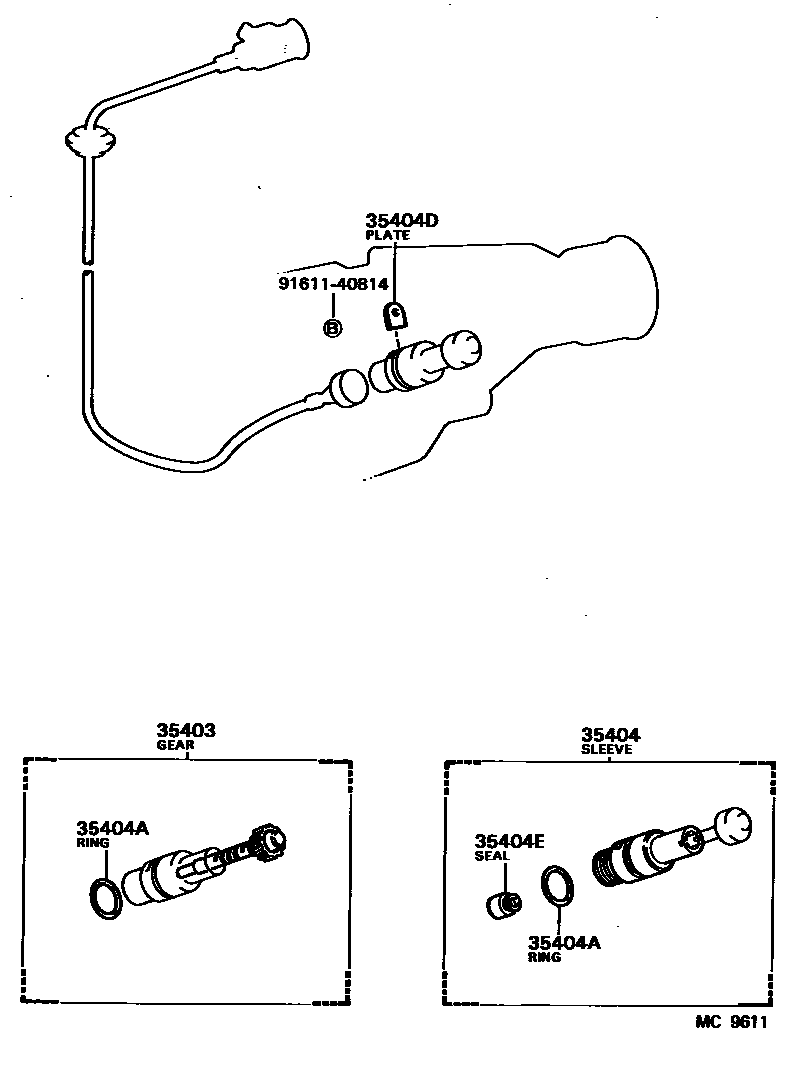

Toyota COROLLA 速度表从动齿轮(ATM) — Figure 3505
Toyota COROLLA EPC diagram 3505, 速度表从动齿轮(ATM), with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35403 | Speedometer driven gear sub-assembly (ATM) | 33482-39015 |
| 35404 | Speedometer shaft sleeve sub-assembly (ATM) | 33404-30040 |
| 35404A | O-ring (for automatic transmission speedometer shaft sleeve) | 90301-18004 · 90301-18018 |
| 35404D | Speedometer sleeve locking plate (ATM) | 33485-30020 |
| 35404E | Oil seal (for automatic transmission speedometer shaft sleeve) | 90310-09001 |
