Toyota COROLLA 换档拨叉和换档杆轴(MTM) — Figure 3307

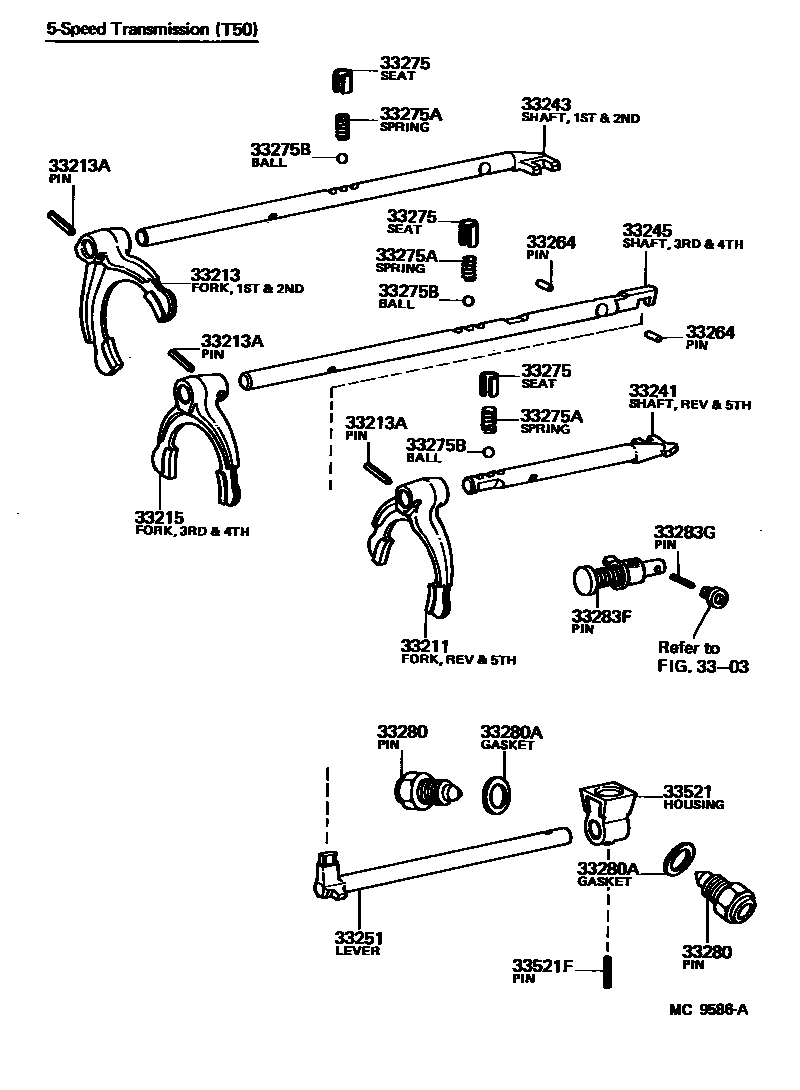

Toyota COROLLA EPC diagram 3307, 换档拨叉和换档杆轴(MTM), with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33211 | Reverse Shift Fork | 33214-14010 |
| 33213 | First and second gear shift forks | 33212-14010 |
| 33213A | Slotted spring pin (for securing shift fork) | 90254-05001 |
| 33215 | Third and fourth gear shift forks | 33213-14010 |
| 33241 | Reverse shift fork shaft | 33244-14050 |
| 33243 | First and second gear shift fork shaft | 33242-14030 |
| 33245 | Third and fourth gear shift fork shaft | 33243-14030 · 33243-14040 |
| 33251 | shift lever | 33251-14010 |
| 33264 | No. 1 shift interlock pin or steel ball | 90250-06188 |
| 33275 | No. 1 shift lock steel ball spring seat | 33275-12010 |
| 33275A | Compression spring (for the lower side of the shift lock steel ball) | 90501-14237 |
| 33275B | Gear shift lock steel ball | 90360-10003 |
| 33280 | Reverse gear positioning pin assembly | 33280-12040 · 33280-12050 |
| 33280A | Reverse gear positioning pin gasket | 90430-22002 |
| 33283F | Reverse gear positioning pin | 33280-20030 |
| 33283G | Slotted spring pin (for reverse gear locating pin) | 90254-05001 |
| 33521 | shift lever housing | 33521-14060 |
| 33521F | Pin or bolt (for shifter housing) | 90254-05001 |
