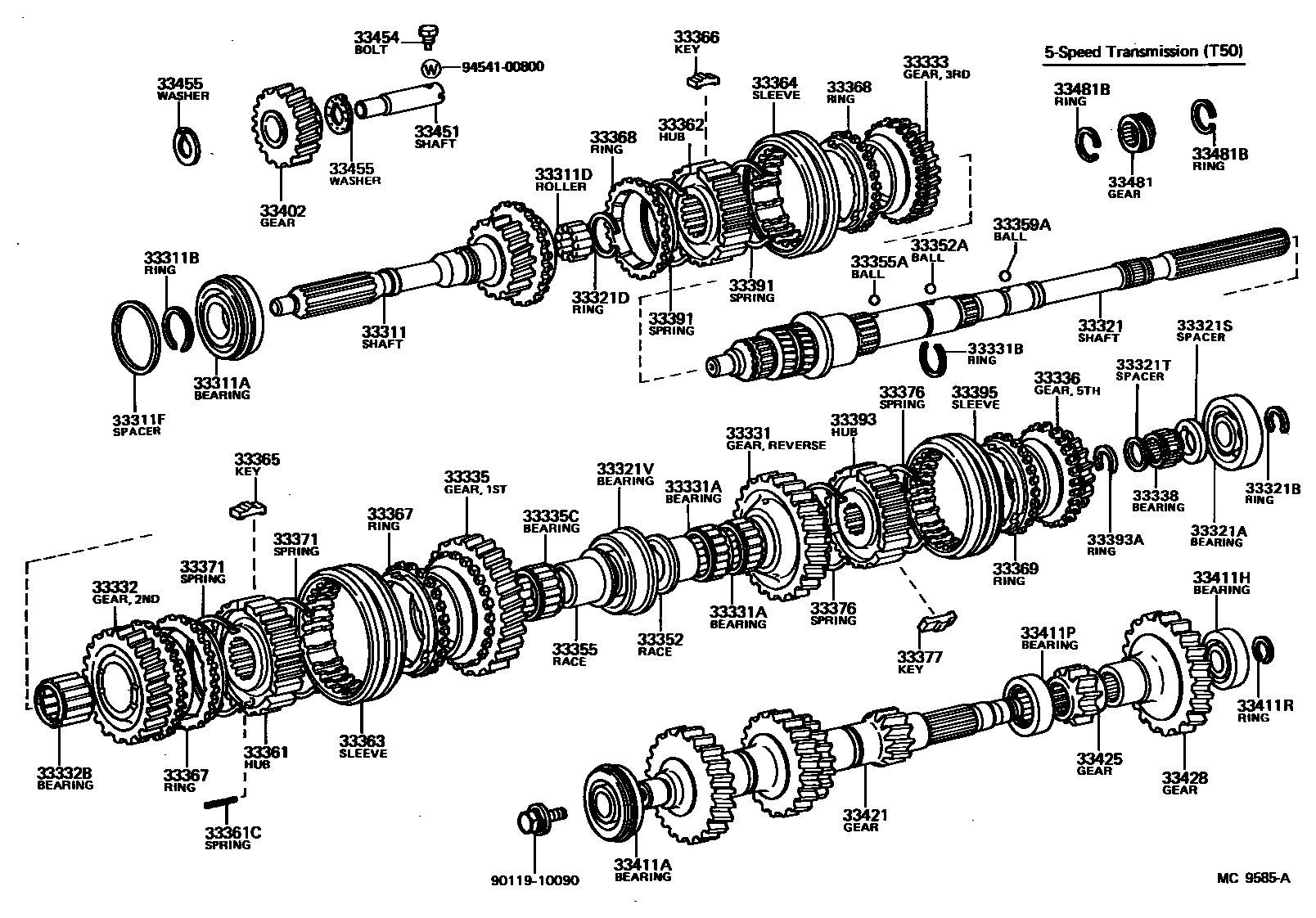

Toyota COROLLA 变速器齿轮(MTM) — Figure 3305
Toyota COROLLA EPC diagram 3305, 变速器齿轮(MTM), with 1 images and 57 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33311 | input shaft | 33301-12010 |
| 33311A | Bearing (for front input shaft) | 90365-30020 |
| 33311B | Shaft snap ring (for front bearing) | 90520-28067 · 90520-28068 · 90520-28205 · 90520-28206 · 90520-28207 |
| 33311D | Input shaft bearing | 90361-06047 |
| 33311F | Spacer (for input shaft) | 90560-61001 · 90560-61002 · 90560-61003 · 90560-61004 · 90560-61005 · 90560-61006 |
| 33321 | output shaft | 33321-12100 |
| 33321A | Bearings (for rear output shaft) | 90363-25018 |
| 33321B | Shaft snap ring (for output shaft bearing) | 90520-23026 · 90520-23027 · 90520-23028 · 90520-23029 · 90520-23030 · 90520-23031 · 90520-23032 |
| 33321D | Shaft snap ring (for clutch hub assembly) | 90520-30200 · 90520-30201 · 90520-30202 · 90520-30203 · 90520-30204 |
| 33321S | Spacer (for gear stop) | 90561-25001 |
| 33321T | Spacer (for output shaft) | 90560-27003 |
| 33321V | Bearings (for center output shaft) | 90369-30027 |
| 33331 | reverse gear | 33331-14013 |
| 33331A | Bearing (for reverse gear) | 90364-37002 |
| 33331B | Locating ring (for reverse gear) | 90520-27003 · 90520-27004 · 90520-27005 · 90520-27006 · 90520-27007 · 90520-27008 · 90520-27009 · 90520-27010 · 90520-27011 · 90520-27012 |
| 33332 | Second gear | 33033-12020 · 33033-12030 |
| 33332B | Needle roller bearing (for second gear gear) | 90364-37004 |
| 33333 | Third gear | 33034-12040 |
| 33335 | first gear | 33032-14011 · 33032-14070 |
| 33335C | Needle roller bearing (for first gear) | 90364-37004 |
| 33336 | fifth gear | 33036-14031 |
| 33338 | Fifth gear bushing or bearing | 90364-27003 |
| 33352 | Reverse gear bearing inner race | 33344-14012 |
| 33352A | Reverse gear bearing inner race locking key or steel ball | 90360-05012 |
| 33355 | First gear bearing inner race | 33345-14011 |
| 33355A | First gear bearing inner race locking key or steel ball | 90360-05012 |
| 33359A | Fifth gear gear bearing inner race locking steel ball | 90360-05012 |
| 33361 | No. 1 transmission clutch hub | 33361-14010 · 33361-14012 |
| 33361C | Compression spring (for clutch hub) | 90501-05773 |
| 33362 | No. 2 transmission clutch hub | 33362-14010 |
| 33363 | No. 1 transmission hub sleeve | 33363-14013 |
| 33364 | No. 2 transmission hub sleeve | 33364-14010 |
| 33365 | No. 1 synchromesh shift key | 33365-14011 |
| 33366 | No. 2 synchromesh shift key | 33366-14010 |
| 33367 | Synchronizer lock ring No. 1 | 33368-12030 · 33368-20012 |
| 33368 | Synchronizer lock ring No. 2 | 33367-14010 |
| 33369 | No. 3 synchronizer lock ring | 33367-14010 |
| 33371 | No. 1 synchromesh shift key spring | 33371-12030 · 33371-14031 |
| 33376 | Synchronizer shift key spring (for No. 3 clutch hub) | 33371-14040 |
| 33377 | Synchronizer shift key (for clutch hub No. 3) | 33394-14011 |
| 33391 | No. 2 synchromesh shift key spring | 33371-14010 |
| 33393 | No. 3 transmission clutch hub | 33393-14020 |
| 33393A | Shaft snap ring (for No. 3 transmission clutch hub) | 90520-24009 · 90520-24010 · 90520-24011 · 90520-24012 · 90520-24013 · 90520-24014 · 90520-24015 · 90520-24016 · 90520-24017 · 90520-24018 · 90520-24019 · 90520-24020 · 90520-24021 · 90520-24022 · 90520-24023 |
| 33395 | No. 3 transmission hub sleeve | 33395-14013 |
| 33402 | Reverse idler gear sub-assembly | 33402-14011 |
| 33411A | Bearing or roller (for front countershaft gear) | 90365-20004 |
| 33411H | Bearing or roller (for countershaft rear gear) | 90365-20001 |
| 33411P | intermediate shaft intermediate bearing | 90365-30015 |
| 33411R | Countershaft gear rear bearing snap ring | 90520-18264 · 90520-18265 · 90520-18266 |
| 33421 | countershaft gear | 33421-14080 |
| 33425 | countershaft reverse gear | 33425-14010 |
| 33428 | Countershaft fifth gear | 33428-14030 |
| 33451 | Reverse gear idler shaft | 33451-14010 |
| 33454 | Shaft fixing bolt | 33454-12010 |
| 33455 | Reverse idler thrust washer | 33455-14010 |
| 33481 | Speedometer driving gear (MTM) | 33481-12030 · 33481-14040 |
| 33481B | Ring or spacer (for MTM speedometer driving gear) | 90520-23025 |
