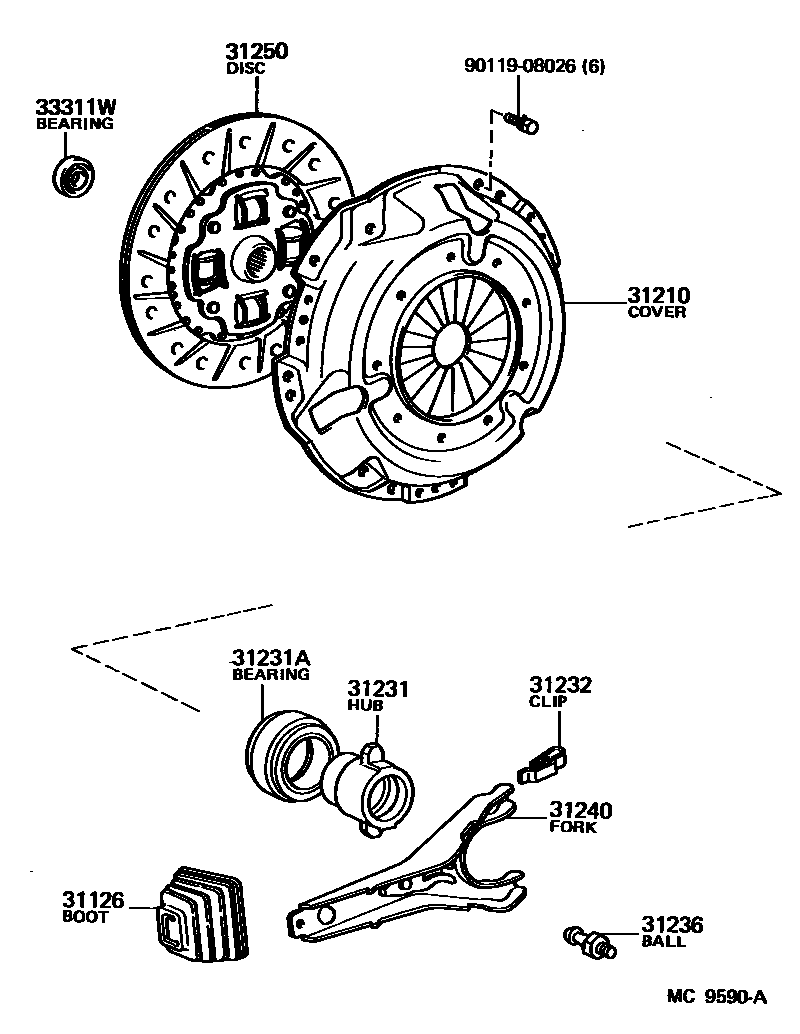

Toyota COROLLA 离合器和分离叉 — Figure 3101
Toyota COROLLA EPC diagram 3101, 离合器和分离叉, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31126 | Clutch release fork dust boot | 31126-20070 |
| 31210 | Clutch cover assembly | 31210-12080 · 31210-12100 · 31210-20200 |
| 31231 | Clutch release bearing hub | 31231-12050 |
| 31231A | Ball bearing (for clutch release hub) | 90363-40022 |
| 31232 | Release bearing hub clip or spring | 31232-22010 |
| 31236 | Breakaway fork steel ball | 31236-30060 |
| 31240 | Clutch release fork assembly | 31204-20080 |
| 31250 | Clutch disc assembly | 31250-12081 · 31250-12182 · 31250-12183 · 31250-12184 |
| 33311W | Bearings (for input shaft) | 90363-12003 |
