Toyota COROLLA 燃油喷射系统 — Figure 2211

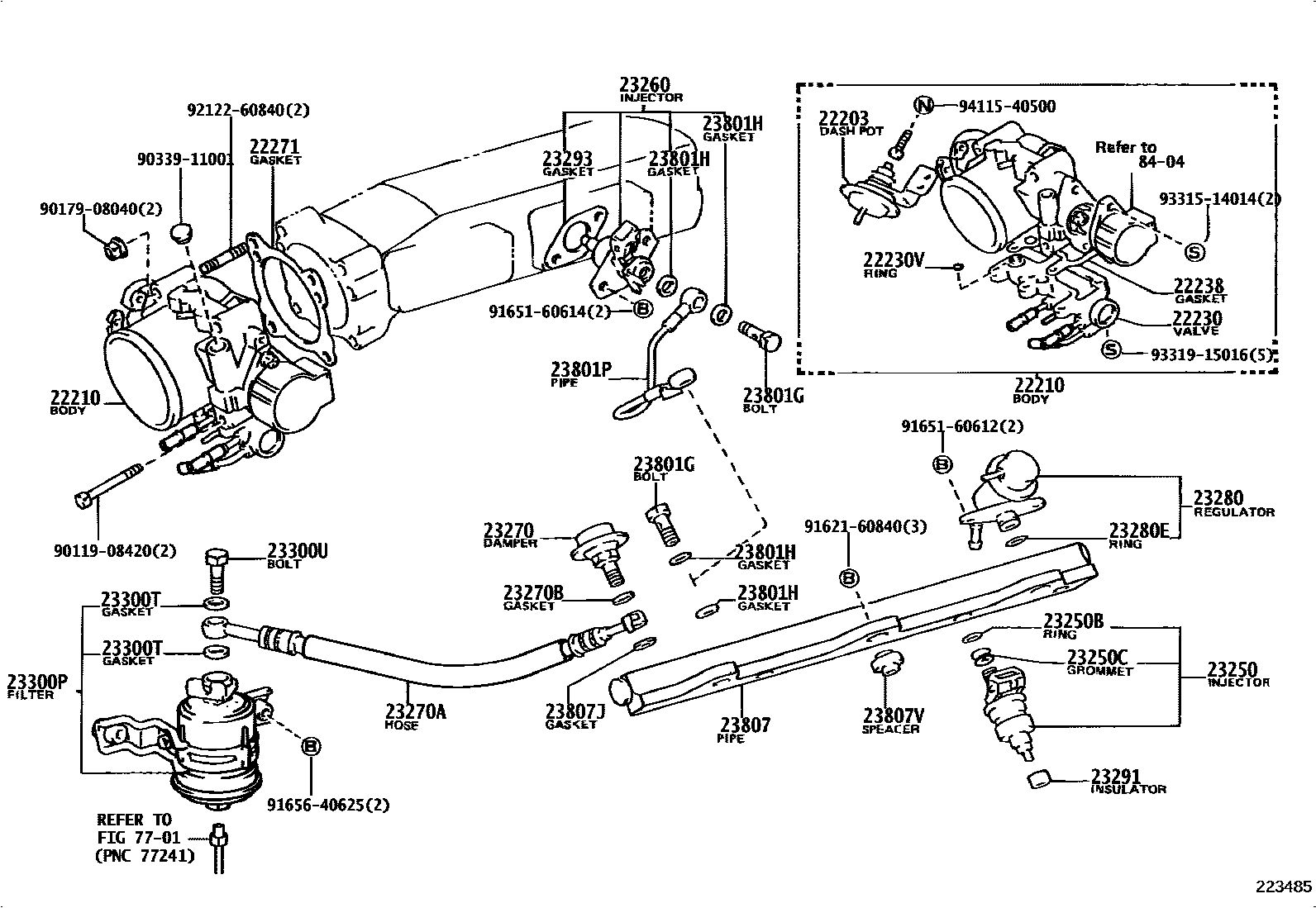

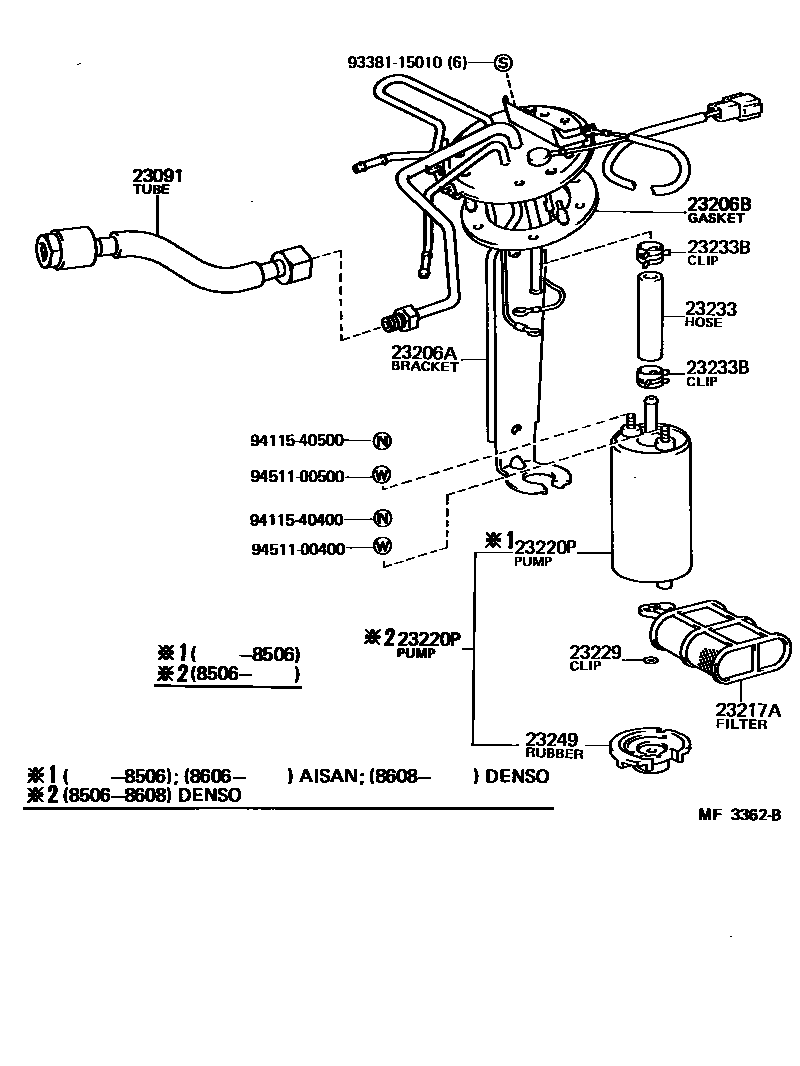

Toyota COROLLA EPC diagram 2211, 燃油喷射系统, with 2 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22203 | Deceleration buffer sub-assembly (for throttle body) | 22203-16010 |
| 22210 | Throttle body assembly | 22210-16080 · 22210-16081 |
| 22230 | Auxiliary air valve assembly | 22230-16020 |
| 22230V | O-ring (for auxiliary air valve) | 96711-19009 |
| 22238 | Auxiliary air valve gasket | 22238-16010 |
| 22271 | Throttle body gasket | 22271-16020 |
| 23091 | Fuel pump pipe sub-assembly | 23091-12010 |
| 23206A | fuel pump bracket | 23206-16170 |
| 23206B | fuel pump bracket gasket | 77178-10010 |
| 23217A | fuel pump filter | 23217-16030 · 23217-16042 · 23217-16043 |
| 23220P | fuel pump assembly | 23220-16070 · 23220-16080 · 23220-16082 · 23220-16083 · 23220-16084 · 23220-16190 · 23220-19015 |
| 23229 | Clip (for fuel pump filter) | 23229-16010 |
| 23233 | fuel pump hose | 23239-16010 |
| 23233B | Clamp (for fuel pump hose) | 90467-13001 |
| 23249 | Rubber gasket (for fuel pump) | 23249-16010 · 23249-43080 |
| 23250 | Fuel injector assembly | 23209-34010 |
| 23250B | O-ring (for fuel injector) | 90301-07001 |
| 23250C | Gasket (for injector) | 90480-13005 |
| 23260 | Cold start injector assembly | 23260-19035 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-16010 · 23207-16020 |
| 23270A | Hoses (for pulsation dampers) | 90923-01321 |
| 23270B | Gasket (for pulsation damper hose) | 23232-28010 |
| 23280 | Fuel pressure regulator assembly | 23280-16020 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07001 |
| 23291 | Injector vibration isolation pad | 23291-41010 |
| 23293 | Cold start injector gasket | 23293-74010 |
| 23300P | Fuel filter (for EFI) | 23300-19085 |
| 23300T | Gasket (for fuel filter) | 90430-12005 |
| 23300U | Connector bolt (for fuel filter) | 90401-12097 |
| 23801G | Connector bolt (for fuel pipe) | 90401-08003 |
| 23801H | Gasket (for fuel lines) | 90430-08005 |
| 23801P | No. 1 fuel pipe sub-assembly | 23901-16030 |
| 23807 | Oil pipe sub-assembly | 23807-16020 · 23807-16030 |
| 23807J | Oil pipe inlet gasket | 90201-12109 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08009 |
