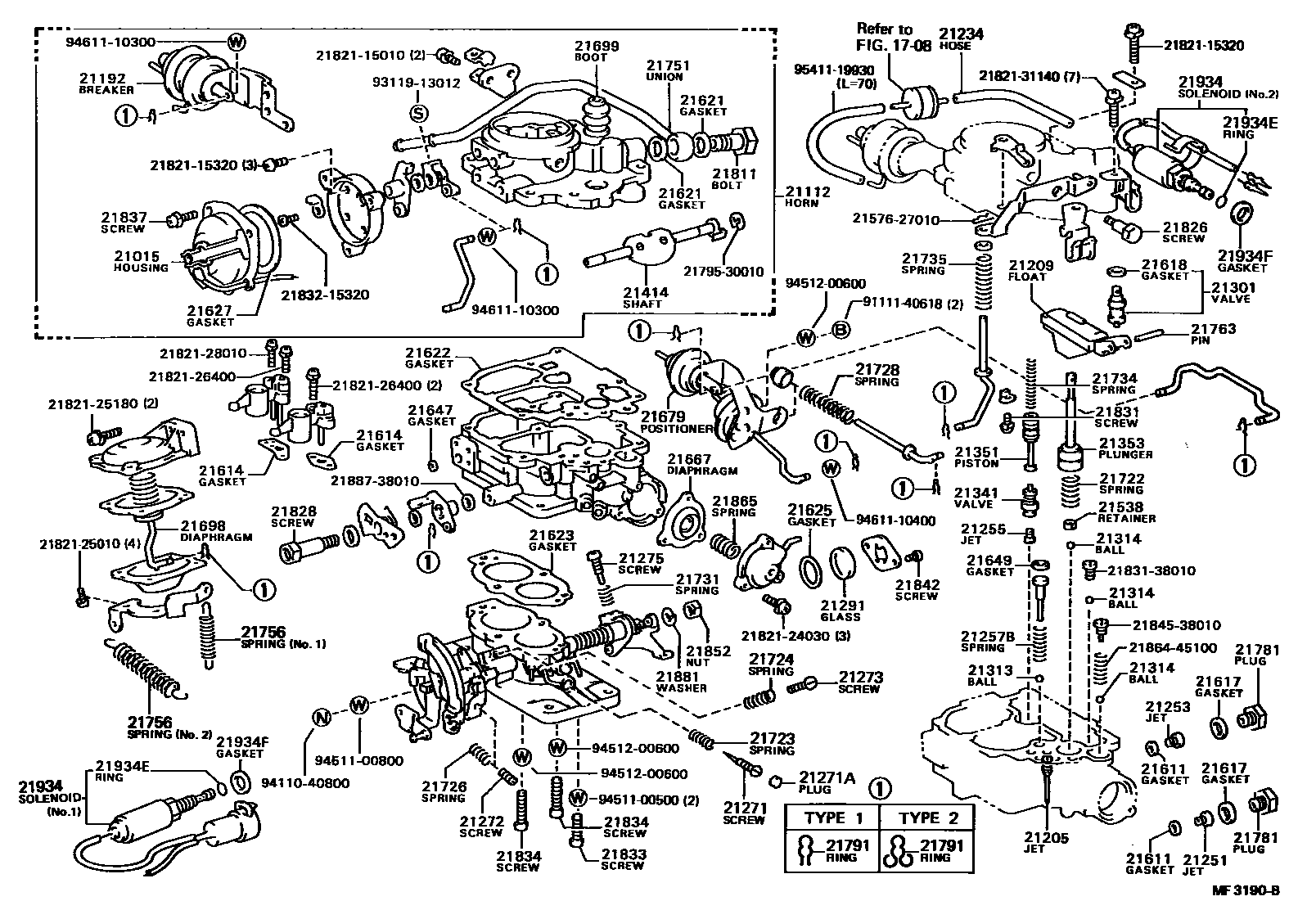

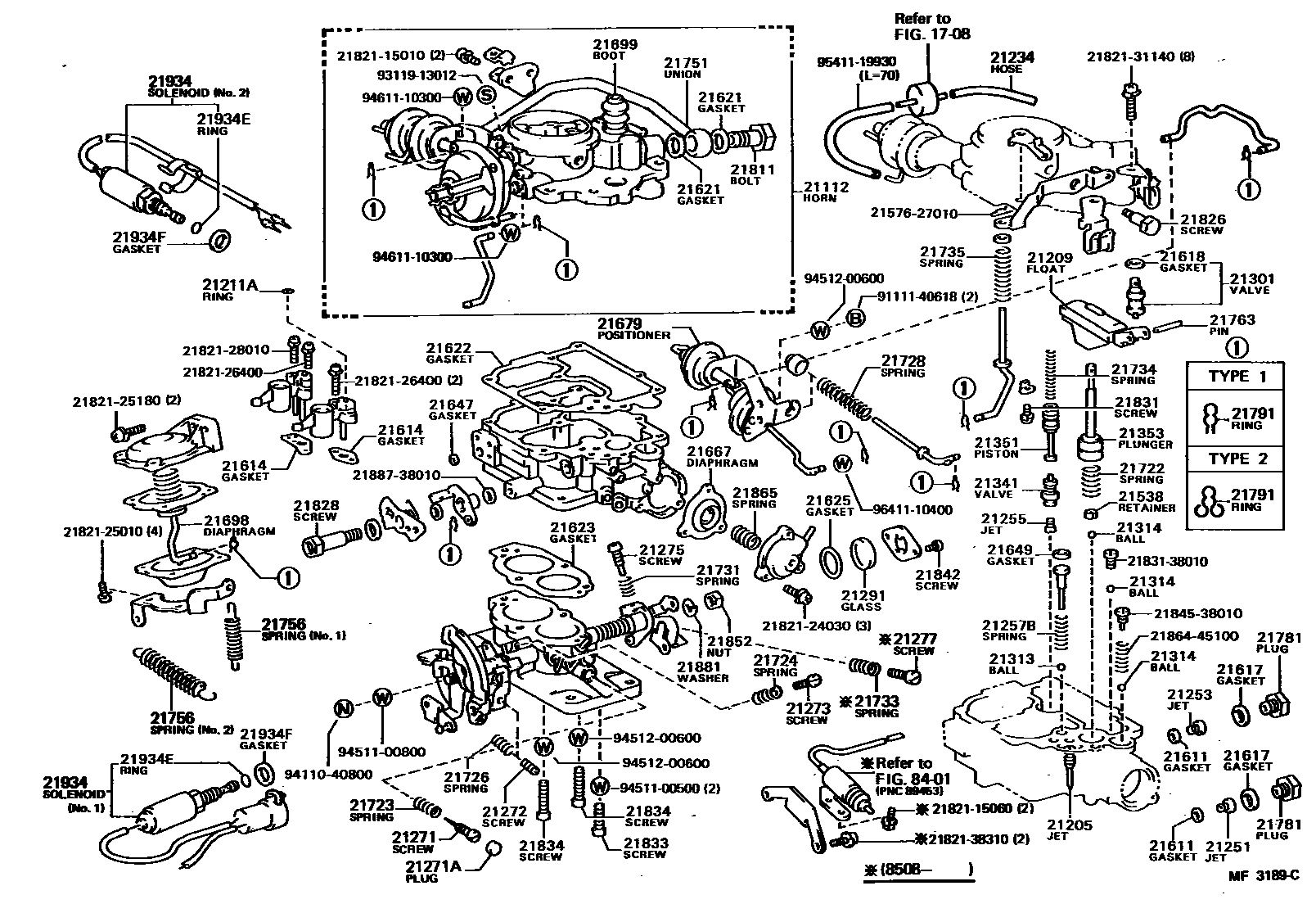

Toyota COROLLA 化油器 — Figure 2103
Toyota COROLLA EPC diagram 2103, 化油器, with 2 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 21015 | Coil housing sub-assembly | 21015-15050 |
| 21112 | Air intake bell mouth | 21112-16150 · 21112-16160 · 21112-16220 |
| 21192 | breaker | 21192-14130 |
| 21205 | Idle speed measuring hole assembly | 21205-15040 · 21205-27040 |
| 21209 | Float sub-assembly | 21209-15020 |
| 21211A | Ring (for small venturis) | 21659-38110 |
| 21234 | pipe or hose | 21249-13090 |
| 21251 | first main measuring hole | 90999-41102 · 90999-41103 |
| 21253 | Deputy main measuring hole | 90999-42153 · 90999-42159 |
| 21255 | Power measuring hole | 90999-43044 · 90999-43065 |
| 21257B | Spring (for accelerating the nozzle) | 21864-26020 |
| 21271 | Idle speed adjustment screw | 21271-15160 |
| 21271A | Idle speed limiter plug | 21785-13210 |
| 21272 | First gear idle speed adjustment screw | 21828-25180 |
| 21273 | Throttle adjustment screw | 21842-28090 · 21844-33010 |
| 21275 | Adjustment screw | 21842-28090 |
| 21277 | Low idle speed adjustment screw | 21844-15230 |
| 21291 | oil level gauge glass | 21291-34320 |
| 21301 | Needle valve sub-assembly | 21301-15160 |
| 21313 | No. 1 steel ball (for oil drain counterweight) | 21313-11020 |
| 21314 | No. 2 steel ball (for pump plunger) | 21314-11020 |
| 21341 | enrichment valve | 21304-30010 |
| 21351 | enrichment piston | 21351-33080 |
| 21353 | pump plunger | 21353-33010 |
| 21414 | choke shaft | 21054-15320 |
| 21538 | One way ball fixing | 21538-31010 |
| 21611 | Main gage hole gasket | 21611-22010 |
| 21614 | Venturi gasket | 21614-33010 · 21614-33080 |
| 21617 | Main oil gallery plug gasket | 21617-30010 |
| 21618 | Needle seat gasket | 21618-14010 |
| 21621 | Oil pipe joint gasket | 21633-24030 |
| 21622 | Air intake bell gasket | 21622-15081 · 21622-15330 |
| 21623 | Body hem pads | 21623-25180 |
| 21625 | oil level gauge gasket | 21655-60200 |
| 21627 | Coil housing gasket | 21627-28090 |
| 21647 | Diaphragm housing cover gasket | 21649-33080 |
| 21649 | Gasket (for pump drain weight stop) | 21641-33011 |
| 21667 | Diaphragm | 21667-38310 · 21667-72080 |
| 21679 | locator | 21679-15301 · 21679-15340 |
| 21698 | Diaphragm | 21669-15320 |
| 21699 | Dust boot (for pump plunger) | 21699-28150 |
| 21722 | Pump damping spring | 21722-22010 |
| 21723 | Idle speed adjustment spring | 21723-15160 |
| 21724 | Throttle valve adjustment spring | 21723-21030 |
| 21726 | First gear idle speed adjustment spring | 21723-21030 |
| 21728 | Throttle return spring | 21756-25181 |
| 21731 | Deceleration buffer or positioner adjustment spring | 21723-21030 |
| 21733 | Low idle adjustment spring | 21723-21030 |
| 21734 | Thickening piston spring | 21734-18010 · 21734-33080 · 21734-33081 |
| 21735 | Pump rod spring | 21735-15270 |
| 21751 | Oil pipe joint | 21894-16010 |
| 21756 | Return spring (for throttle shaft) | 21756-15080 · 21869-16120 |
| 21763 | floating lever pin | 21763-26350 |
| 21781 | Main oil gallery screw plug (for carburetor measuring hole) | 21781-15230 |
| 21791 | No. 1 snap ring (for carburetor connecting rod) | 21791-13010 · 21791-60010 |
| 21811 | Oil pipe joint bolt | 21811-11060 |
| 21826 | Pump rod fixing screw | 21826-31012 |
| 21828 | First gear idle speed fixing screw | 21845-15230 |
| 21831 | Enrichment piston limit screw | 21821-15060 |
| 21833 | No. 1 fixing screw (for carburetor body assembly) | 21833-33010 |
| 21834 | No. 2 fixing screw (for carburetor body assembly) | 21834-31140 · 21844-26400 |
| 21837 | Coil housing fixing screws | 21821-25010 |
| 21842 | Fixing screw (for carburetor oil level gauge clamp assembly) | 21842-33010 |
| 21852 | Throttle lever retaining nut | 21852-30010 |
| 21865 | spring | 21865-15230 |
| 21881 | Lock washer (for throttle shaft) | 21881-60010 |
| 21934 | Throttle solenoid valve | 21062-16010 · 21062-16160 · 21072-16010 · 21072-16160 |
| 21934E | O-ring (for solenoid valve) | 21655-44101 |
| 21934F | padding | 21649-38010 |
