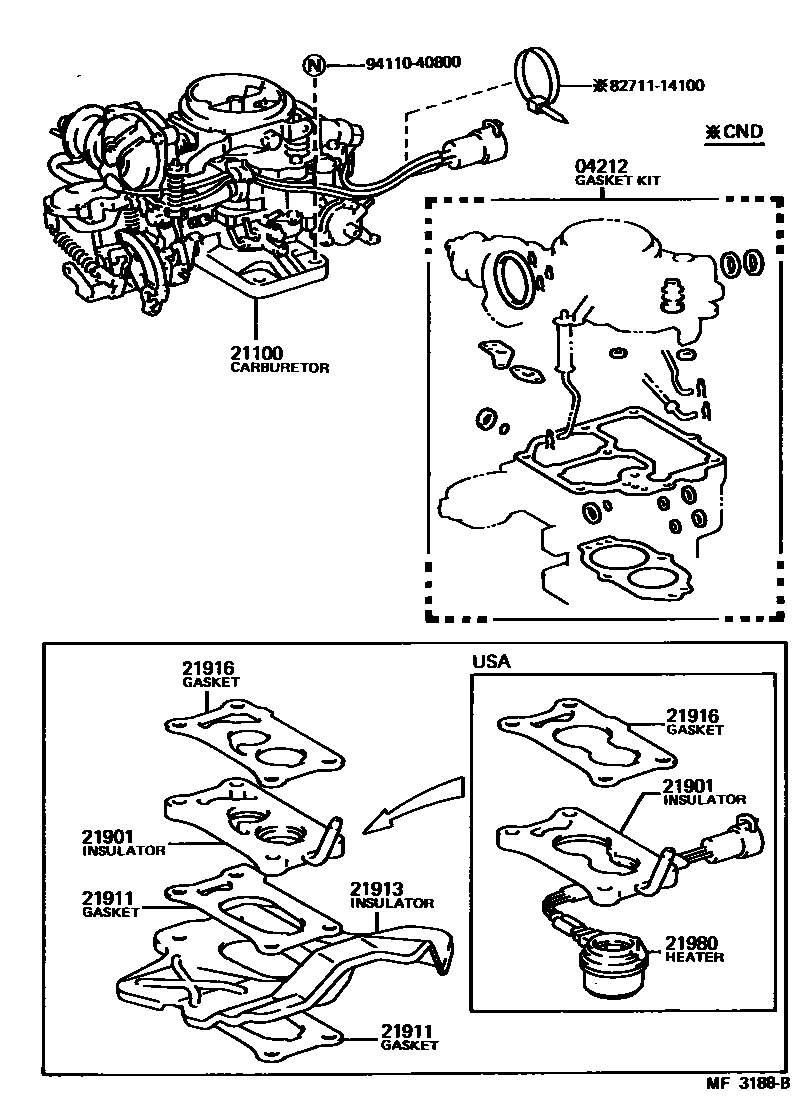

Toyota COROLLA carburetor assembly — Figure 2102
Toyota COROLLA EPC diagram 2102, carburetor assembly, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04212 | carburetor gasket assembly | 04212-15032 · 04212-16030 |
| 21100 | carburetor assembly | 21100-16150 · 21100-16160 · 21100-16220 |
| 21901 | No. 1 carburetor heat insulation pad sub-assembly | 21901-15012 · 21901-15030 |
| 21911 | carburetor gasket | 21916-15030 |
| 21913 | No. 2 carburetor insulation pad | 21913-15030 |
| 21916 | No. 2 carburetor gasket | 21911-15030 · 21914-15020 |
| 21980 | Cold mixture heater assembly | 21980-15020 |
